Oxygen Sensor: Service and Repair
HEATED OXYGEN SENSOR (H02S) REMOVAL / INSTALLATION
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.
NOTE: If necessary, lubricate the H02S with lock lubricant to assist in removal.

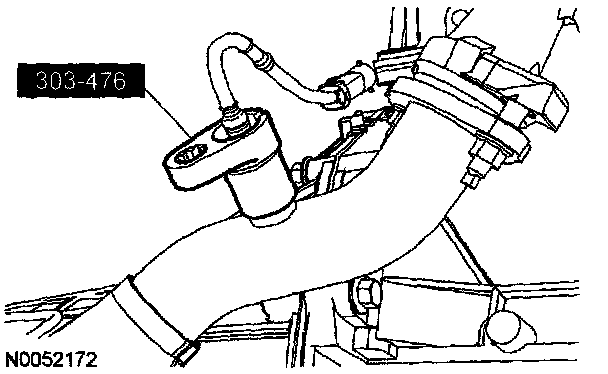

2. Using the Exhaust gas oxygen sensor socket SST, remove the H02S.
Tightening torque:
40 N.m {4.1 kgf.m, 30 ft.lbf}
NOTE: Apply a light coat of anti-seize lubricant to the threads of the H02S.
3. To install, reverse the removal procedure.
