Exhaust Pressure Regulator Vacuum Valve: Service and Repair

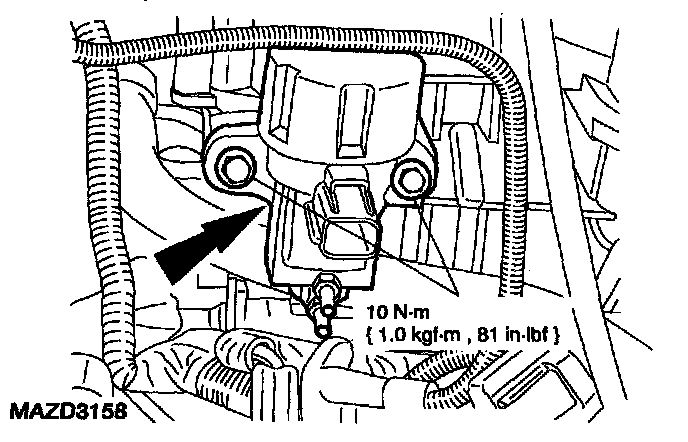

EXHAUST GAS RECIRCULATION (EGR) VACUUM REGULATOR SOLENOID REMOVAL / INSTALLATION - 4.0L 1.
Disconnect the battery ground cable.
2.
Disconnect the electrical connector and the vacuum lines from the exhaust gas recirculation (EGR) vacuum regulator solenoid.
3.
Remove the retaining bolts and the EGR vacuum regulator solenoid.
4.
To install, reverse the removal procedure.
