Ignition Coil Removal/Installation

IGNITION COIL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

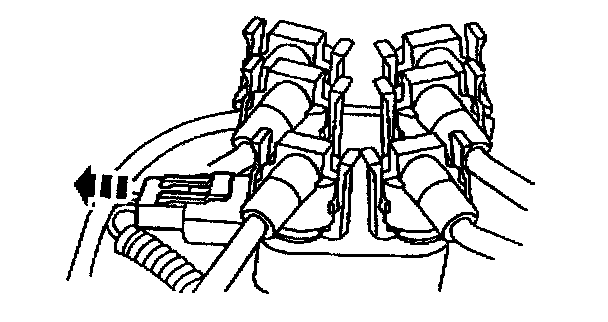

2. Disconnect the ignition coil electrical connectors.

CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

NOTE: Spark plug wires must be connected to the correct ignition coil terminal. Mark spark plug wire locations before removing.

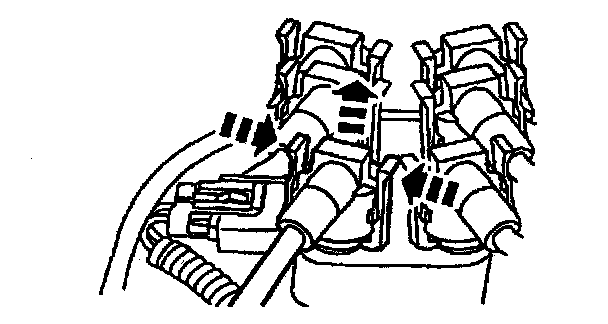

3. Remove the spark plug wires.

NOTE: Wipe the coil towers with a clean cloth dampened with soap and water.

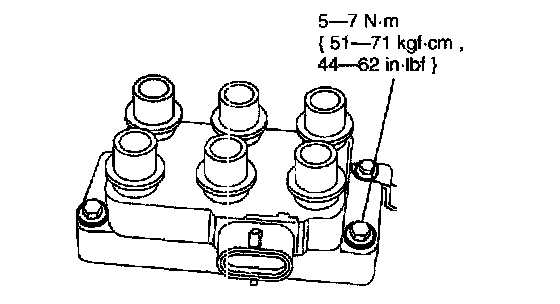

4. Remove the bolts and remove the ignition coil.

NOTE: Apply a silicons dielectric compound to the inside of the spark plug wire coil boots.

NOTE: Be sure to reinstall the radio ignition interference capacitor under the correct ignition coil mounting bolt.

5. Install in reverse order of removal.
