No.4 ABS or TCS*1 Operates Frequently/TCS Does Not Work Correctly *1: DSC System Function Contains Traction Control Function, D

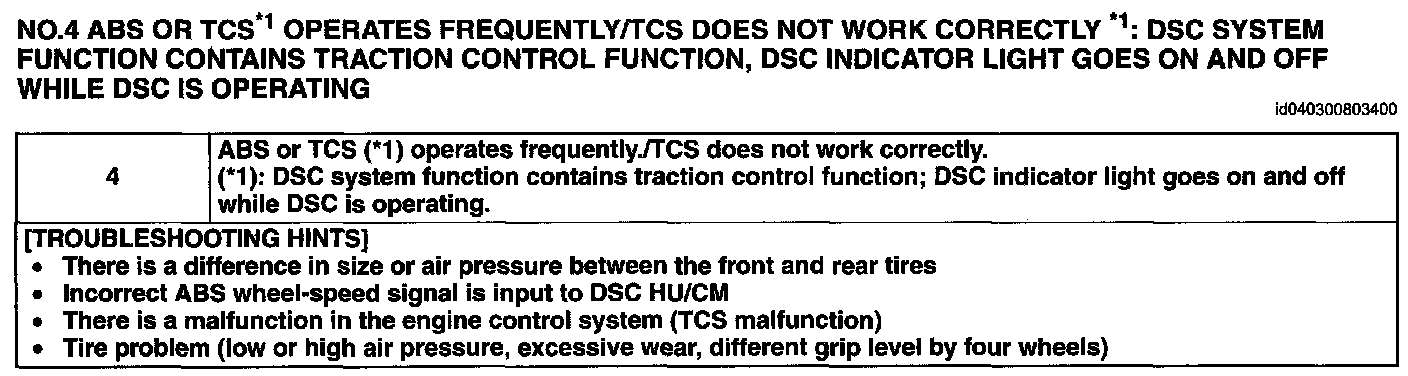

NO.4 ABS OR TCS*1 OPERATES FREQUENTLY/TCS DOES NOT WORK CORRECTLY *1: DSC SYSTEM FUNCTION CONTAINS TRACTION CONTROL FUNCTION, DSC INDICATOR LIGHT GOES ON AND OFF WHILE DSC IS OPERATING

No.4 ABS or TCS*1 Operates Frequently/TCS Does Not Work Correctly *1: DSC System Function Contains Traction Control Function, DSC Indicator Light Goes On And Off While DSC Is Operating:

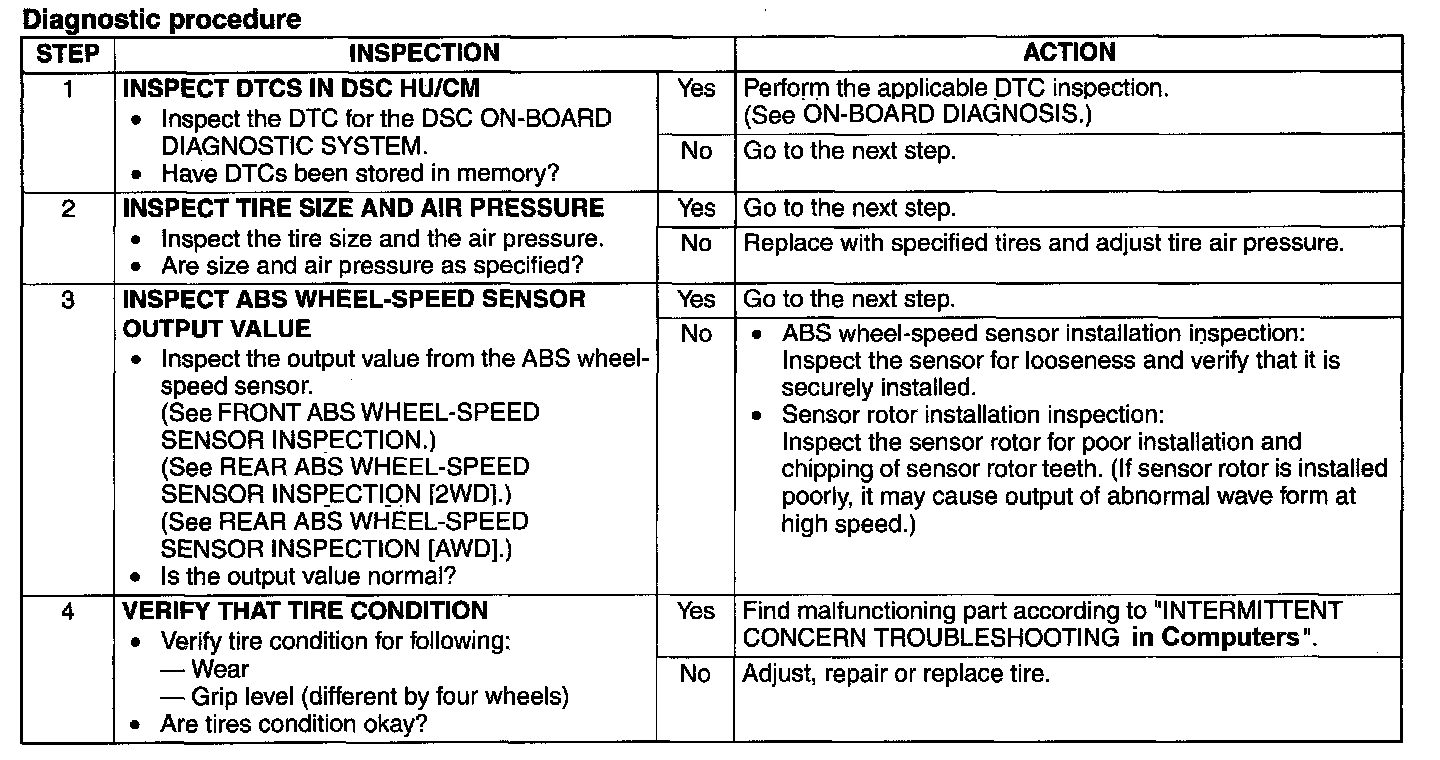

Diagnostic procedure

Step 1-Step 4:
