Rear

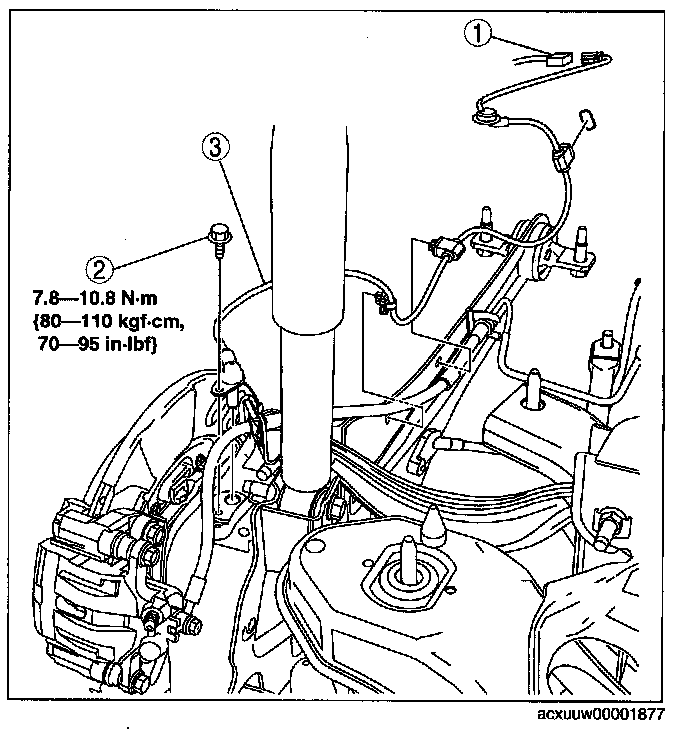

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [AWD] 1.
Remove the rear seat.
2.
Rear scuff plate inner.
3.
Remove the sub trunk box.
4.
Remove the trunk end trim.
5.
Remove the trunk side trim.
6.
Remove in the order indicated in the table.
7.
Install in the reverse order of removal.
