Keyless Control Module Removal/Installation [Advanced Keyless System]

KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]

NOTE: If the keyless control module is replaced, always perform the following procedure.

Without immobilizer system
- Card key programming (See CLEARING CARD KEY [ADVANCED KEYLESS SYSTEM].) Clearing Card Key
- Steering lock unit programming (See STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS SYSTEM].) Steering Lock Unit ID Code Registration

With immobilizer system
- Card key programming (See CLEARING CARD KEY [ADVANCED KEYLESS SYSTEM].) Clearing Card Key
- Steering lock unit programming (See STEERING LOCK UNIT D CODE REGISTRATION [ADVANCED KEYLESS SYSTEM].) Steering Lock Unit ID Code Registration
- Immobilizer system resetting (with immobilizer system)

1. Disconnect the negative battery cable.
2. Remove the front side trim.

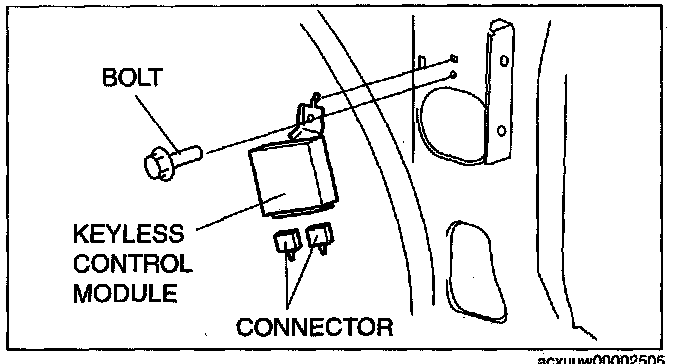

3. Disconnect the keyless control module connector.




4. Remove the bolt, then remove the keyless control module.
5. Install in the reverse order of removal.
