Central Control Module: Testing and Inspection

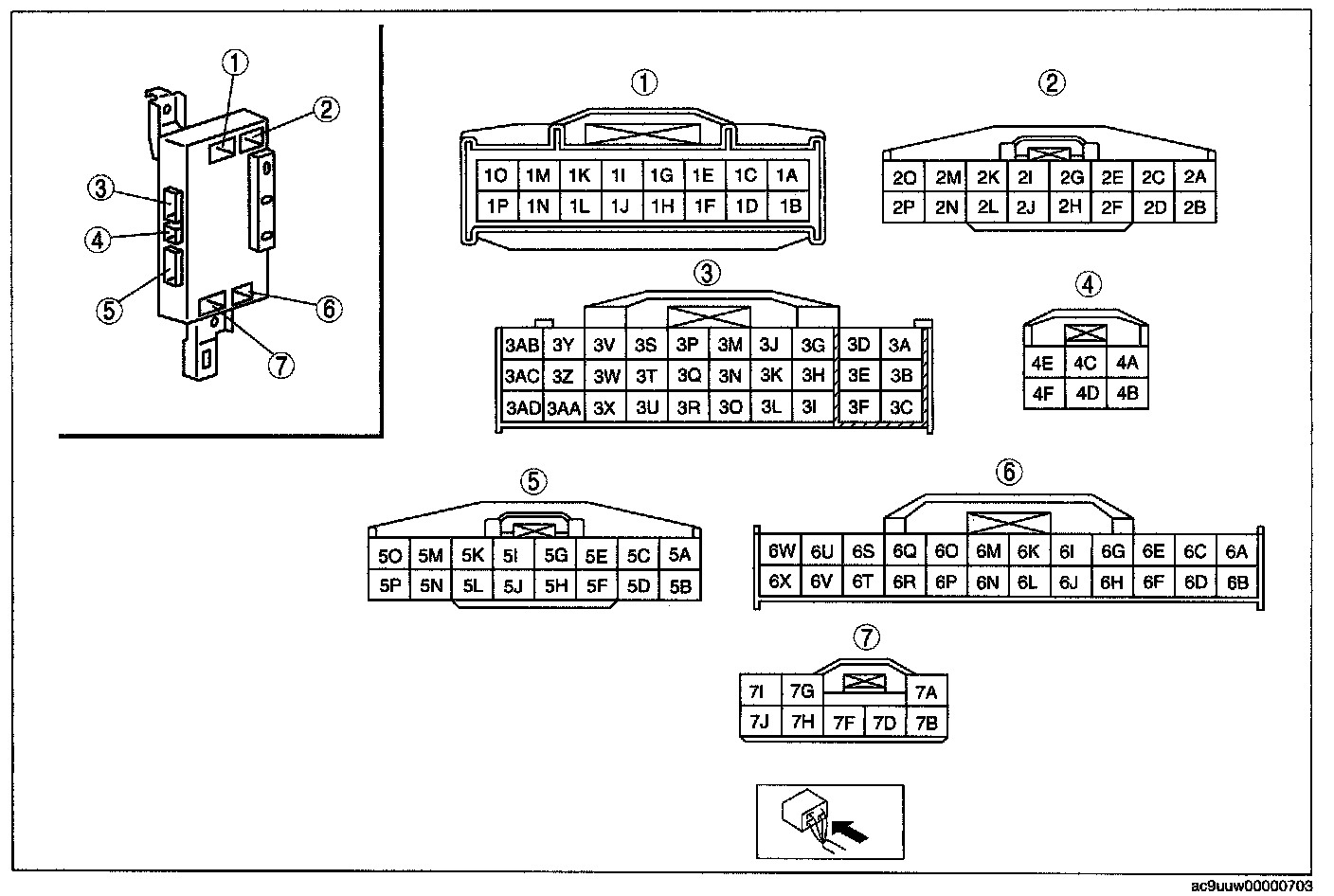

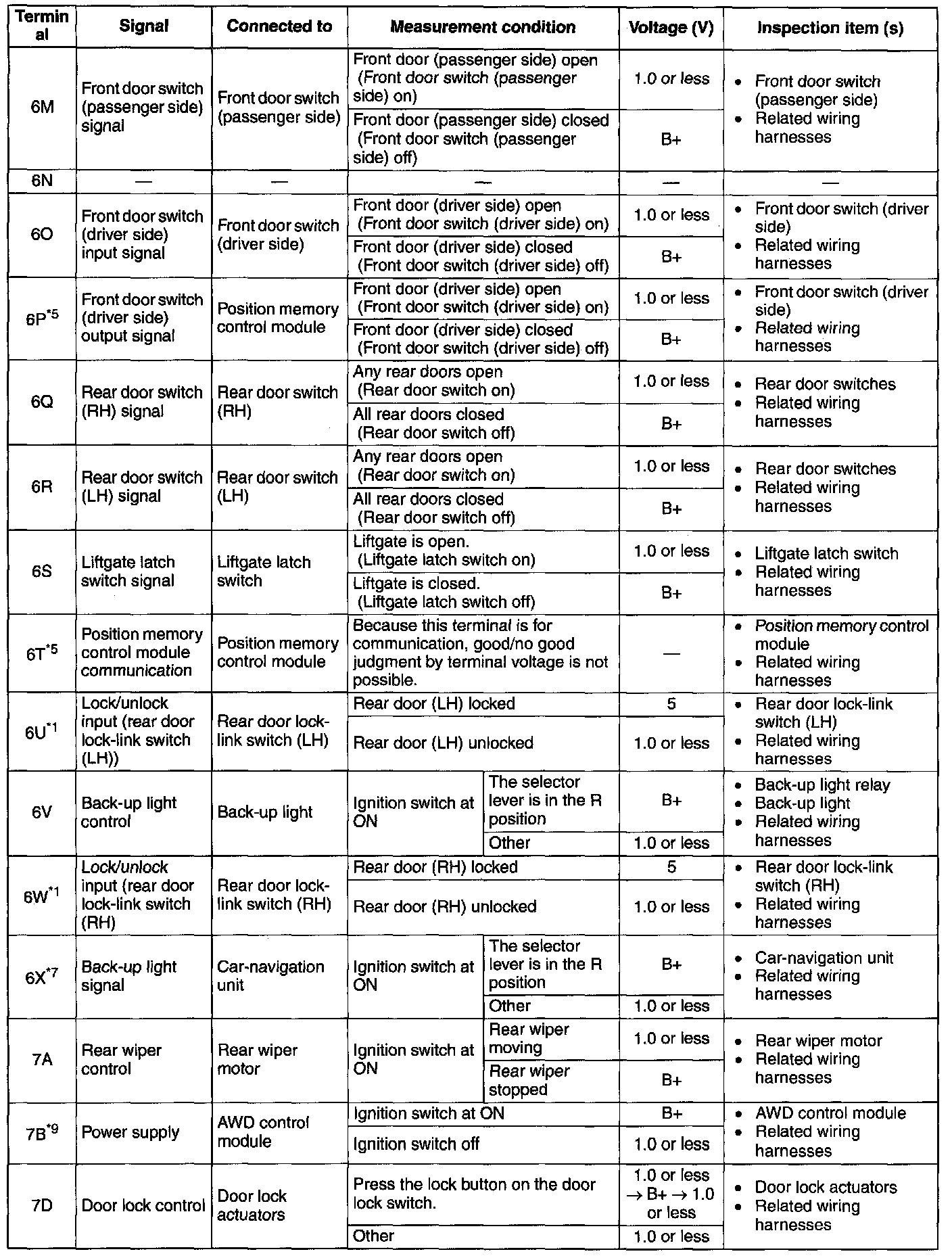

Terminal Voltage Table (Reference):

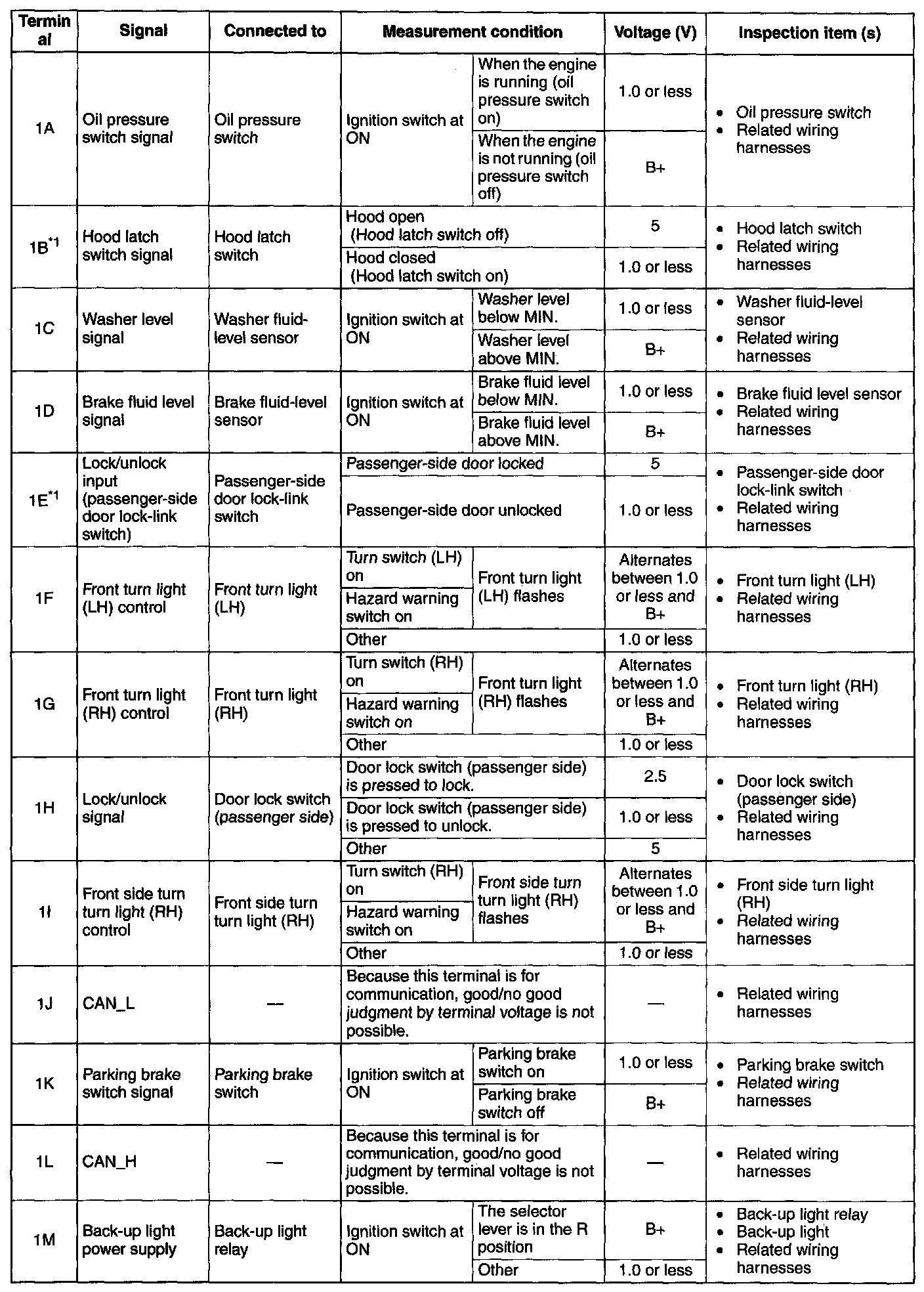

Terminal 1A-1M:

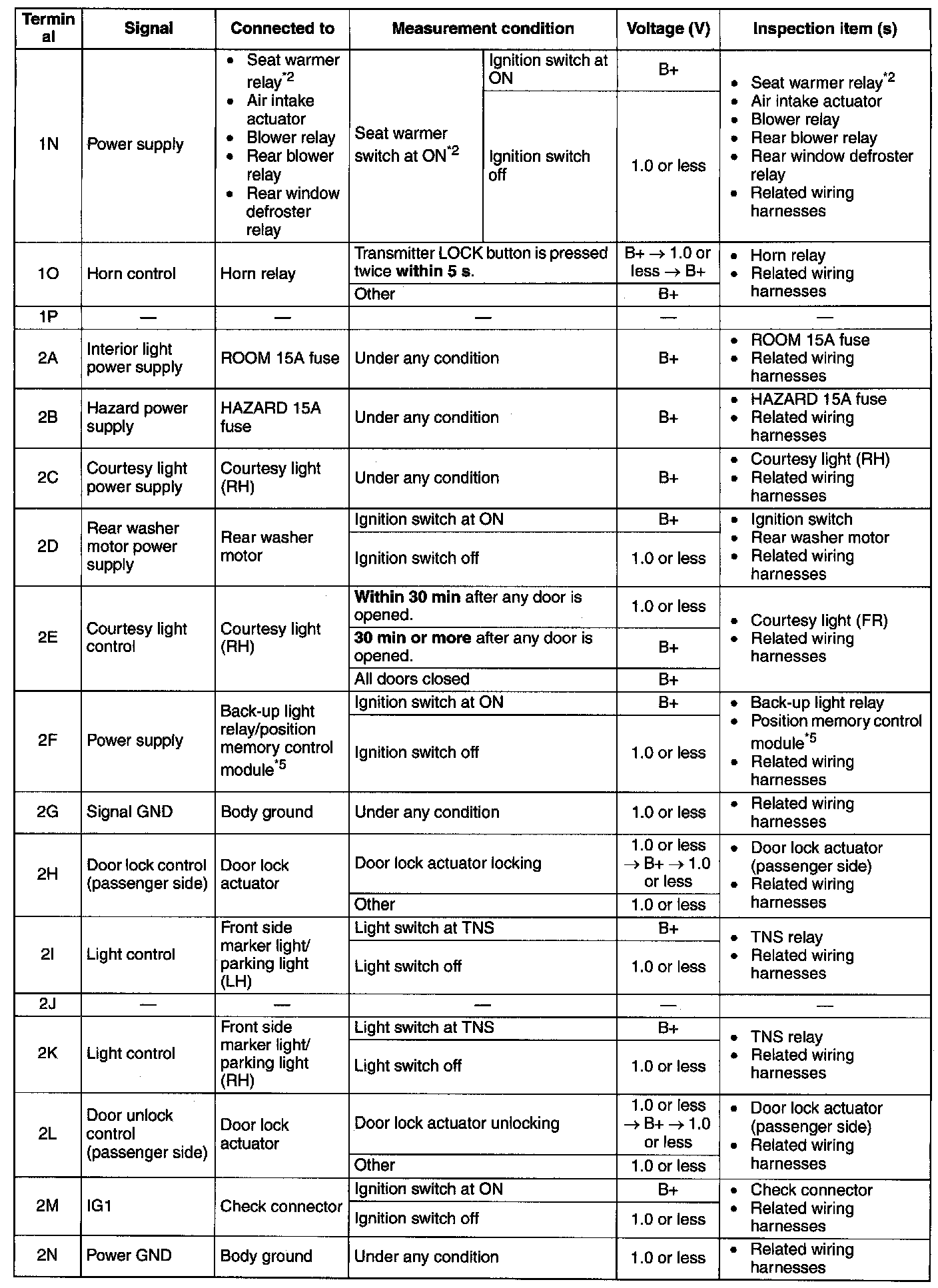

Terminal 1N-2N:

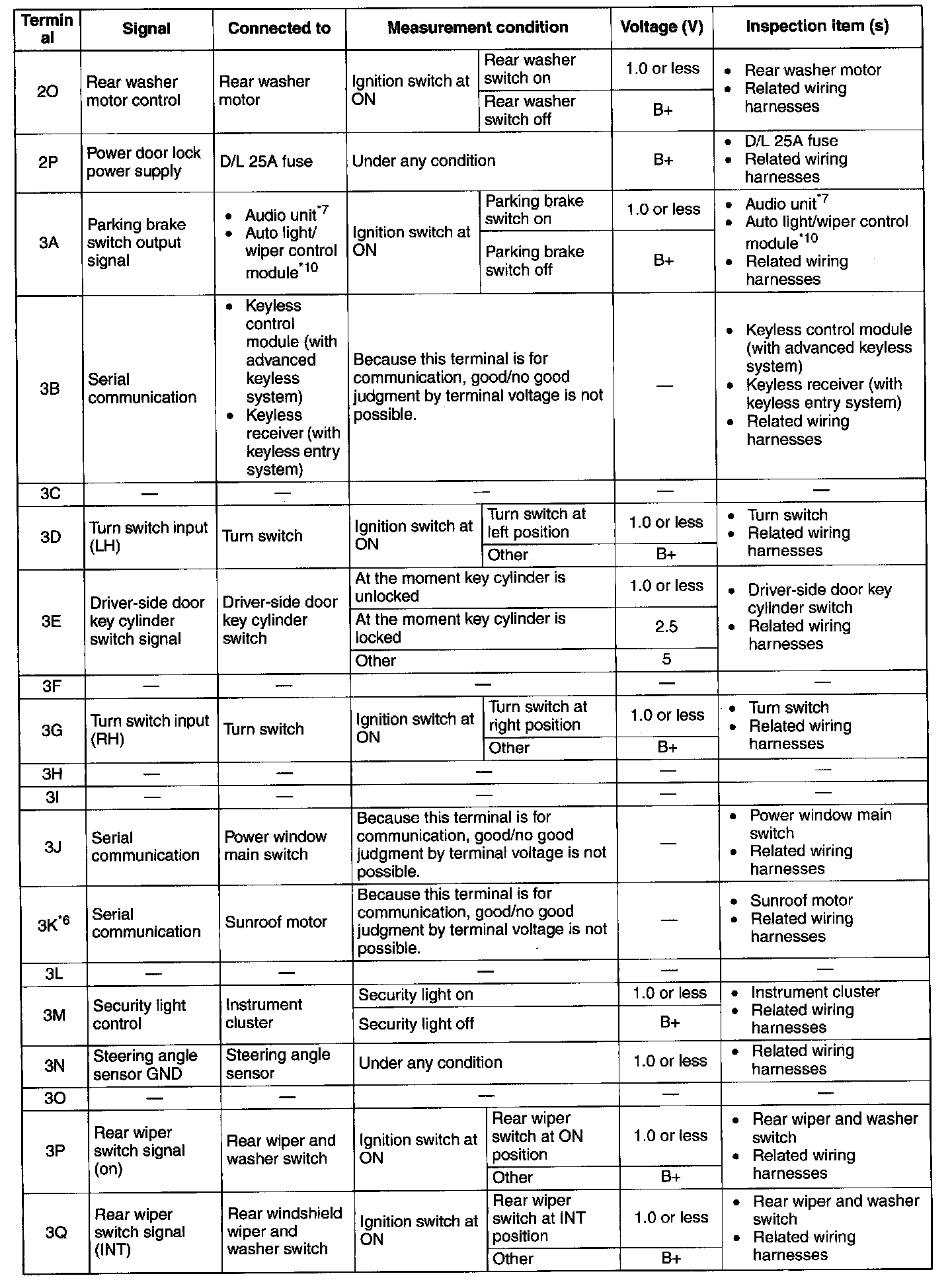

Terminal 2O-3Q:

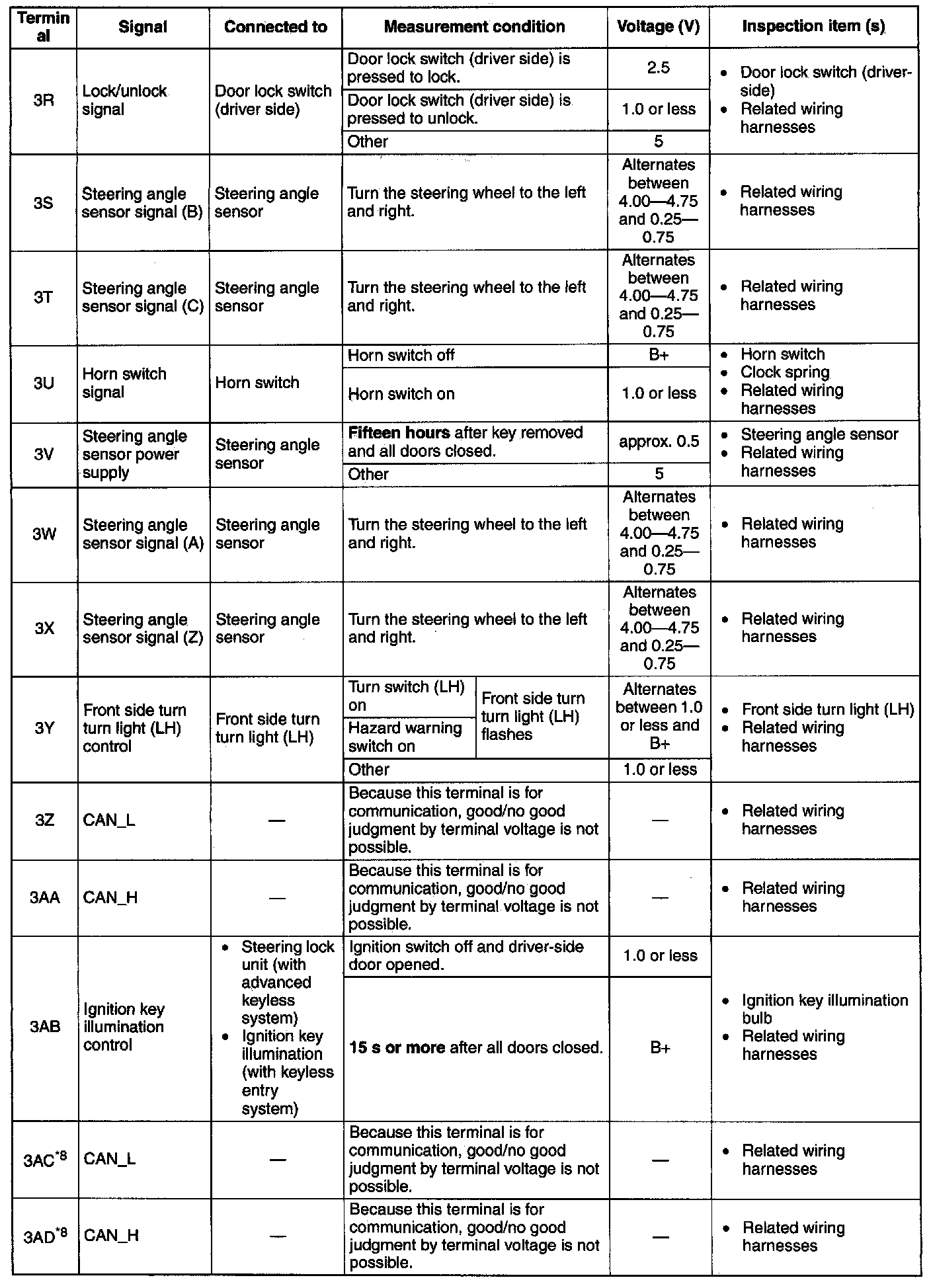

Terminal 3R-3AD:

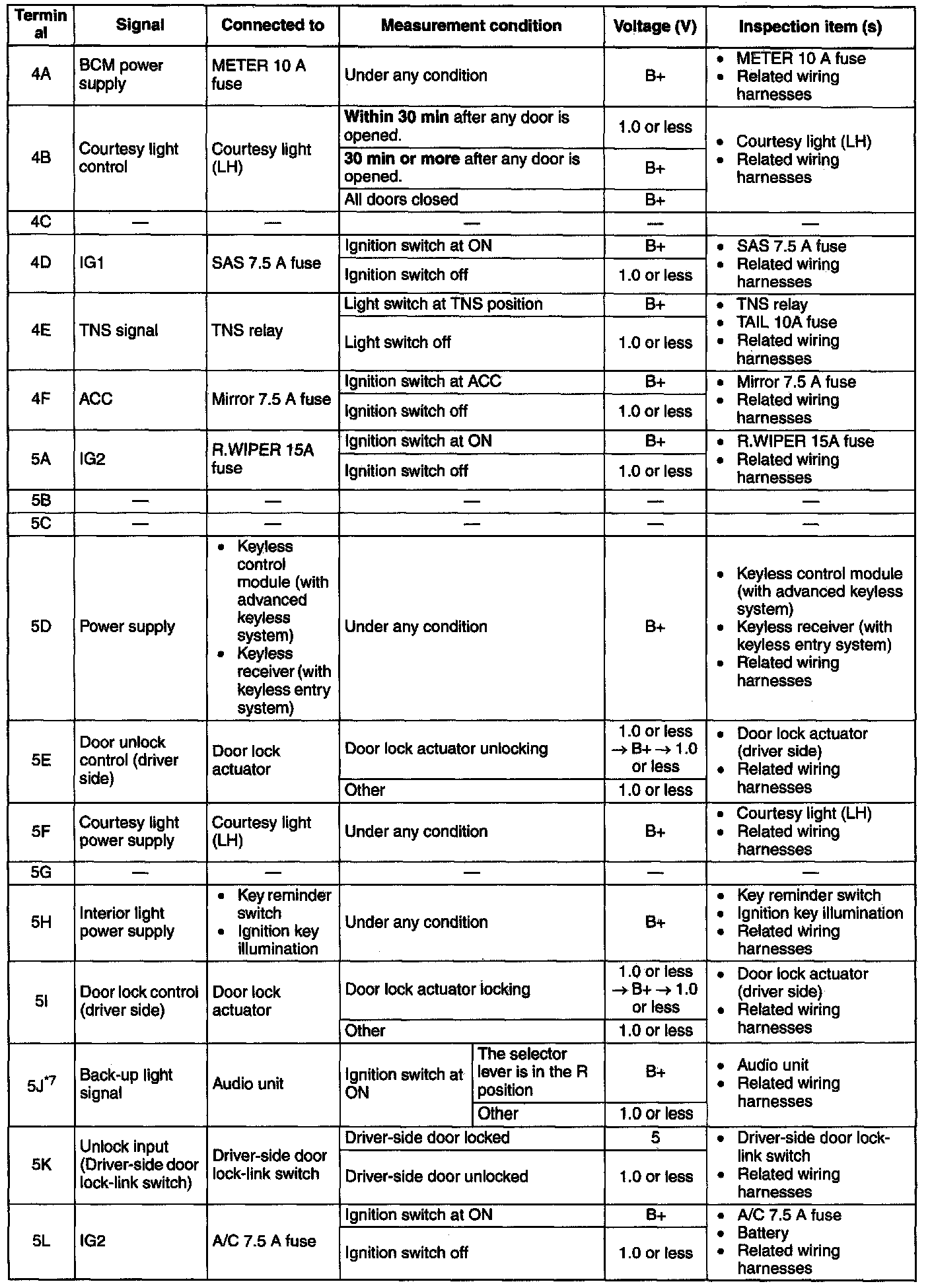

Terminal 4A-5L:

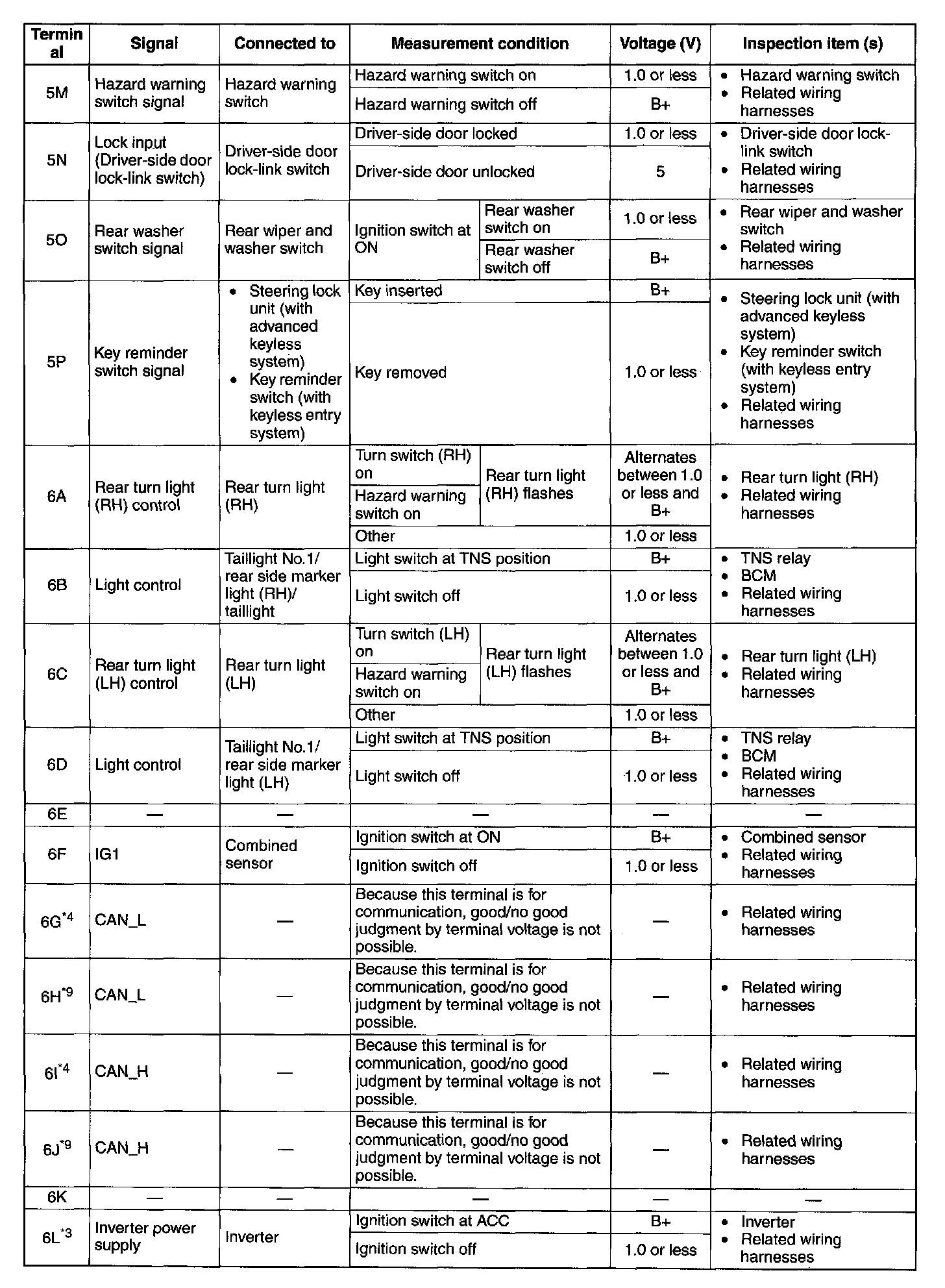

Terminal 5M-6L:



Terminal 6M-7D:

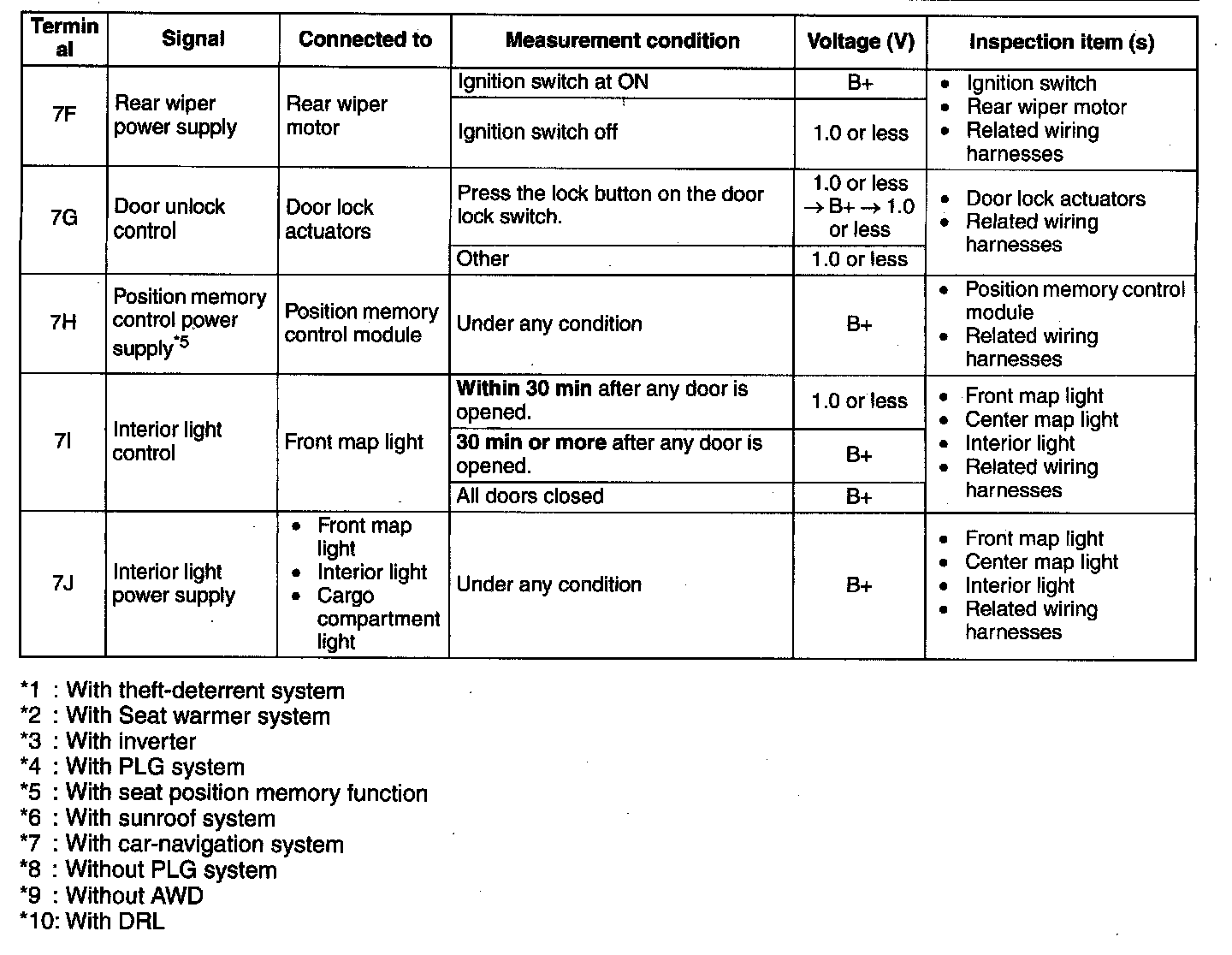

Terminal 7F-7J:
