Navigation Module: Service and Repair
CAR-NAVIGATION UNIT REMOVAL/INSTALLATIONNOTE: Car-navigation unit is located on the right side of the trunk box under the trunk board.
1.
Disconnect the negative battery cable.
2.
Remove the trunk box.
3.

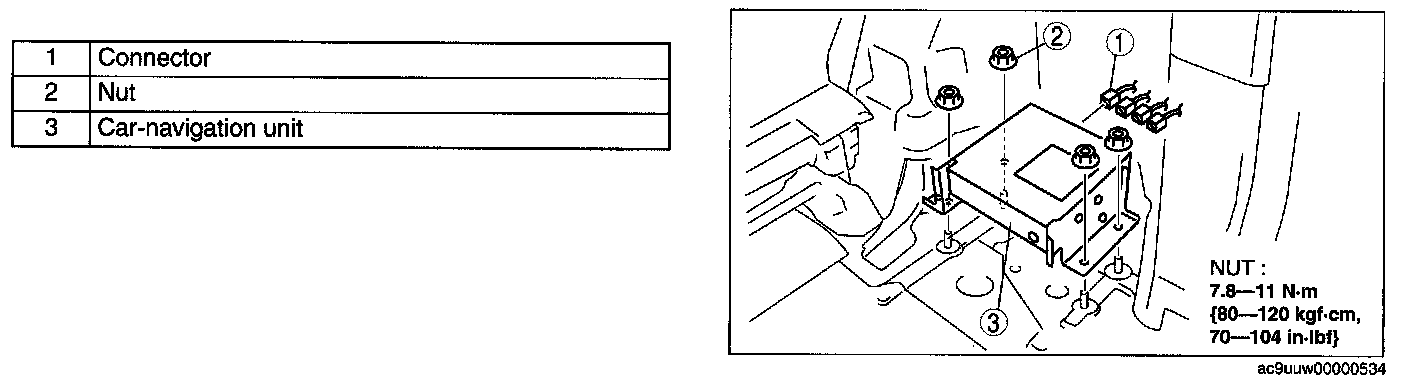

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
