Antenna - Keyless Entry: Service and Repair

KEYLESS ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]

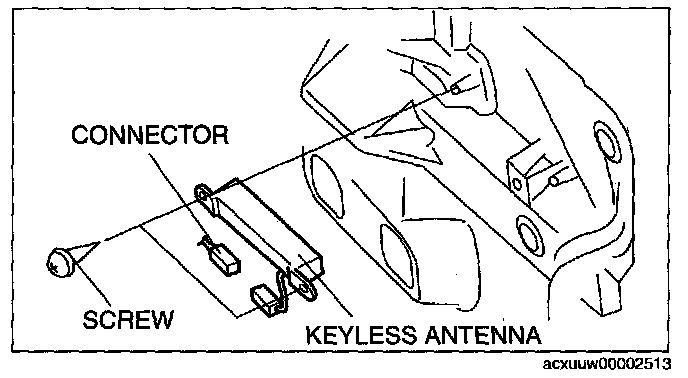

Exterior, LF/RF
1. Disconnect the negative battery cable.
2. Remove the inner garnish.
3. Remove the front door trim.




4. Remove the screws.
5. Disconnect the connector, then remove the keyless antenna.
6. Install in the reverse order of removal.

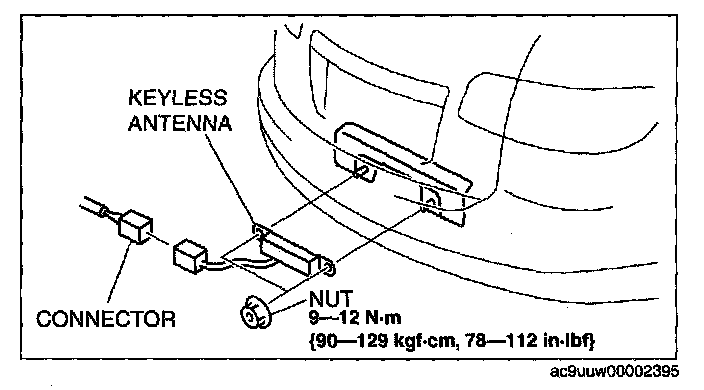

Exterior, Rear
1. Disconnect the negative battery cable.




2. Remove the screws.
3. Disconnect the connector, then remove the keyless antenna.
4. Install in the reverse order of removal.

Interior, Front

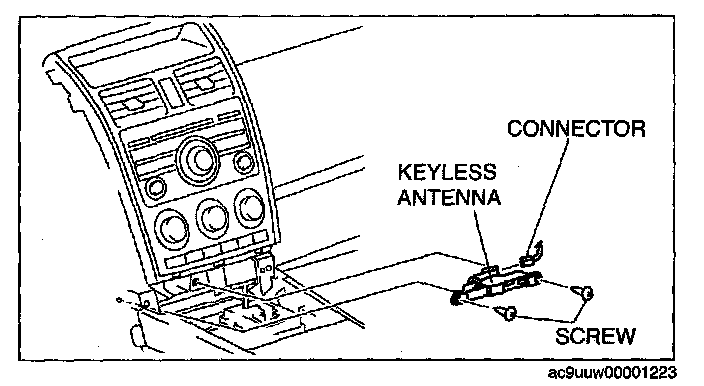

Center
1. Disconnect the negative battery cable.
2. Remove the decoration panel.
3. Remove the front console box mat.
4. Remove the indicator panel.
5. Remove the front console box.




6. Disconnect the connector, then remove the screws.
7. Remove the keyless antenna.
8. Install in the reverse order of removal.

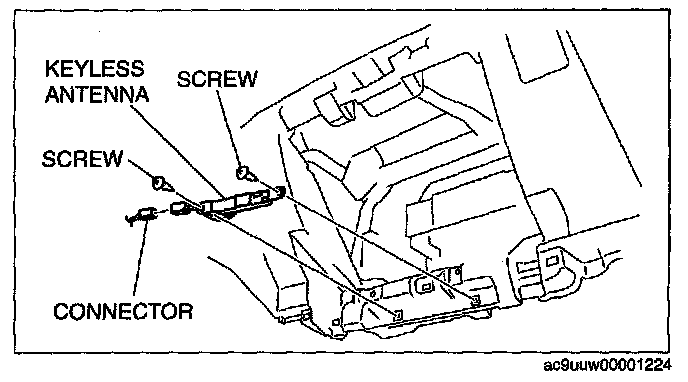

RH
1. Disconnect the negative battery cable.
2. Remove the dashboard under cover (Passenger side).
3. Remove the glove compartment.




4. Disconnect the connector, then remove the screws.
5. Remove the keyless antenna.
6. Install in the reverse order of removal.

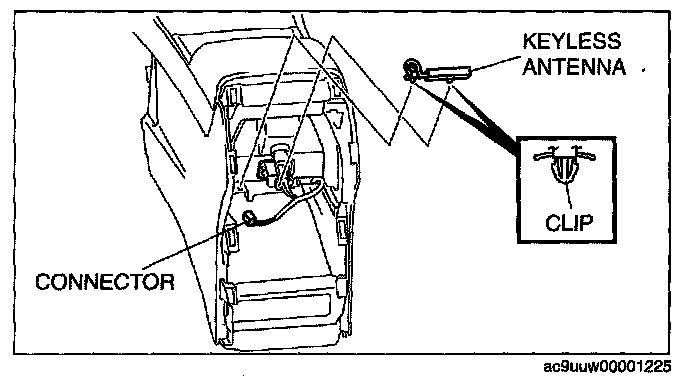

Interior, Middle
1. Disconnect the negative battery cable.
2. Remove the console cover.




3. Remove the clips.
4. Disconnect the connector, then remove the keyless antenna.
5. Install in the reverse order of removal.

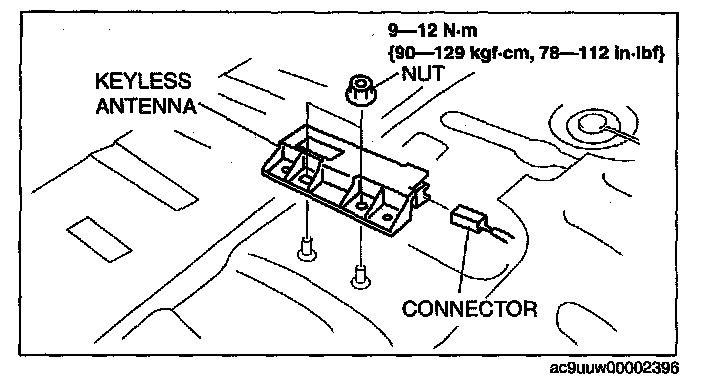

Interior, Rear
1. Disconnect the negative battery cable.
2. Remove the trunk box.
3. Remove the third-row seat.
4. Partially peel back the floor covering.




5. Remove the nuts.
6. Disconnect the connector, then remove the keyless antenna.
7. Install in the reverse order of removal.
