Splash Guard: Service and Repair

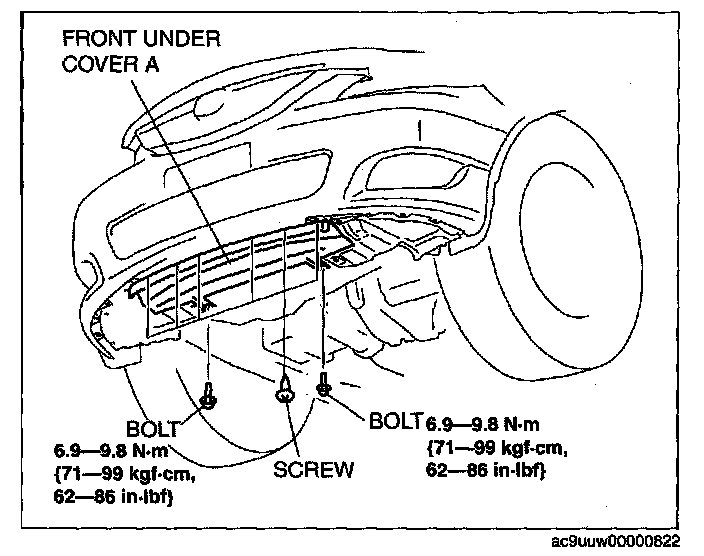

FRONT UNDER COVER REMOVAL/INSTALLATIONFront Under Cover A 1.
Remove the bolts.
2.
Remove the screws.
3.
Remove the front under cover A.
4.
Install in the reverse order of removal.

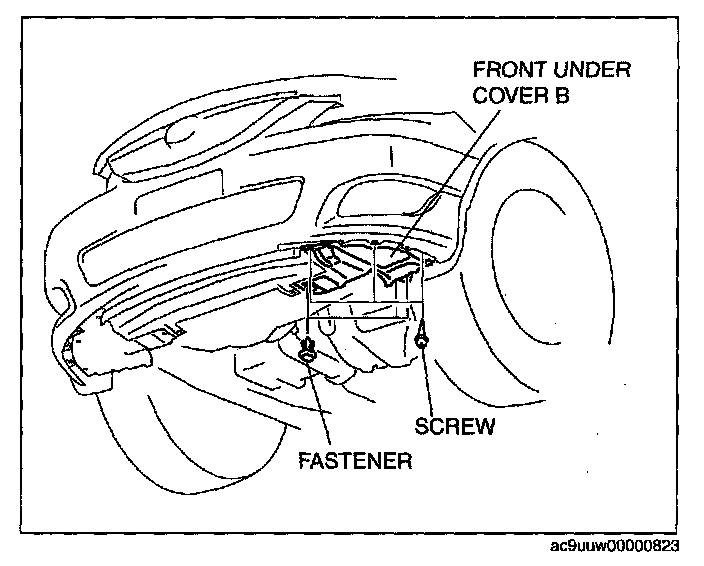

Front Under Cover B 1.
Remove the screws.
2.
Remove the fasteners.
3.
Remove the front under cover B.
4.
Install in the reverse order of removal.
