Compressor Clutch: Service and Repair

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY

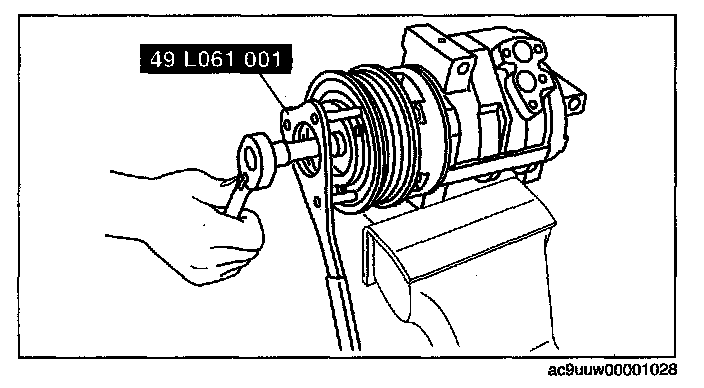

1. Install the SST (49 LQ61 001) or a commercially available filter wrench as shown in the figure and remove the bolt.

When Using SST




When Using Filter Wrench




2. Insert an appropriate bolt into the pressure plate thread hole and tighten it until the pressure plate is removed.

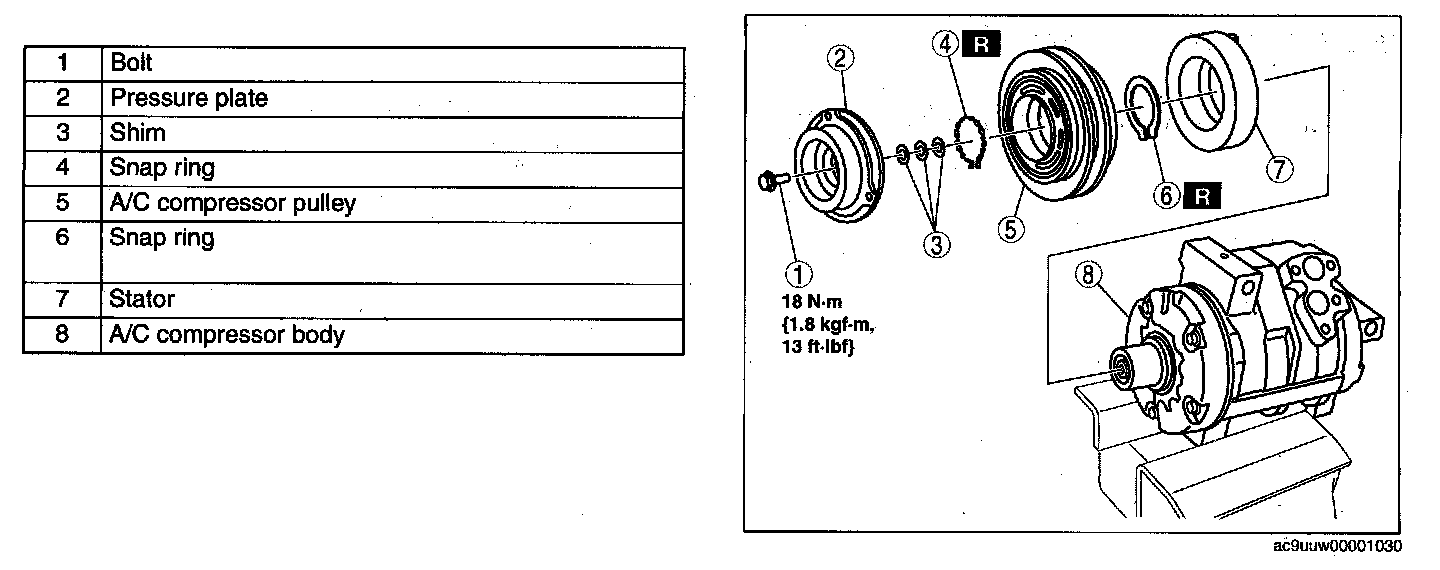

3. Disassemble in the order indicated in the table.






4. Assemble in the reverse order of disassembly.
5. Adjust the magnetic clutch clearance.

Snap Ring Installation Note

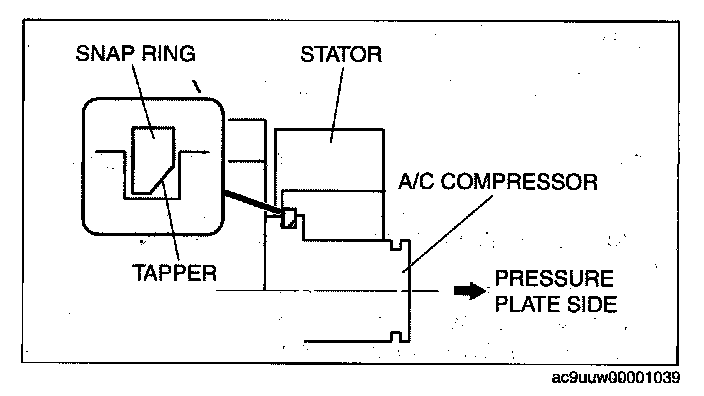

1. Install the snap ring so that the tapered area is on the pressure plate side.
