Power Steering Pressure Switch: Testing and Inspection

POWER STEERING PRESSURE (PSP) SWITCH INSPECTION [MZI-3.7]

Continuity Inspection
1. Disconnect the PSP switch connector.
2. Start the engine.
3. Verify no continuity between the PSP switch terminals while rotating the steering wheel.
- If there is continuity, verify that P/S oil pump is normal and replace the PSP switch. (See POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY.)
- If the monitor item condition/specification (reference) is not within the specification, even though there is no malfunction, perform the "Circuit Open/Short Inspection".

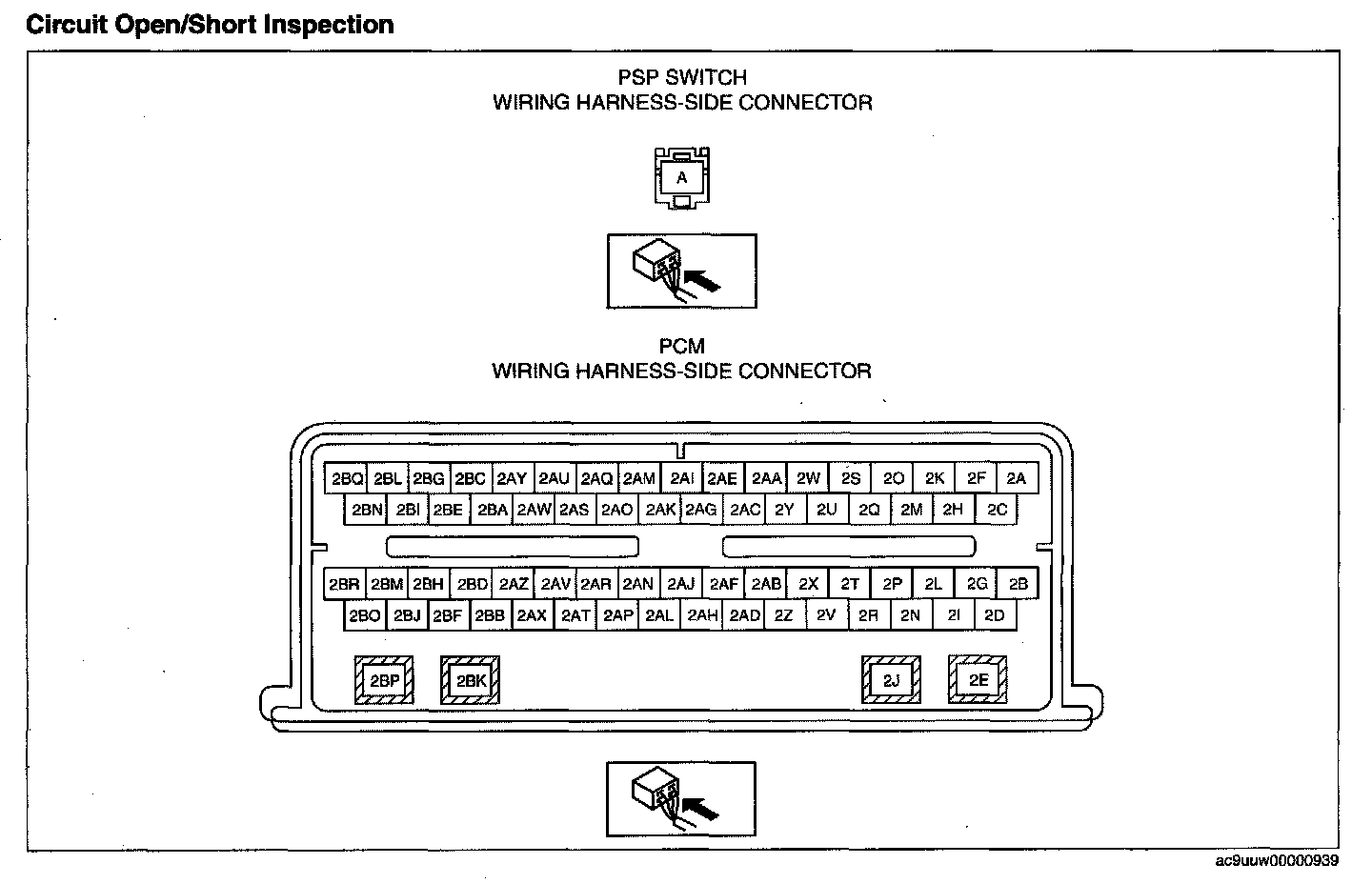

Circuit Open/Short Inspection






1. Disconnect the PCM connector.
2. Inspect the following wiring harness for open or short. (Continuity inspection)

Open circuit
- If there is no continuity, the circuit is open. Repair or replace the wiring harness.
- PSP switch terminal A and PCM terminal 2I

Short circuit
- If there is continuity, the circuit is shorted. Repair or replace the wiring harness.
- PSP switch terminal A and body ground
