Timing Chain Tensioner

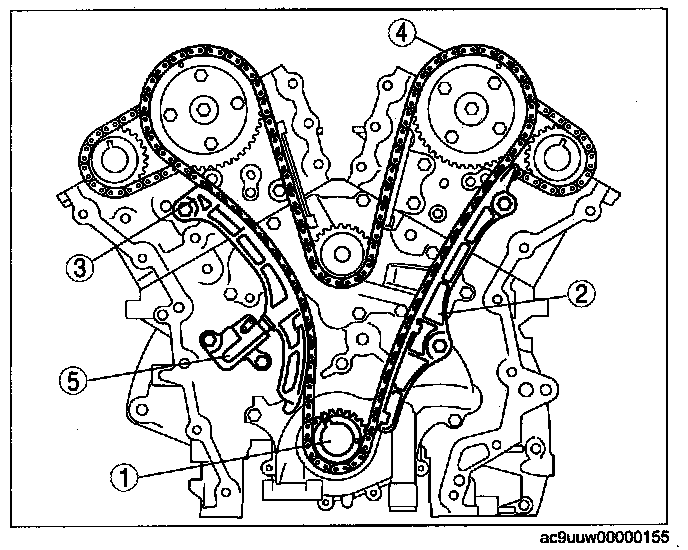

Timing Chain TensionerInstall the timing chain in the following order.
1) Crankshaft sprocket
2) Chain guide
3) Tensioner arm
4) Timing chain
5) Chain tensioner
Tightening torque
8.5-11.5 N-m (87-117 kgf-cm, 76-101 in-lbf)
Install the timing chain in the following order.
1) Crankshaft sprocket
2) Chain guide
3) Tensioner arm
4) Timing chain
5) Chain tensioner
Tightening torque
8.5-11.5 N-m (87-117 kgf-cm, 76-101 in-lbf)
