Timing Cover

Engine Front Cover

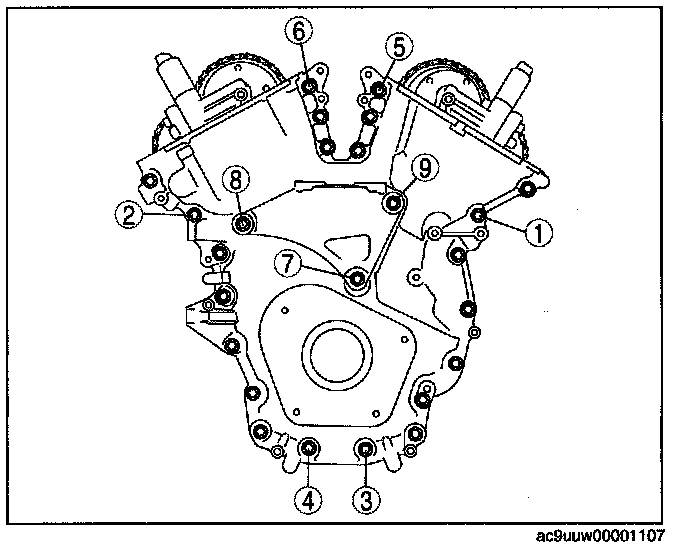

1) Tighten the engine front cover and No.3 engine mount bracket installation bolts in 4 steps in the order shown in the figure.





Tightening torque
Step 1
(Bolts 1-6) Tighten to 10 N-m (102 kgf-cm, 89 in-lbf).
Step 2
(Bolts 7-9) Tighten to 15 N-m (1.5 kgf-m, 11 ft-lbf).
Step 3
(Bolts 1-6) Tighten to 20-28 N-m (2.1-2.8 kgf-m, 15-20 ft-lbf).
Step 4
(Bolts 7-9) Tighten to 70-80 N-m (7.2-8.1 kgf-m, 52-59 ft-lbf).

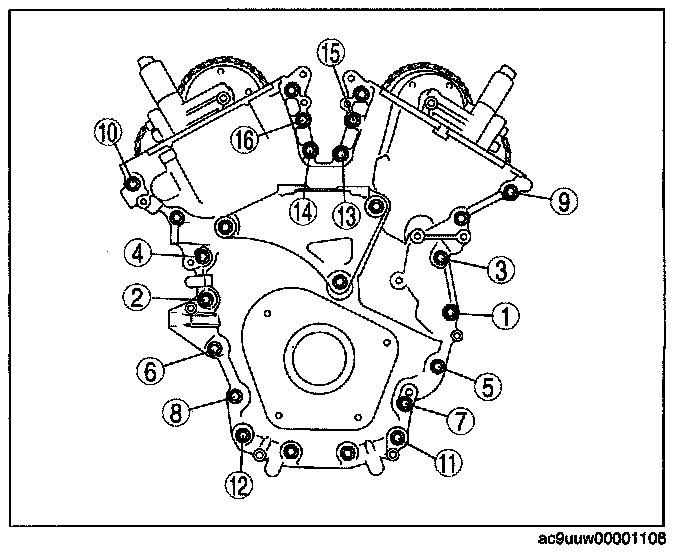

2) Tighten the engine front cover installation bolts in the order in 2 steps in the order shown in the figure.





Tightening torque
1. Tighten to 10 N-m (102 kgf-cm, 89 in-lbf).
2. Tighten to 20-28 N-m (2.1-2.8 kgf-m, 15-20 ft-lbf).
