Engine Disassembly/Assembly
ENGINE DISASSEMBLY/ASSEMBLY [LF] 1.
Remove the transmission from the engine.
2.
Remove the following parts:
1)
The clutch unit (MT)
2)
The ignition coil
3)
The CMP sensor
4)
The power steering oil pump
5)
The fuel distributor and fuel injector
6)
The intake-air system
7)
The
exhaust system 8)
The CKP sensor
3.

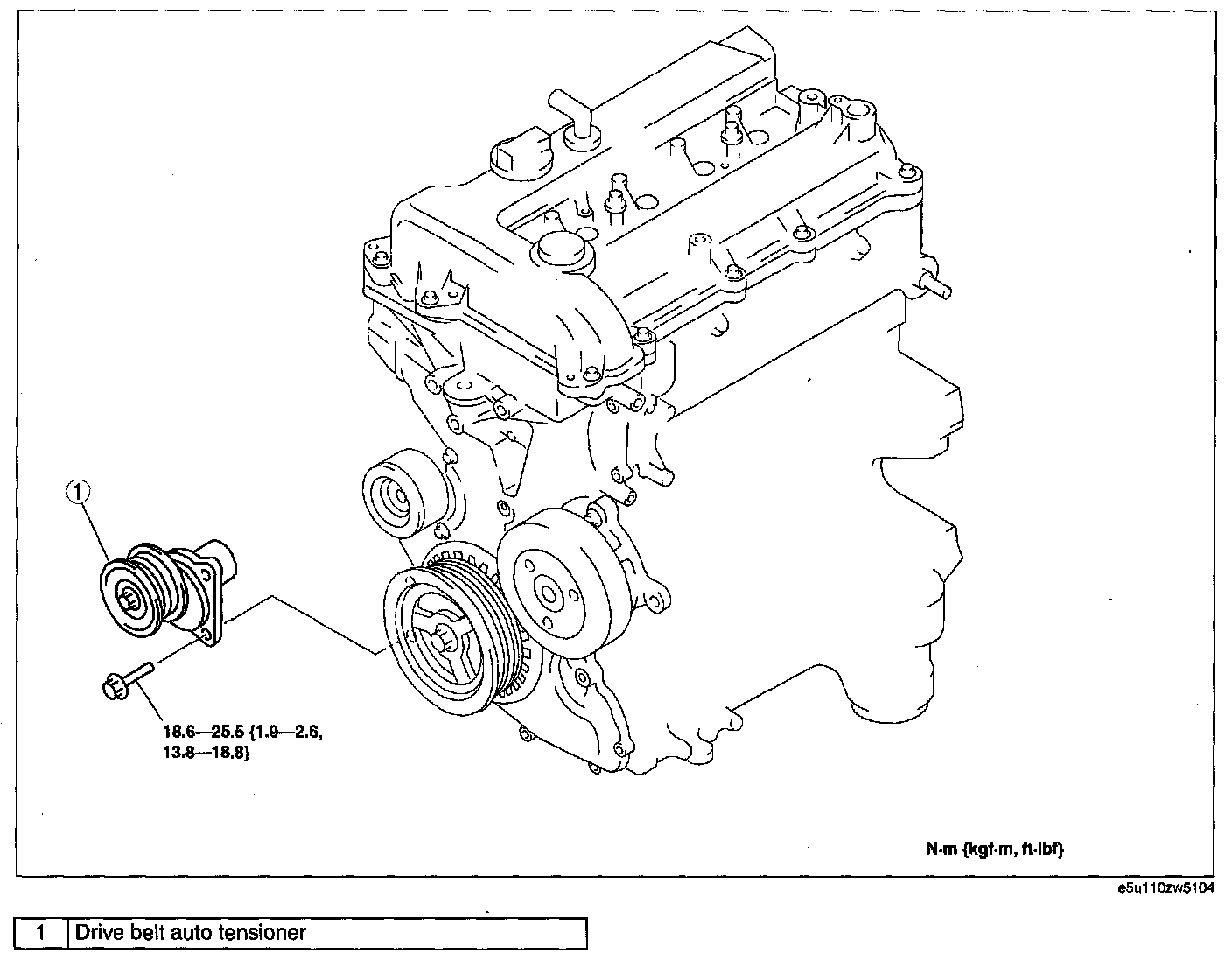

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
