System Specifications

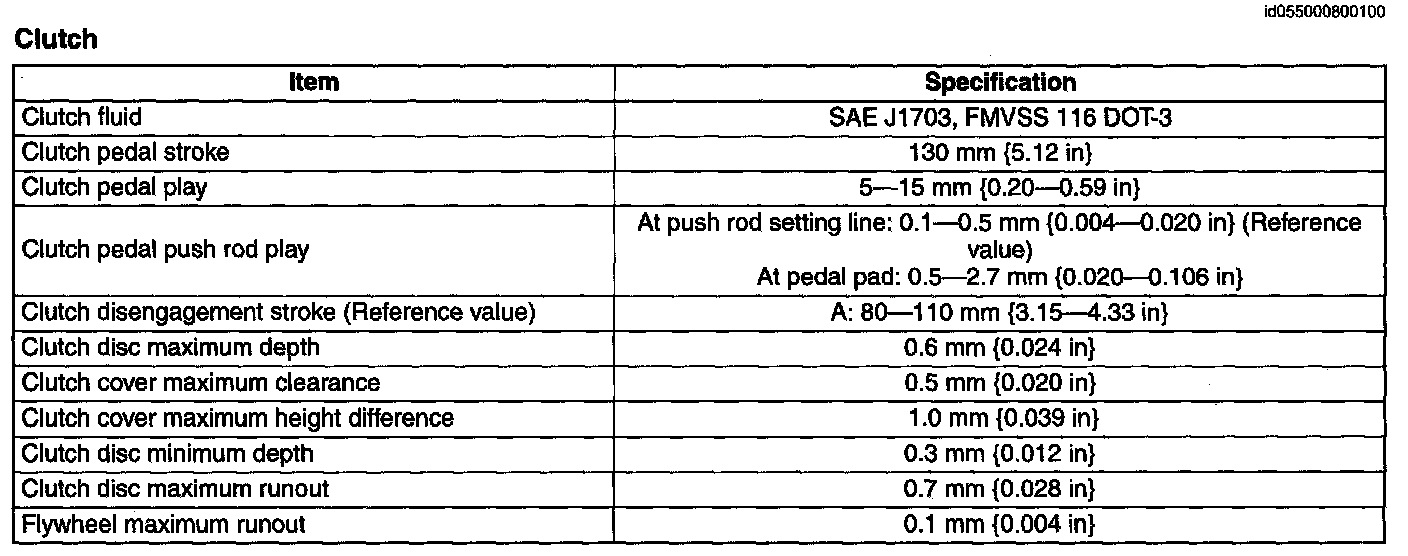

Clutch Specifications

Clutch:

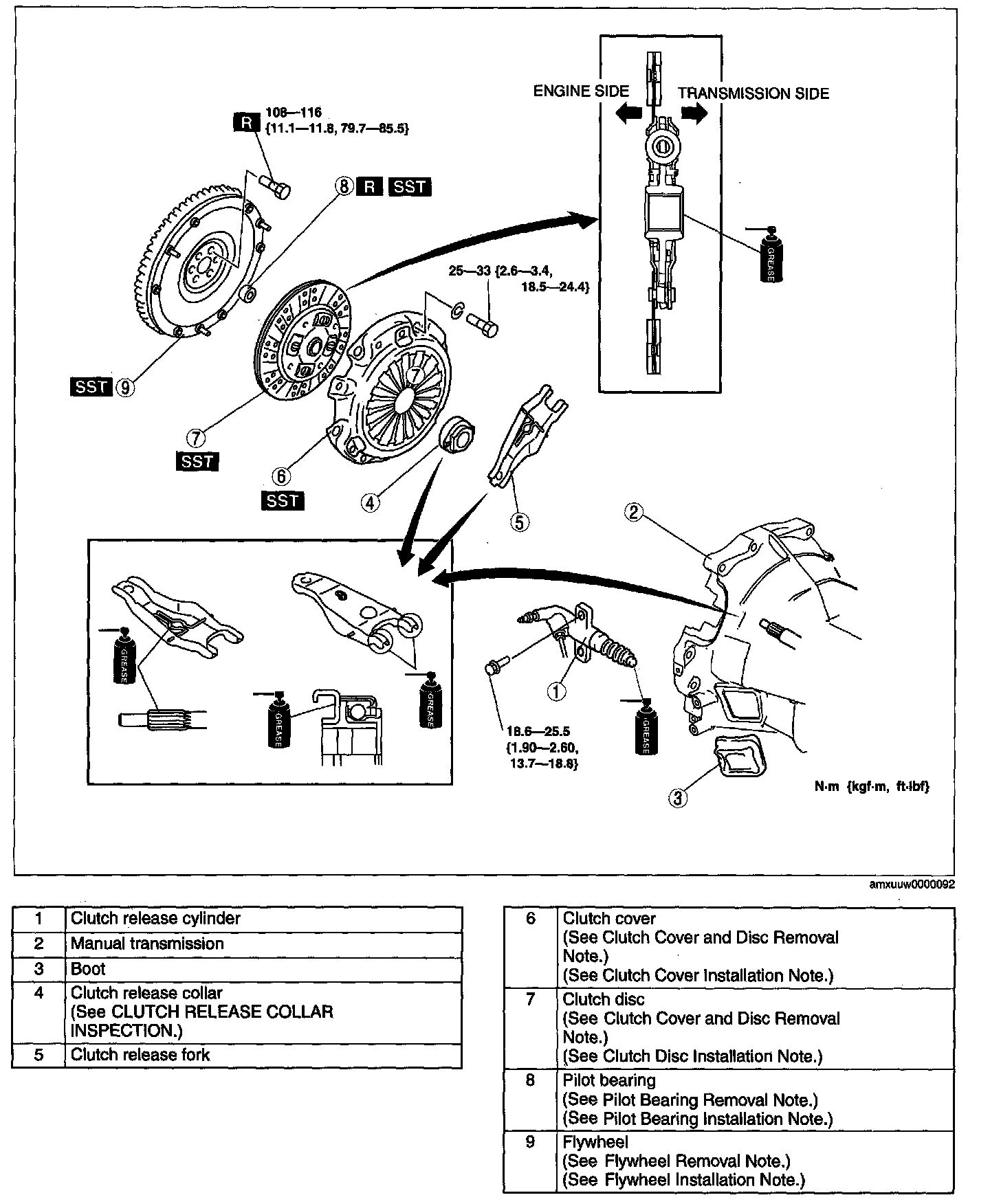

Exploded View

Clutch Cover





Tighten the bolts evenly and gradually in a crisscross pattern.

Tightening torque
25.0 - 33.0 Nm
(2.6 - 3.4 kgf-m, 18.5 - 24.4 ft-lbf)

Flywheel

Flywheel Installation Note
1. Clean the crankshaft thread holes.
2. Install the flywheel to the crankshaft.
3. Hand-tighten the flywheel lock bolts.





4. Install the SST to the flywheel.
5. Gradually tighten the flywheel lock bolts in a crisscross pattern.

Tightening torque
108 - 116 Nm
(11.1 - 11.8 kgf-m, 79.7 - 85.5 ft. lbf)
