Body Control Systems: Description and Operation

MULTIPLEX COMMUNICATION SYSTEM [MULTIPLEX COMMUNICATION SYSTEM]

Outline
- If the controller area network (CAN) system is malfunctioning, read the DTCs of the following modules, using the M-MDS to determine the malfunctioning system.
- PCM
- EPS control module
- TCM (AT)
- ABS HU/CM (with ABS)
- DSC HU/CM (with DSC)
- Steering angle sensor (with DSC)
- Keyless control module
- TPMS control module
- Instrument cluster

Flowchart

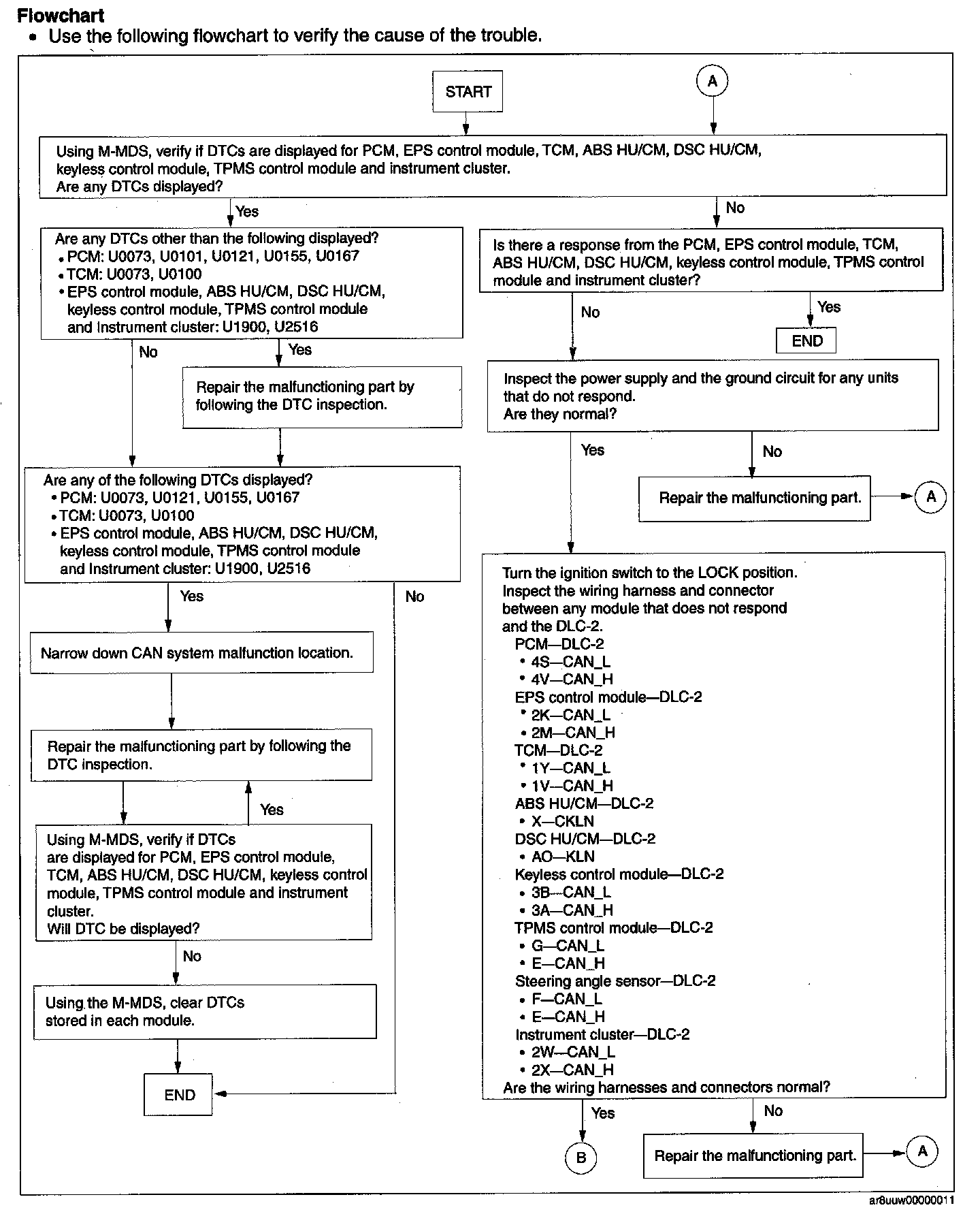

Flow Chart (Part 1):

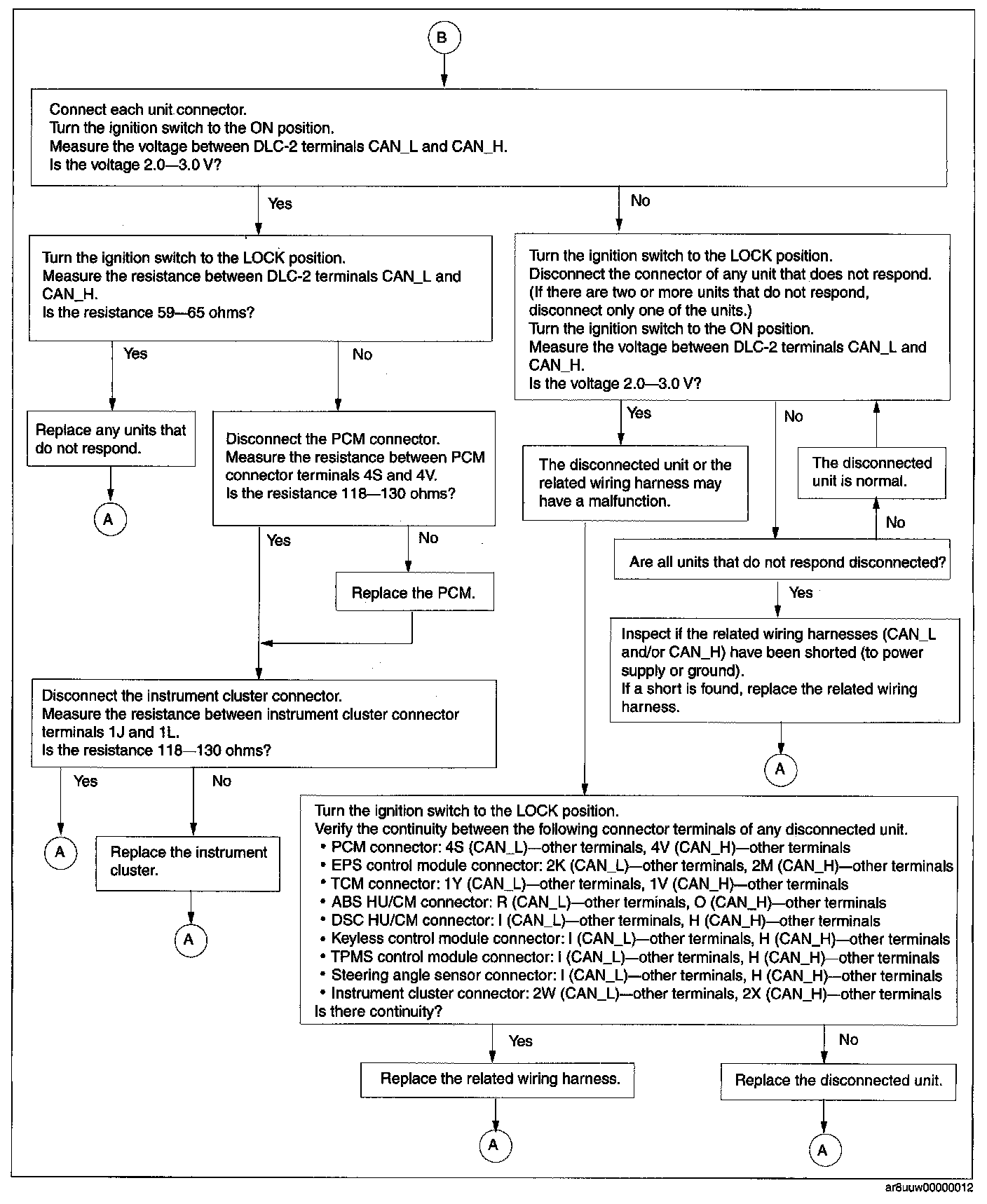

Flow Chart (Part 2):
