Headliner: Service and Repair

HEADLINER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Partially peel back the seaming welt.
3. Remove the following parts:
1. Roof side trim
2. Sunroof seaming welt (vehicles with sunroof)
3. A-pillar trim
4. Rear seat
5. Inner scuff plate
6. Tire house trim
7. Rear pillar trim
8. Map light
9. Interior light
10. Sunvisor
11. Assist handle

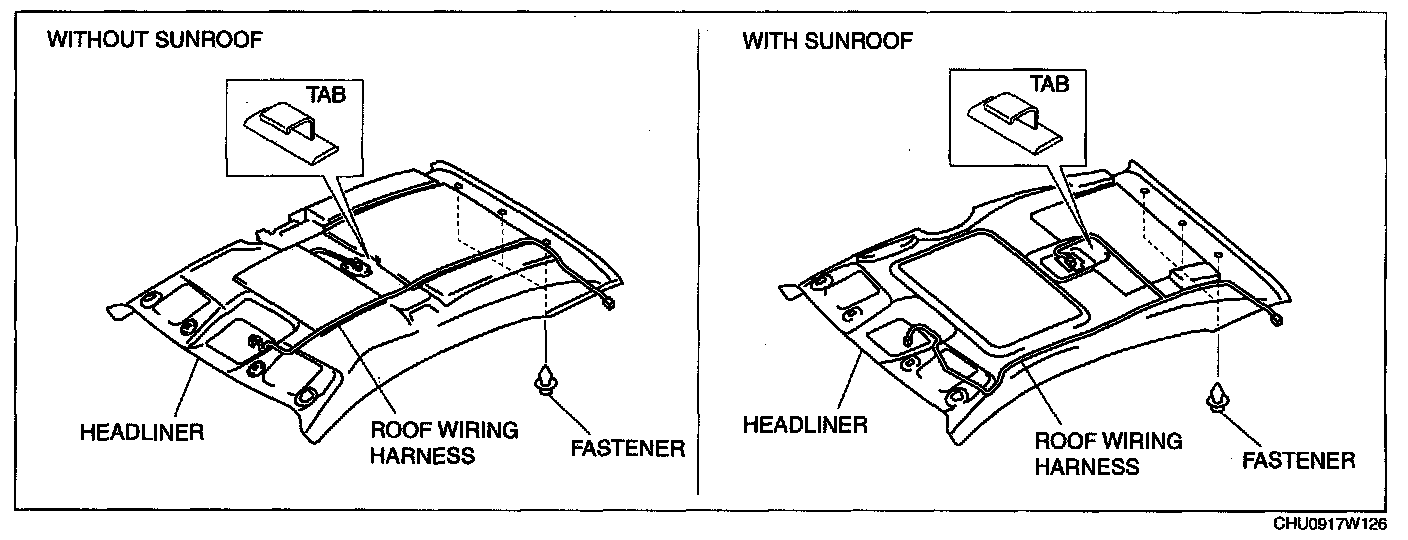

4. Disconnect the roof wiring harness connector and remove the roof wiring harness connector clip from the body.
5. Remove the fasteners.






6. Detach the tab from the roof panel and remove the headliner.
7. Take the headliner out from the opened passenger-side door.
8. Install in the reverse order of removal.
