Front Axle

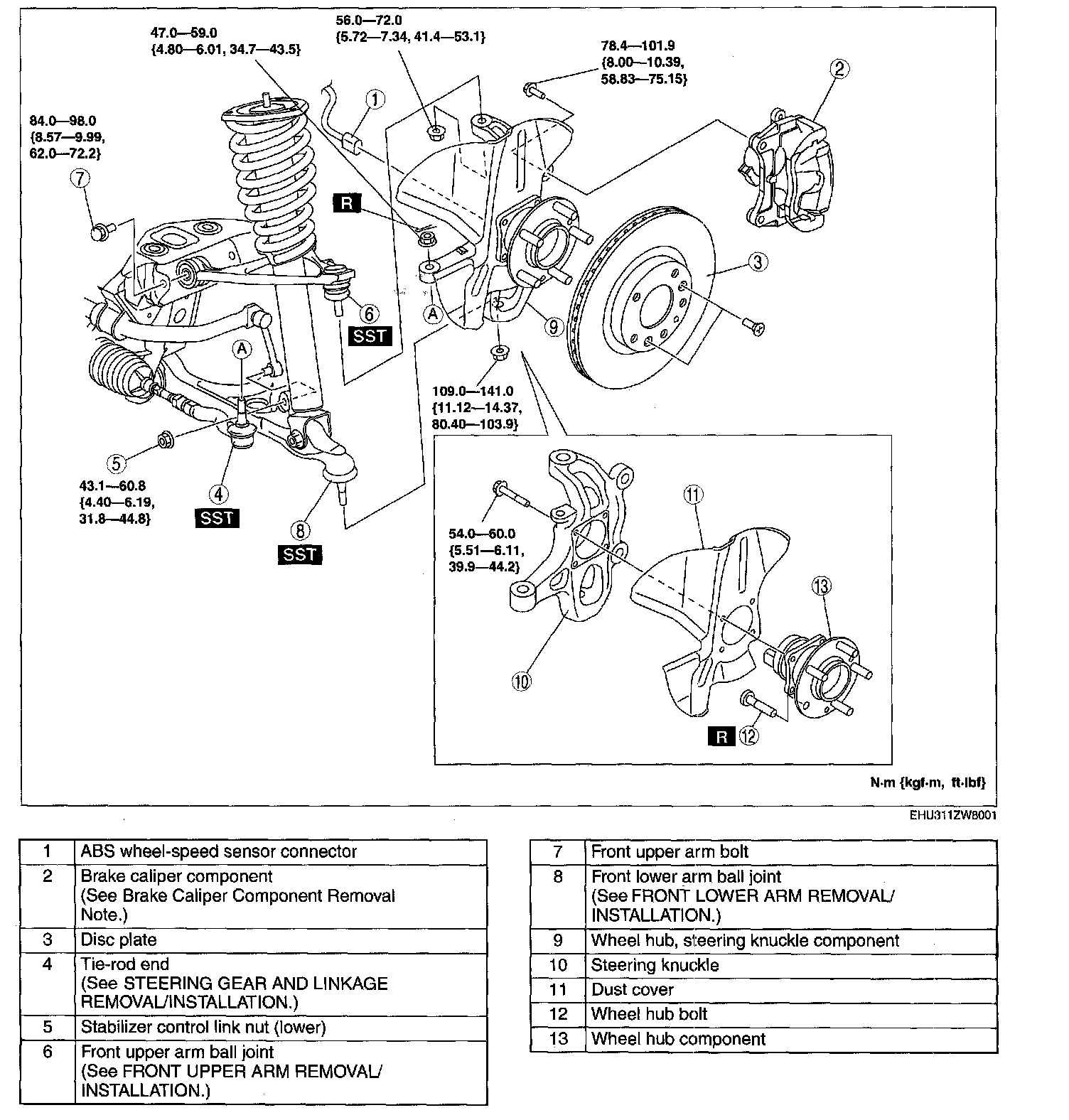

WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION

Caution:
^ Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor harness connector (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, inspect the front wheel alignment.





Brake Caliper Component Removal Note





1. Suspend the brake caliper component using a cable or equivalent.
