Cylinder Head Assembly
Tightening TorqueExhaust Manifold
Tightening torque 42 - 60 Nm (4.3 - 6.1 kgf-m, 31 - 44 ft-lbf)

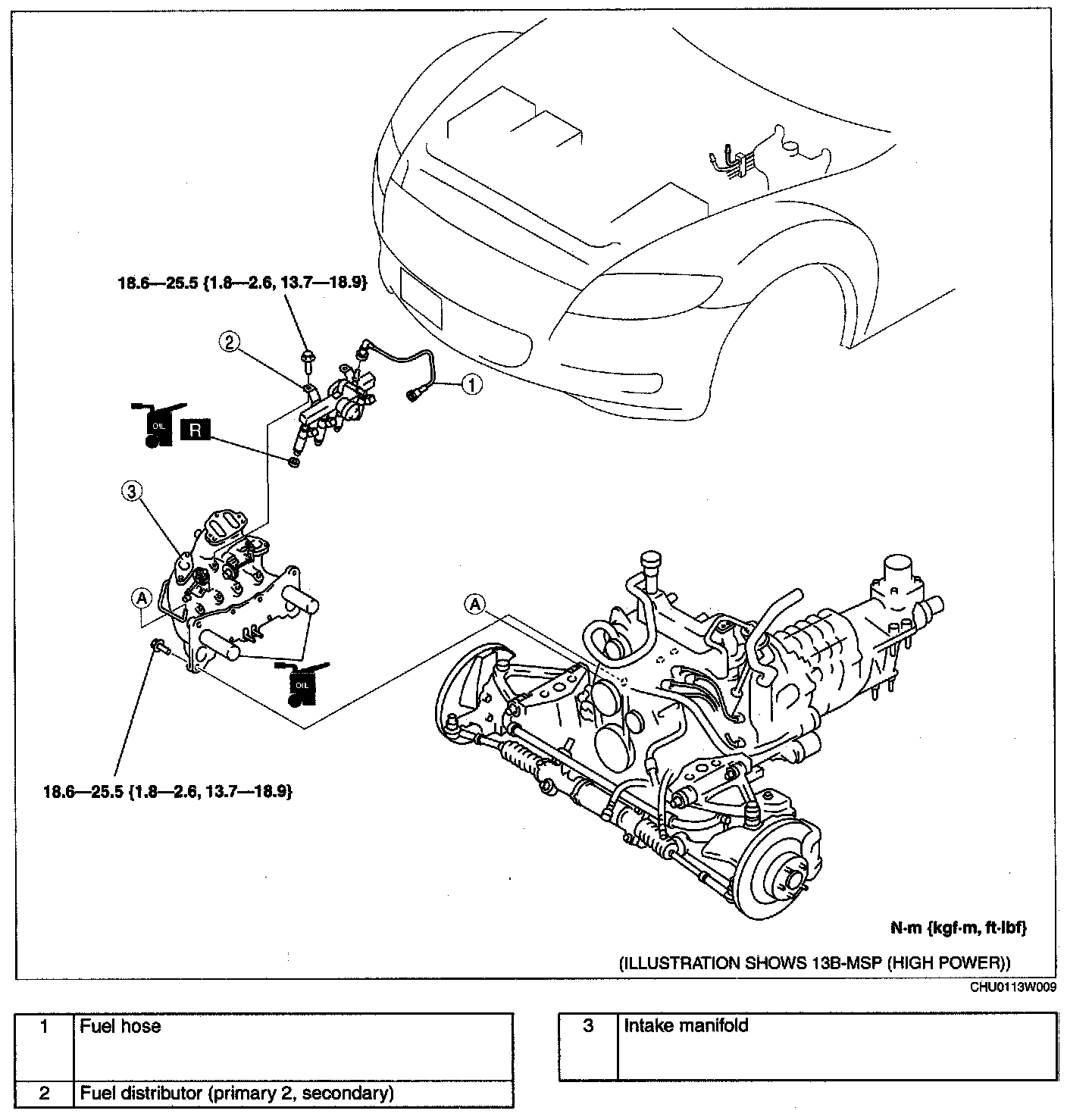

Intake Manifold
Note
- The engine must be removed to remove the intake manifold.
- Remove in the order indicated in the table.
Install in the reverse order of removal.
Intake Manifold Removal Note
Loosen the bolts in the order shown in the figure.
Tighten the bolts in the order shown in the figure
Retighten the No.1 bolt after tightening all bolts.
Tightening torque
18.6-25.5 N.m (1.8-2.6 kgf-m, 13.7-18.9 ft-lbf)
