Removal and Replacement

BATTERY REMOVAL/INSTALLATION

WARNING: For vehicles with DSC, if the negative battery cable is disconnected, the stored initial position of the steering angle sensor will be cleared and the DSC will not operate properly, making the vehicle unsafe to drive. Perform the steering angle sensor initialization procedure after connecting the negative battery cable.

1. Remove the engine cover.

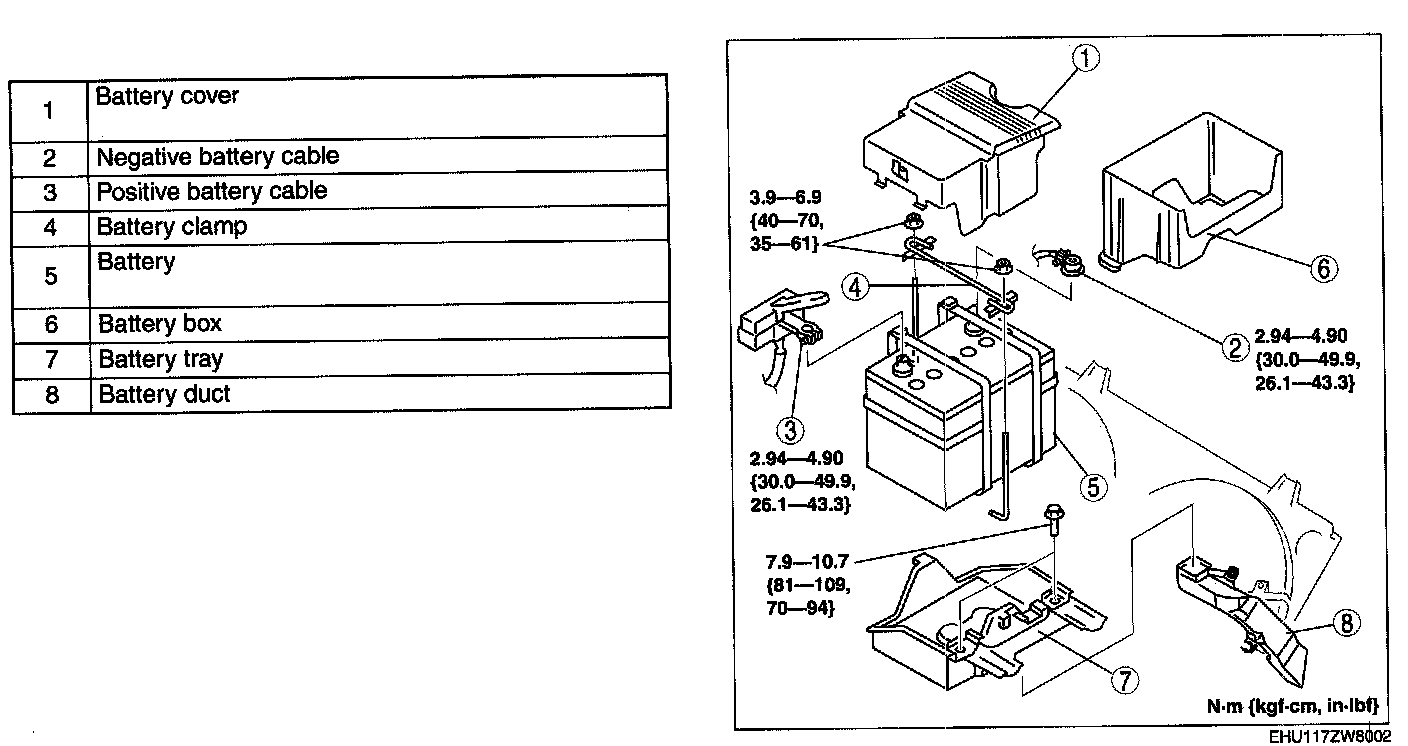

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Perform the steering angle sensor initialization procedure.

Battery Cover Removal Note
1. Pull up the two tabs on the rear, remove the tab on the front, and then remove the battery cover.

Battery Installation Note




1. Install the battery front face is positioned within the white-painted range of the battery box.
