Battery Zone Valve Removal/Installation



-
BATTERY ZONE VALVE REMOVAL/INSTALLATION - HYBRID











NOTE: The battery zone valve is not interchangeable with the passenger zone valve.

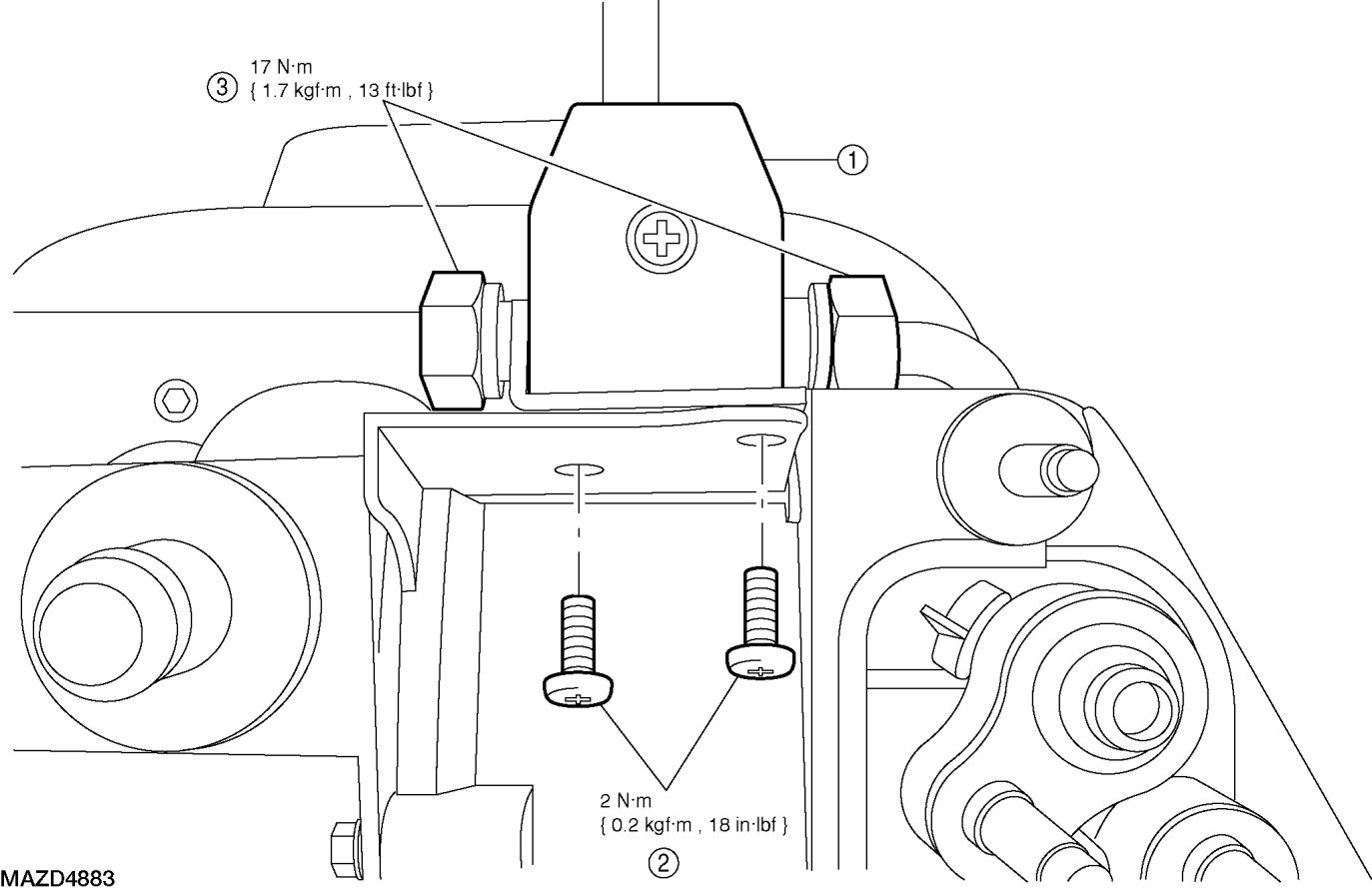

1. Remove the auxiliary climate control housing. See - Auxiliary Climate Control Housing Removal/Installation.

2. Remove the 2 battery zone valve screws.

- To install, tighten to 2 Nm {0.2 kgf-m, 18 in-lbf}.

3. Loosen the nuts and disconnect the battery zone valve tube-O fittings.

- Discard the O-ring seals.
- To install, tighten to 17 Nm {1.7 kgf-m, 13 ft-lbf}.

4. Disconnect the electrical connector and remove the battery zone valve.

5. To install, reverse the removal procedure.

- Install new O-ring seals.
