PINPOINT TEST 1: POOR RECEPTION - AM/FM

Normal Operation
The radio antenna receives AM and FM radio waves and sends them to the audio unit.

The noise suppression equipment reduces engine ignition and electrical systems interference transmitted through the speakers.
- DTC B2103 (Antenna Not Connected) - sets during the antenna connected test (part of the audio unit self-test) when the signal strength is less than the pre-configured threshold value. In order for this DTC to set, the audio unit must be tuned to AM, and the self-test must be run with the scan tool.

Possible Causes
- Wiring, terminals or connectors
- Antenna
- Antenna cable
- Charging system
- Ignition system
- Noise suppression equipment
- Audio unit

Diagnostic Procedure

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

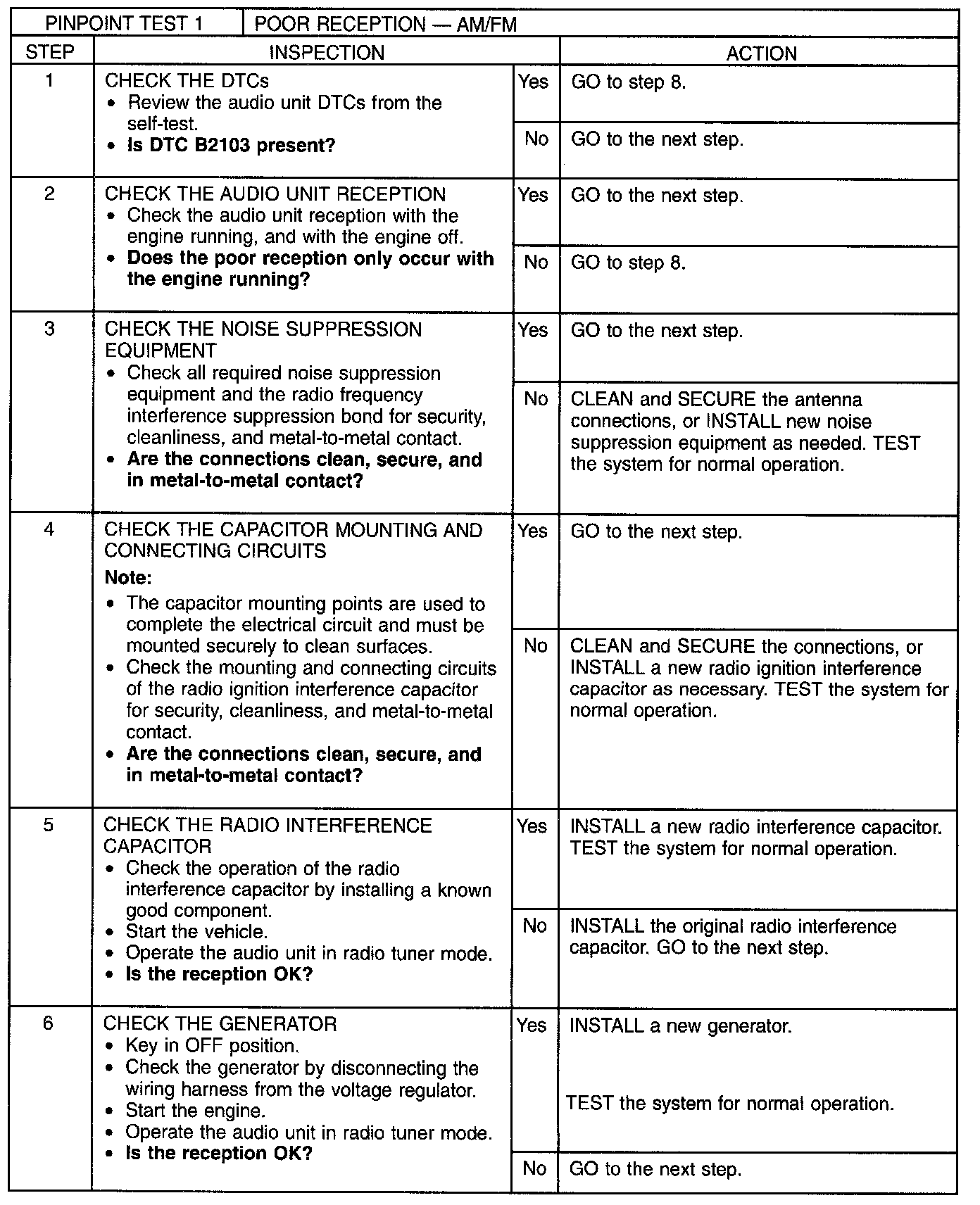

Step 1-Step 6:

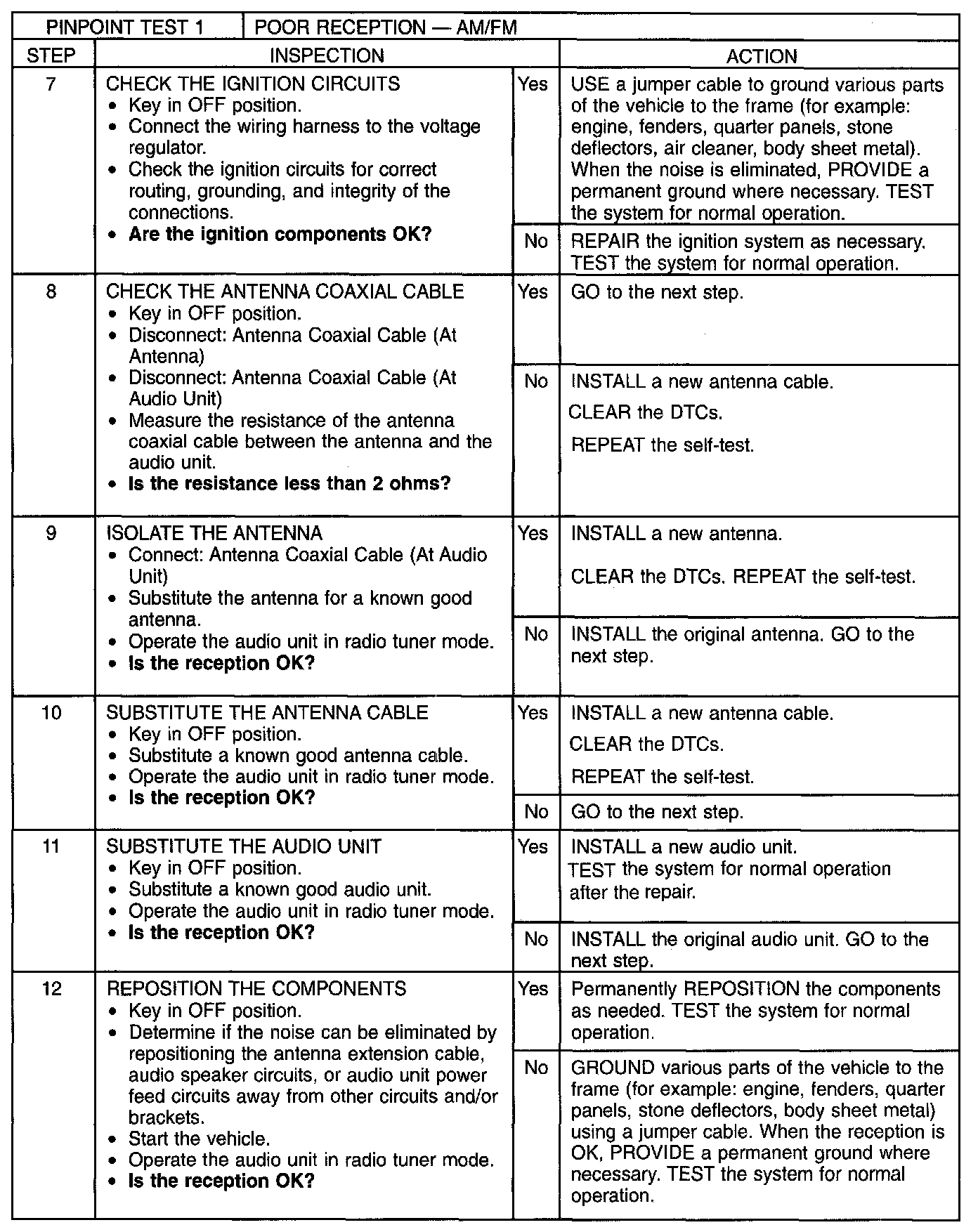

Step 7-Step 12:
