Liftgate Release Switch - Liftgate Window Removal/Installation

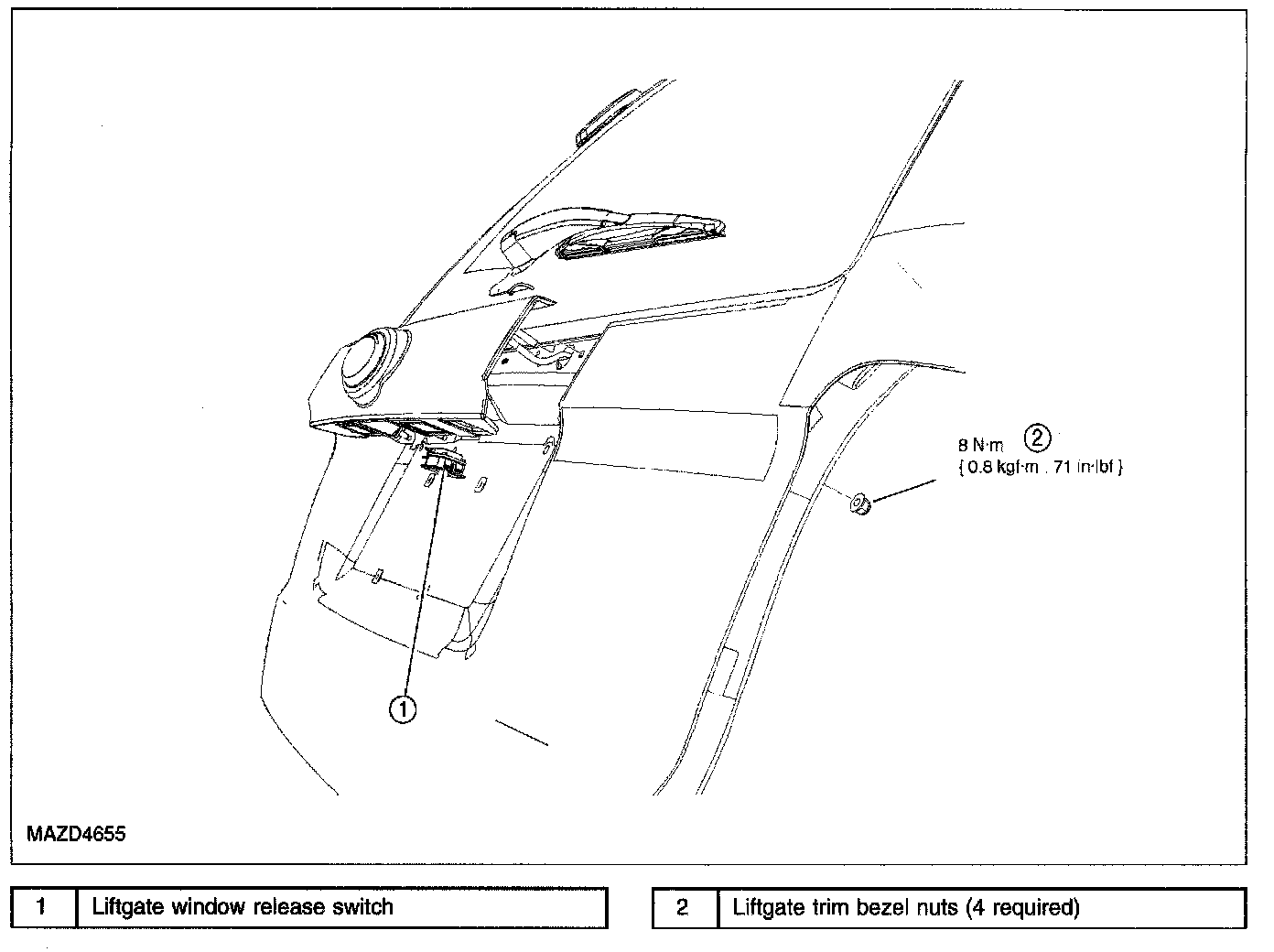

LIFTGATE RELEASE SWITCH - LIFTGATE WINDOW REMOVAL/INSTALLATION






1. Remove the liftgate trim panel.
2. Remove the 4 liftgate trim bezel nuts and remove the bezel from the liftgate.
- Disconnect the liftgate window release electrical connector.
- Using an appropriate tool, press the tabs and remove the liftgate window release switch.
- To install, tighten to 8 N.m (0.8 kgf.m, 71 in.lbf).

3. To install, reverse the removal procedure.
