License Plate Frame: Service and Repair

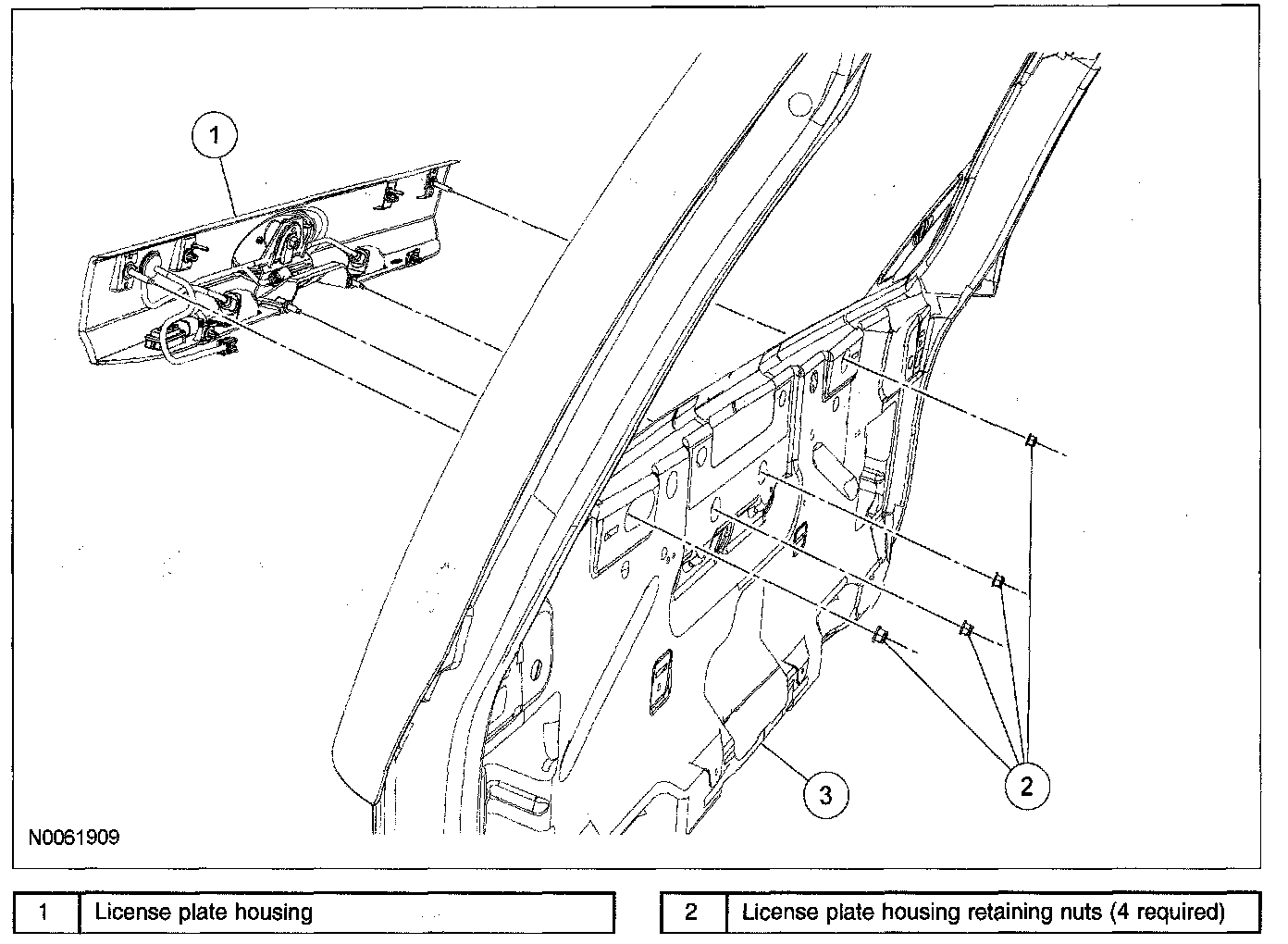

LICENSE PLATE HOUSING REMOVAL/INSTALLATION 1.
Remove the liftgate
trim panel.
2.
Disconnect the license plate housing electrical connector.
3.
Remove the license plate housing retaining nuts.
4.
Release the license plate housing from the push clips and remove the license plate housing from the lift-gate.
5.
To install, reverse the removal procedure.
