Center Mounted Brake Lamp: Service and Repair
HIGH MOUNTED STOPLAMP BULB REMOVAL/INSTALLATION 1.
Remove the high-mounted stoplamp assembly and discard the screws and washers.
2.

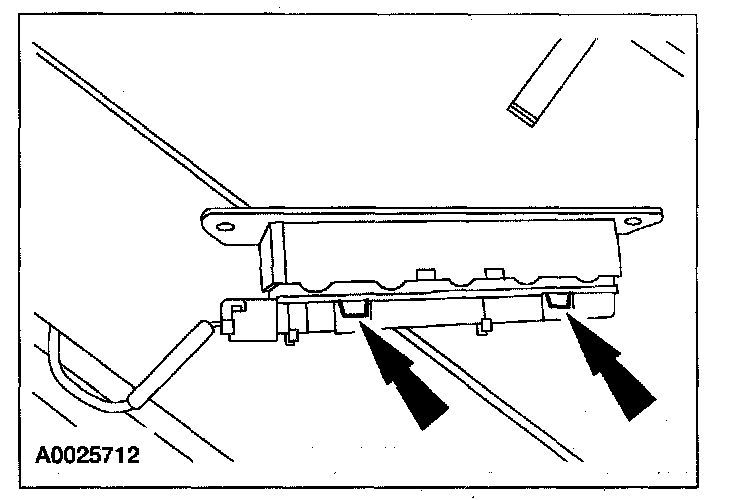

Remove the high-mounted stoplamp bulb holder from the lamp assembly by disengaging the snaps.
3.

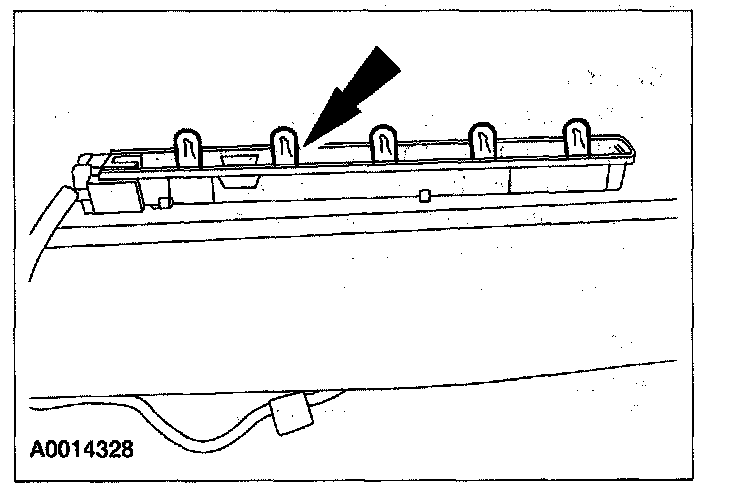

Remove the bulb(s).
4.
To install, reverse the removal procedure.
