Steering Wheel: Service and Repair

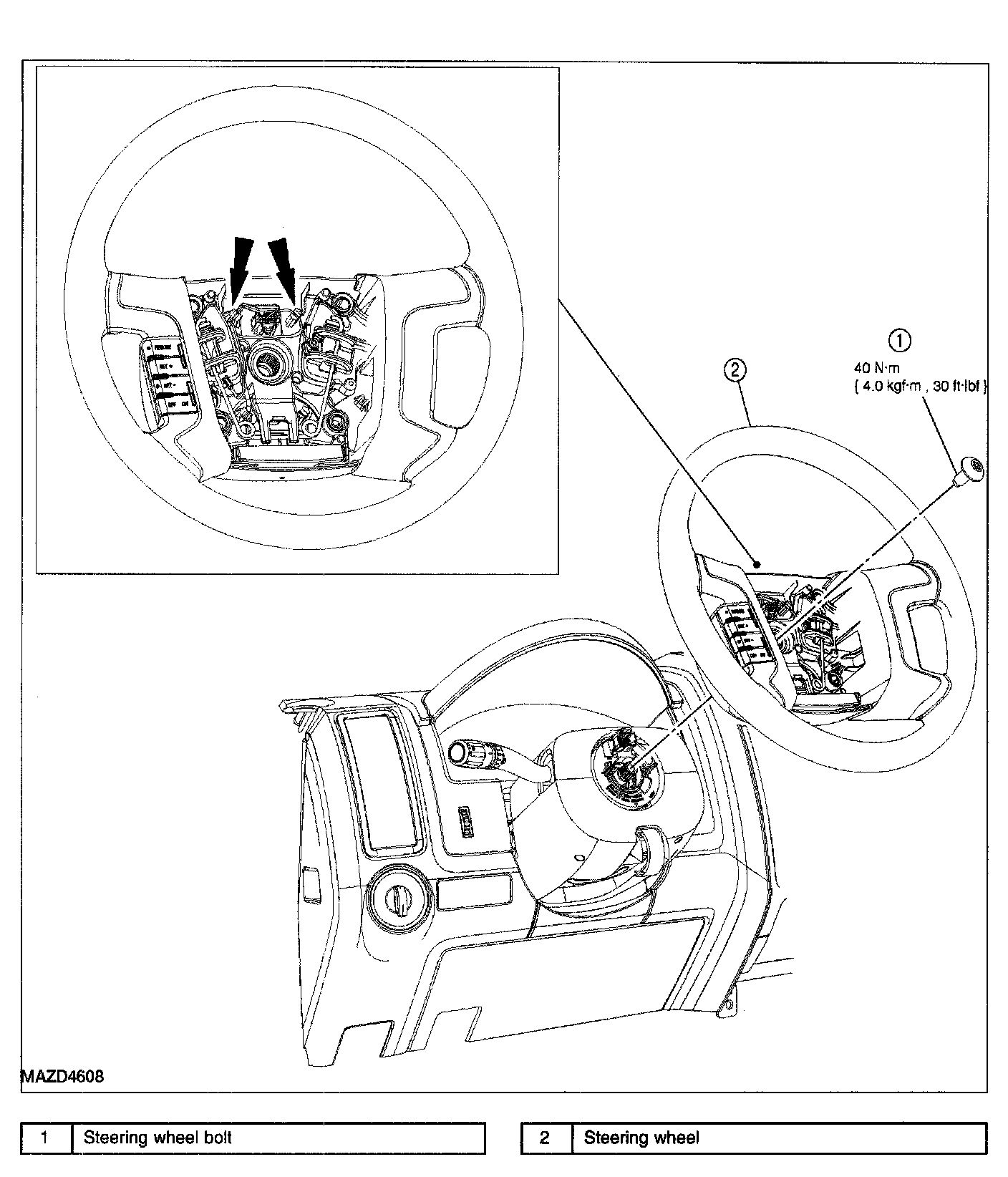

STEERING WHEEL REMOVAL/INSTALLATION





1. Remove the driver air bag module.
2. Disconnect the steering wheel switch electrical connector from the clockspring.
^ Detach the steering wheel switch wiring from the retainers and position the wires aside.
3. Remove the steering wheel bolt.
^ To install, tighten to 40 N-m (4.0 kgf-m, 30 ft-lbf).
4. Using the special tool, remove the steering wheel.





Caution
^ Do not allow the special tool to damage the steering wheel switch wires and connector while removing the steering wheel.

5. To install, reverse the removal procedure.
