Transaxle Support Insulator - Lower, Front Removal/Installation

TRANSAXLE SUPPORT INSULATOR - LOWER, FRONT REMOVAL/INSTALLATION

Transaxle Support Insulator - Lower, Front:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the LH splash shield.





3. Remove the 7 retainers and the LH splash shield.

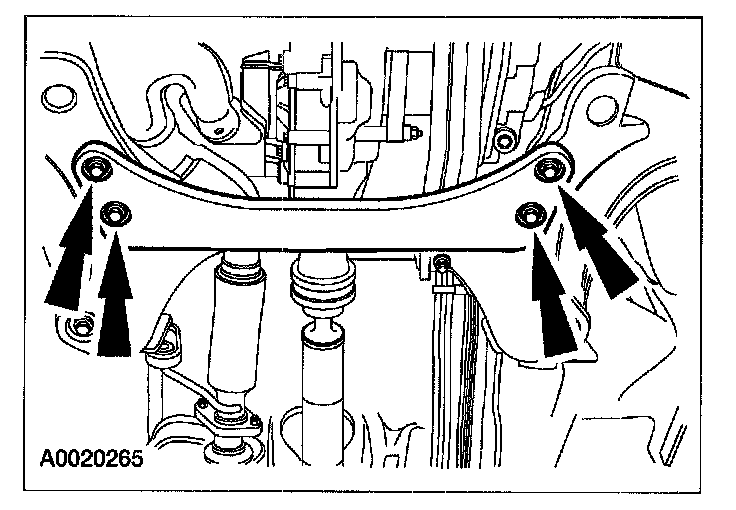

4. Remove the 4 bolts and the cross brace.








5. Remove the bolt for the mount and the 2 bolts for the brace.
6. Remove the rear bolt and remove the brace.

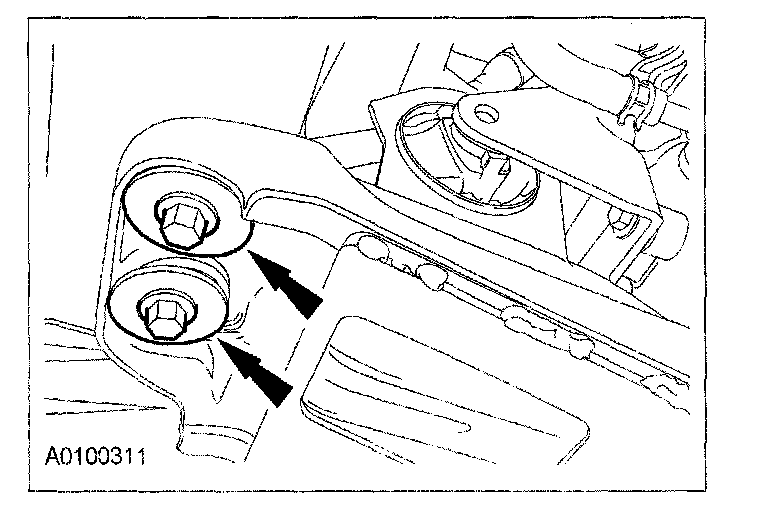

7. Remove the 2 bolts from the mount and remove the mount.

Installation

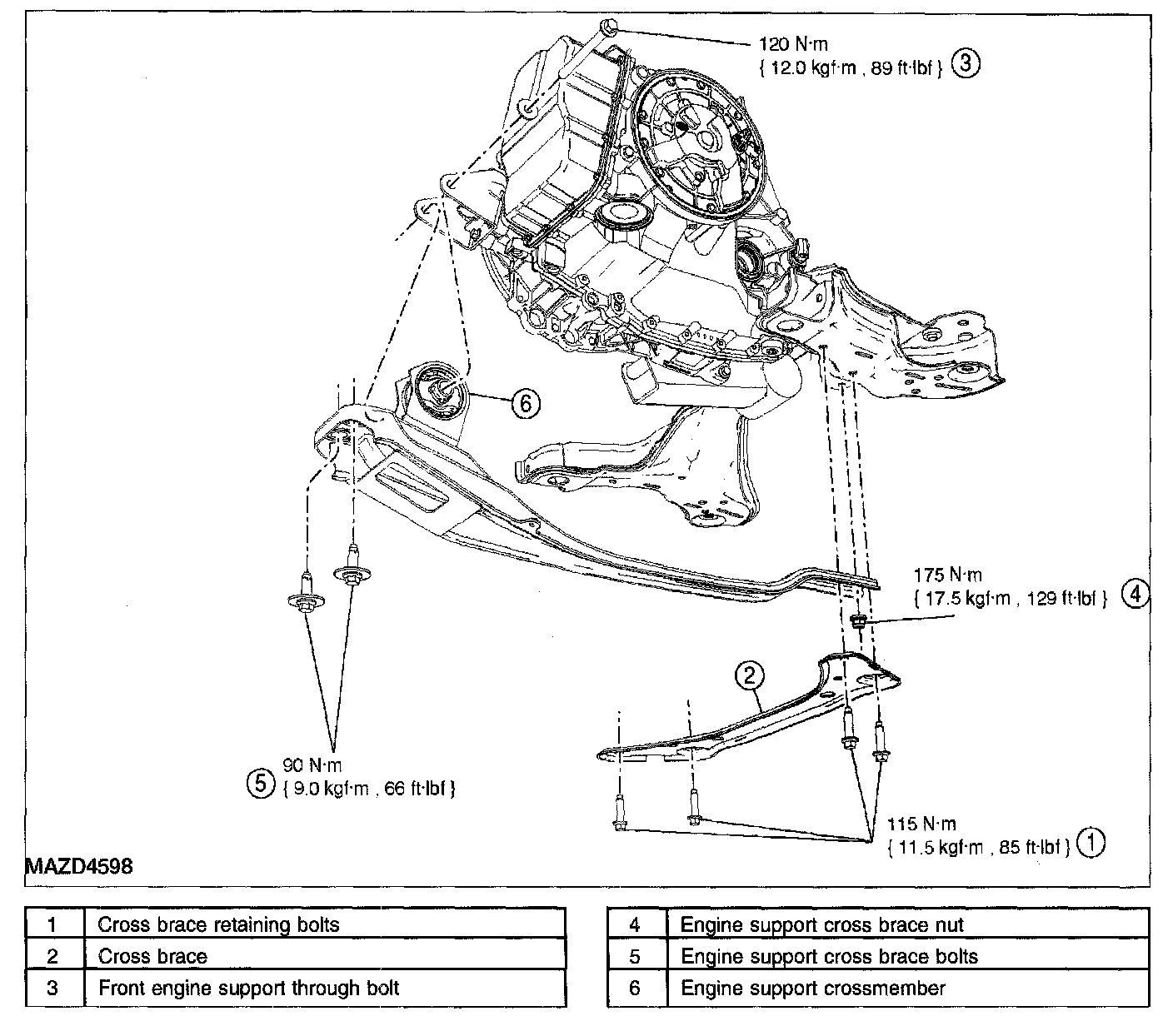

1. Install a new mount onto the cross brace and install the bolts.
^ Tighten to 115 N-m (11.5 kgf-m, 85 ft-lbf).





2. Position the cross brace in place and install the nut.
^ Tighten to 175 N-m (17.5 kgf-m, 129 ft-lbf).
3. Install the 2 bolts for the cross, brace.





^ Tighten to 90 N-m (9.0 kgf-m, 66 ft-lbf).
4. Install the through bolt for the mount.





^ Tighten to 120 N-m (12.0 kgf-m, 89 ft-lbf).

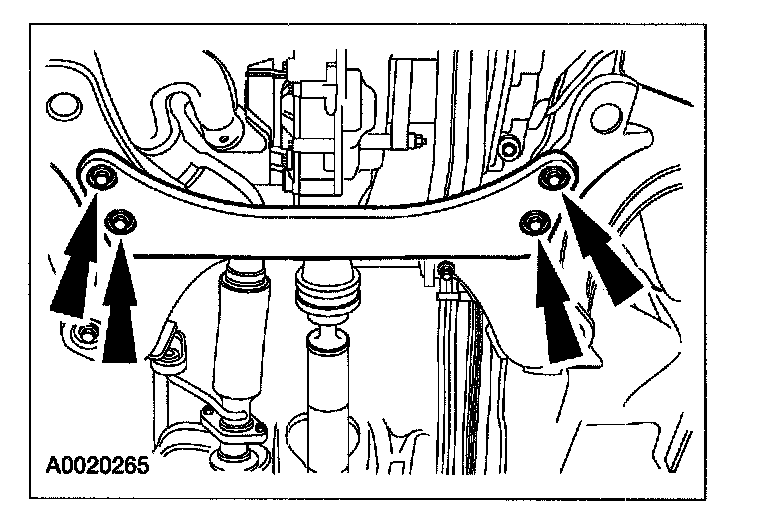

5. Install the cross brace and the 4 bolts.





^ Tighten to 115 N-m (11.5 kgf-m, 85 ft-lbf).
6. Install the LH splash shield and the 7 retainers.





^ Tighten to 10 N-m (1.0 kgf-m, 89 in-lbf).
7. Install the LH splash shield.
