Transaxle Rear Support Insulator Removal/Installation

TRANSAXLE REAR SUPPORT INSULATOR REMOVAL/INSTALLATION

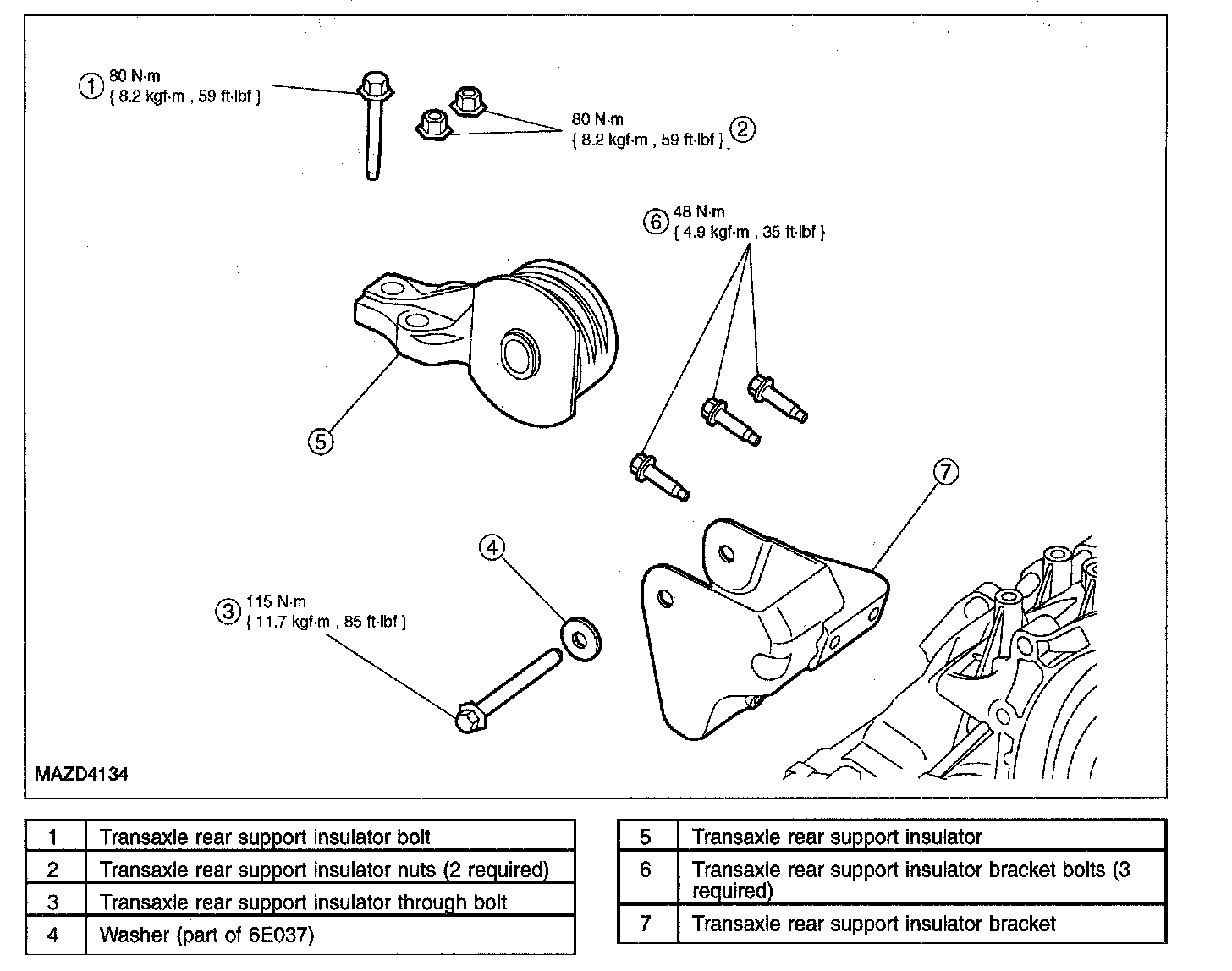

Transaxle Rear Support Insulator:

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the transaxle rear support insulator bolt.
^ To install, tighten to 80 N-m (8.2 kgf-m, 59 ft-lbf).
3. Remove the 2 rear transaxle support insulator nuts.
^ To install, tighten to 80 N-m (8.2 kgf-m, 59 ft-lbf).
4. Remove the transaxle rear support insulator through bolt and washer.
^ To install, tighten to 115 N-m (11.7 kgf-m, 85 ft-lbf).
5. Remove the transaxle rear support insulator.
6. If necessary, remove the 3 bolts and the transaxle rear support insulator bracket.
^ To install, tighten to 48 N-m (4.9 kgf-m, 35 ft-lbf).
7. To install, reverse the removal procedure.
