Low/Reverse Piston Disassembly/Assembly

LOW/REVERSE PISTON DISASSEMBLY/ASSEMBLY

Disassembly

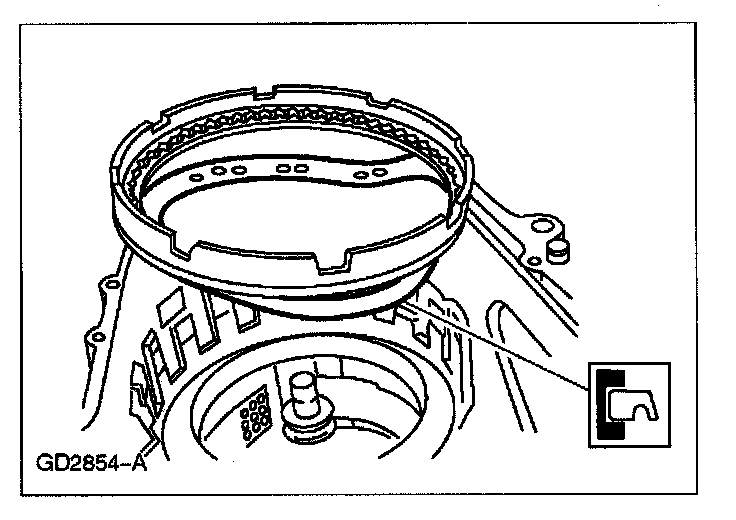

1. Remove and discard the low/reverse clutch piston outer seal on the low/reverse clutch piston.

2. Remove and discard the low/reverse clutch piston inner seal on the low/reverse clutch piston.

Assembly

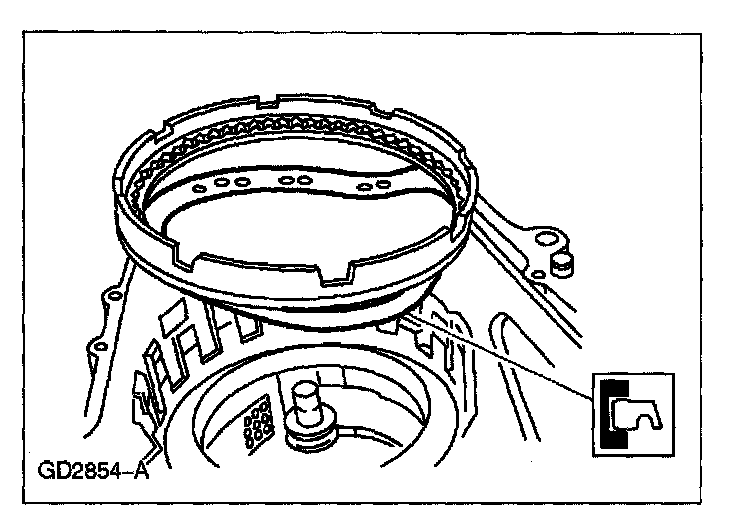

1. Install the low/reverse clutch piston outer seal on the low/reverse clutch piston.

2. Install the low/reverse clutch piston inner seal on the low/reverse clutch piston.
