Always Applied/May Stall Engine

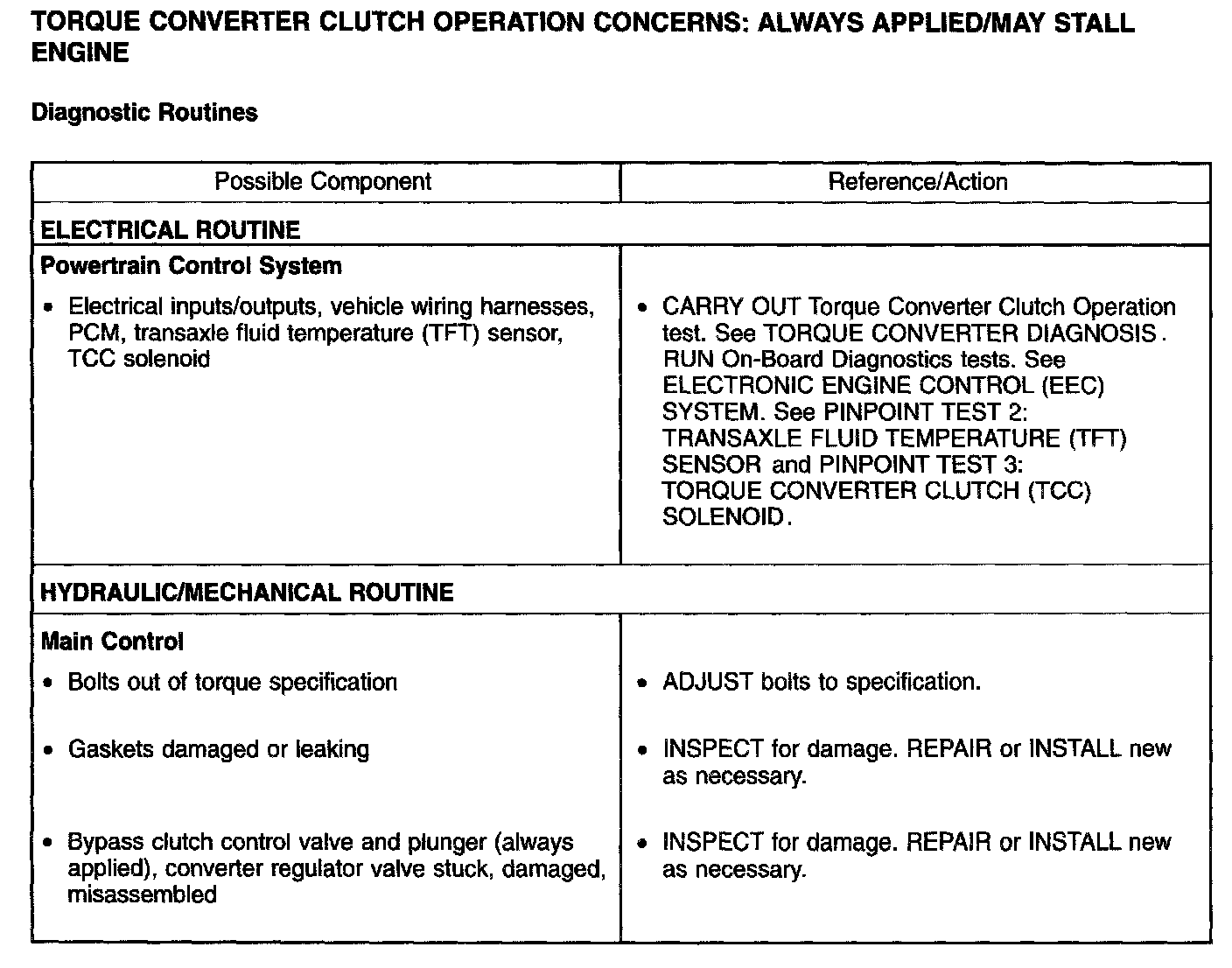

TORQUE CONVERTER CLUTCH OPERATION CONCERNS: ALWAYS APPLIED/MAY STALL ENGINE

Diagnostic Routines

Torque Converter Clutch Operation Concerns: Always Applied/May Stall Engine (Part 1):

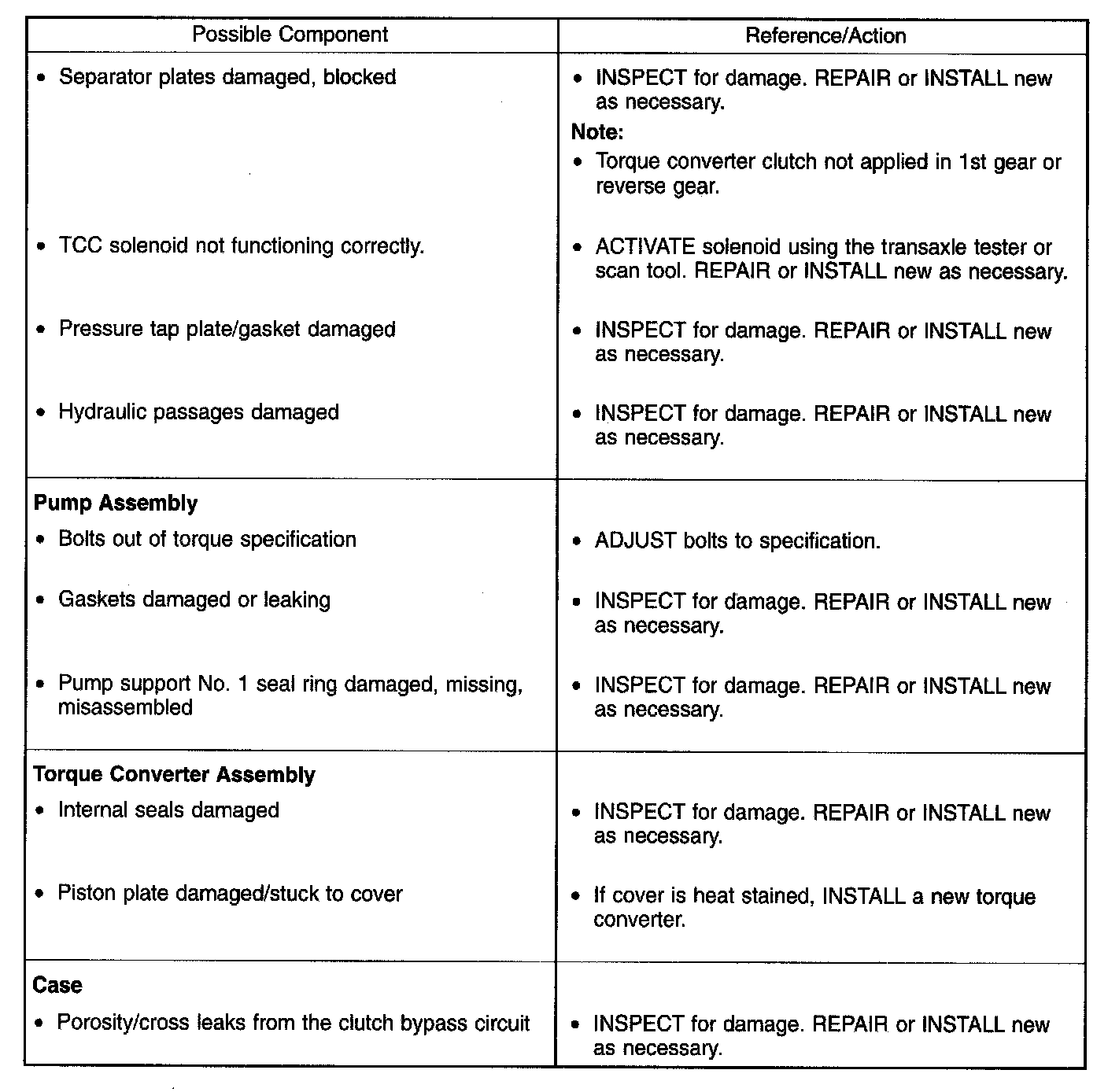

Torque Converter Operation Concerns: No Apply (Part 2):
