Transaxle Support Insulator - LH Removal/Installation

TRANSAXLE SUPPORT INSULATOR - LH REMOVAL/INSTALLATION

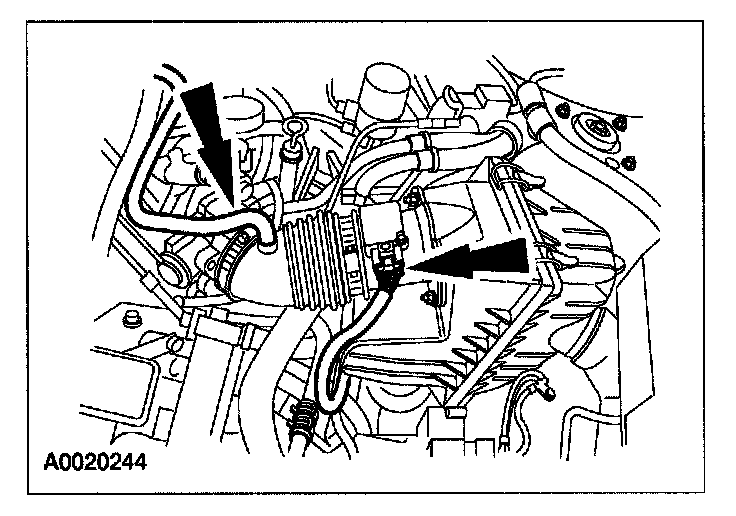

1. Disconnect the breather tube and mass air flow (MAF) sensor.

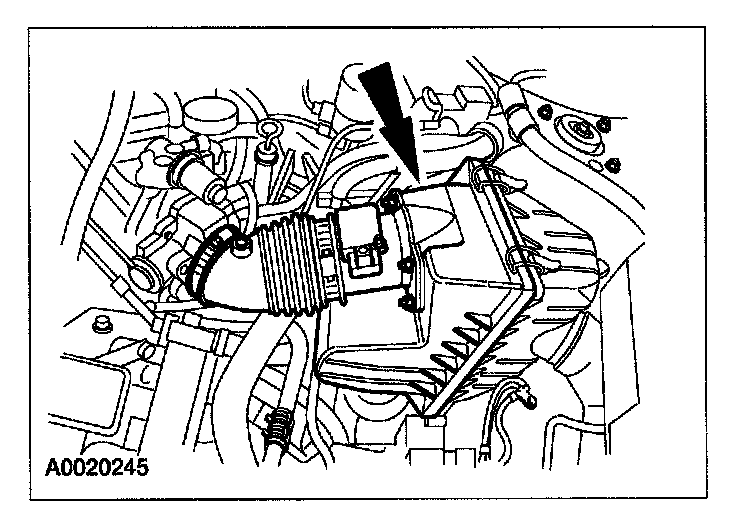

2. Remove the intake tube and air cleaner cover.





3. Remove the air cleaner as an assembly.





4. Install the special tools.





5. Install the special tools.





6. Remove the upper transaxle mount through bolt.





^ To install, tighten to 103 N-m (10.3 kgf-m, 76 ft-lbf).





7. Remove the 4 upper transaxle mount bolts and remove the mount.
^ To install, tighten to 48 N-m (4.8 kgf-m, 35 ft-lbf).
8. To install, reverse the removal procedure.
