TRANSAXLE LH SUPPORT INSULATOR REMOVAL/INSTALLATION

Transaxle Lh Support Insulator:

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the air cleaner.

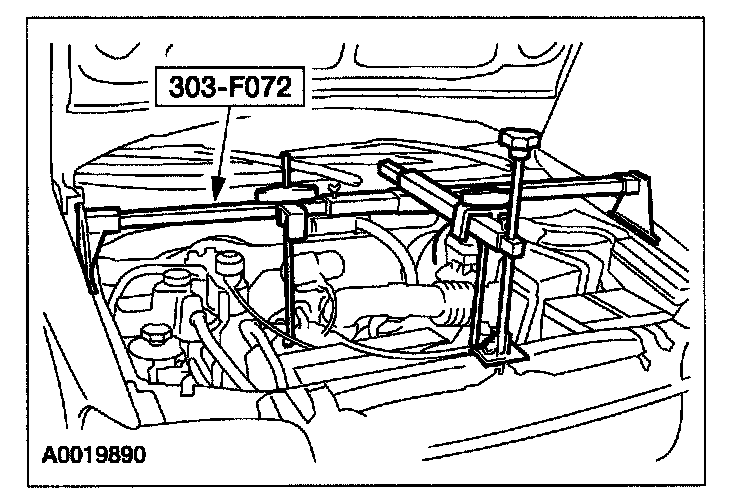

3. Using the special tool, support the engine.

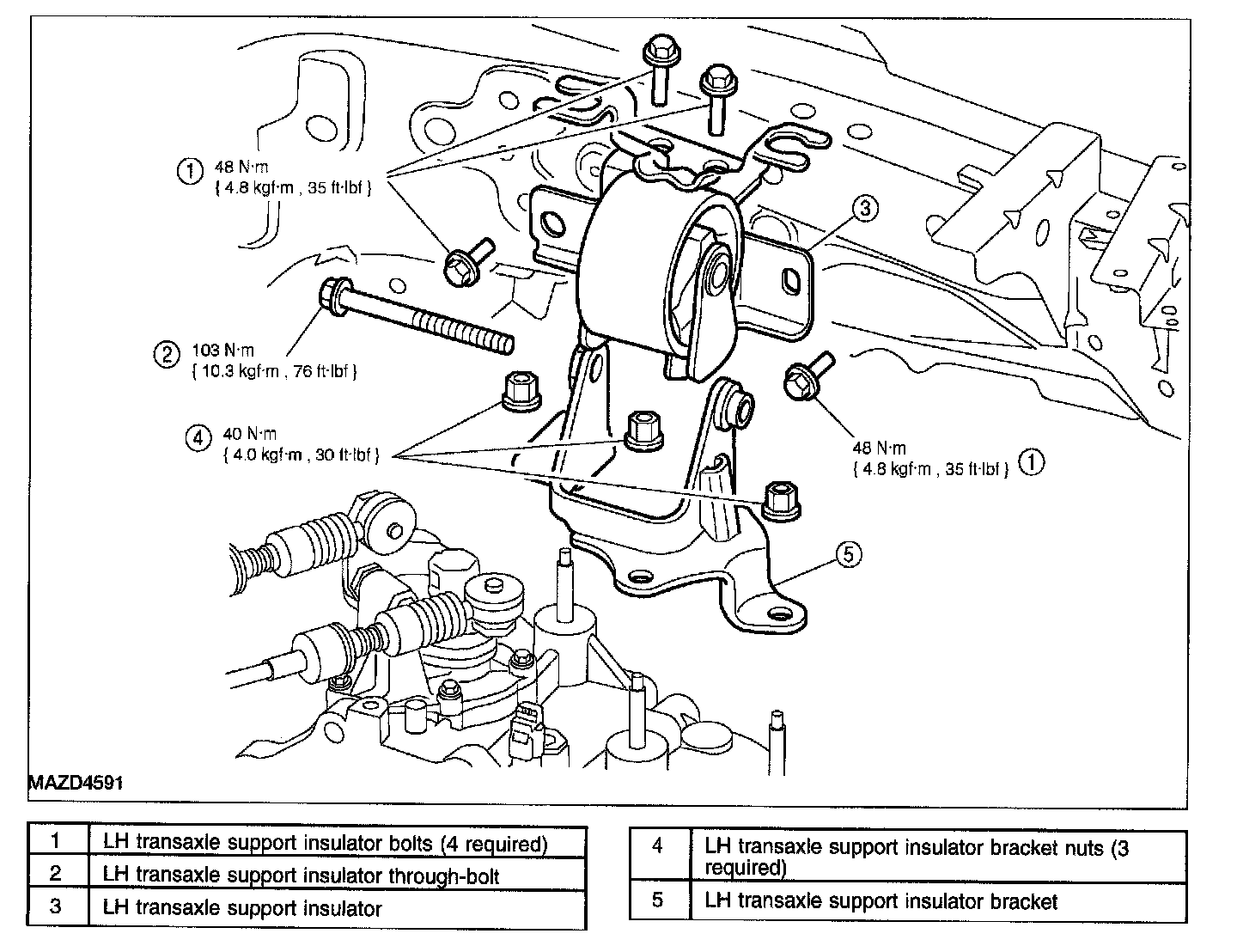

4. Remove the 4 LH transaxle support insulator bolts.
^ To install, tighten to 48 N-m (4.8 kgf-m, 35 ft-lbf).
5. Remove the through bolt and the LH transaxle support insulator.
^ To install, tighten to 103 N-m (10.3 kgf-m, 76 ft-lbf).
6. Remove the 3 nuts and the LH transaxle support insulator bracket.
^ To install, tighten to 40 N-m (4.0 kgf-m, 30 ft-lbf).
7. To install, reverse the removal procedure.
