Intake Manifold

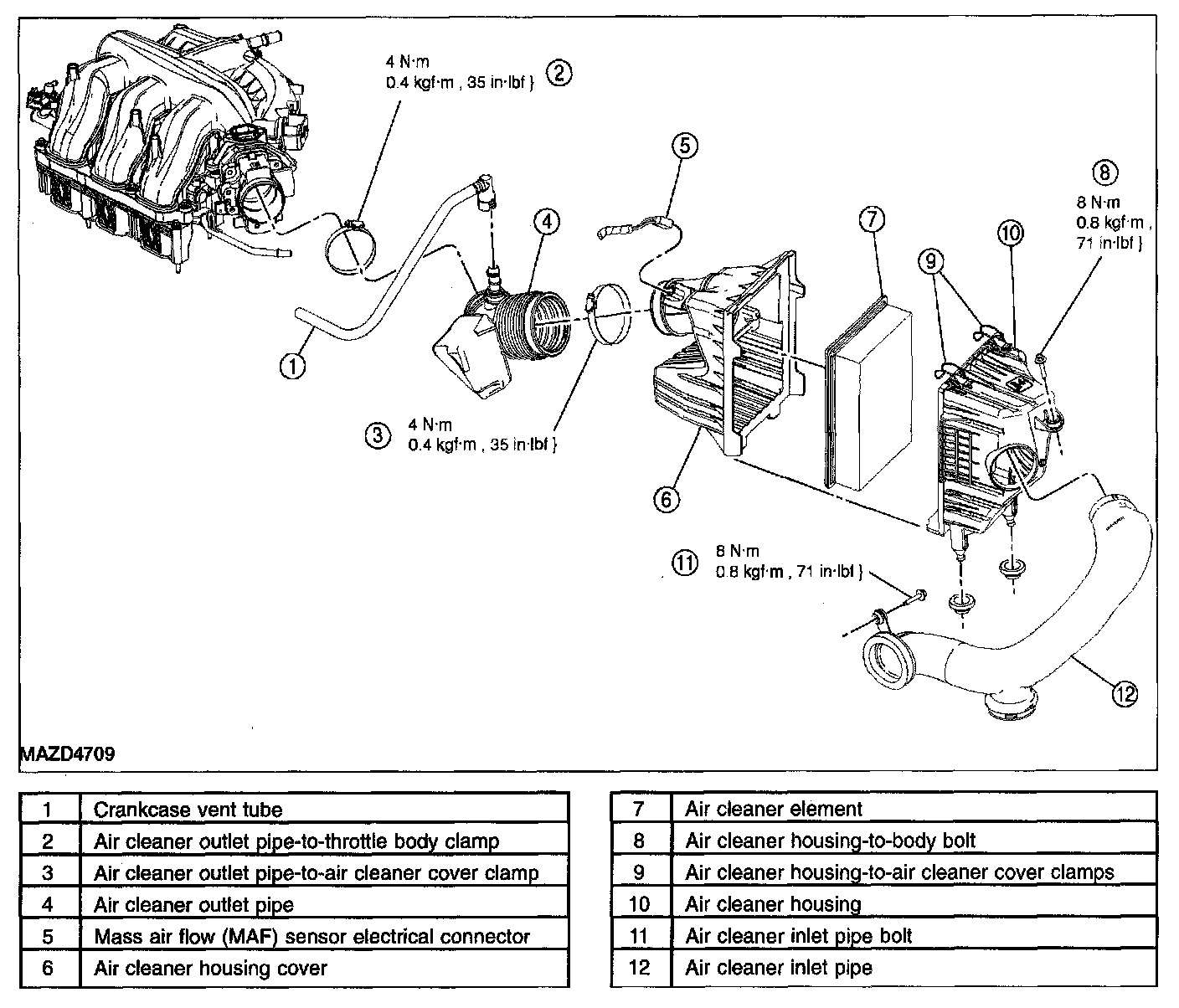

INTAKE AIR SYSTEM COMPONENTS - 3.0L (4V) EXPLODED VIEW

Intake Air System Components-3.0L (4V) Exploded View:






1. For additional information, see the procedures.
