Connecting Rod: Testing and Inspection

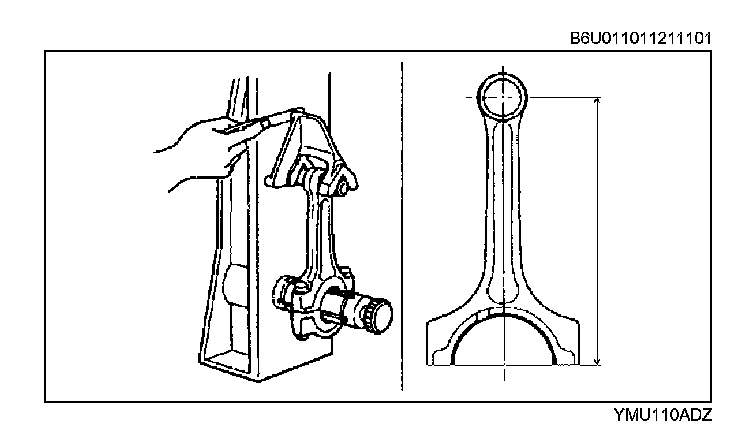

CONNECTING ROD INSPECTION 1.
Measure each
connecting rod for bending and distortion.
^
If not as specified, replace the
connecting rod.
Bending
0.038 mm (0.0014 in)max./25 mm (0.98 in)
Distortion
0.050 mm (0.0019 in)max./25 mm (0.98 in)
Center-to-center distance
138.06-138.14 mm (5.4355-5.4385 in)
