Piston: Testing and Inspection
PISTON INSPECTION 1.

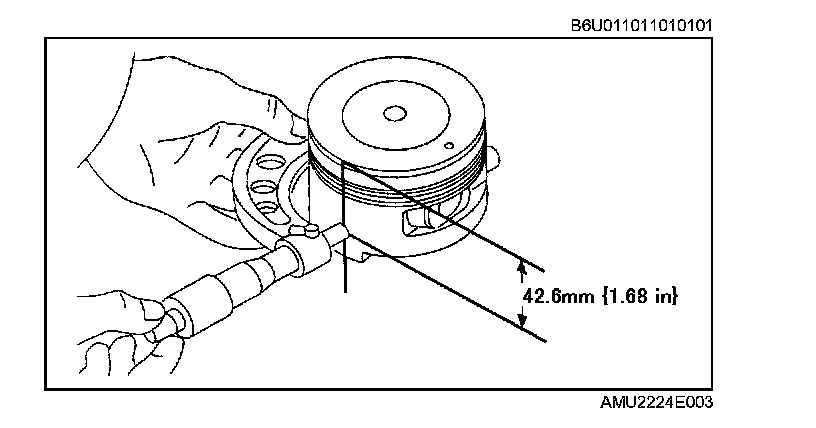

Measure the outer diameter of each
piston at a right angle (90°) to the piston pin, 42.6 mm (1.68 in) below the top of the piston.
^
If the
piston diameter is below the standard diameter, replace the piston.
Piston diameter
88.990-89.030 mm (3.5036-3.5051 in)
