Air Flow Meter/Sensor: Service and Repair

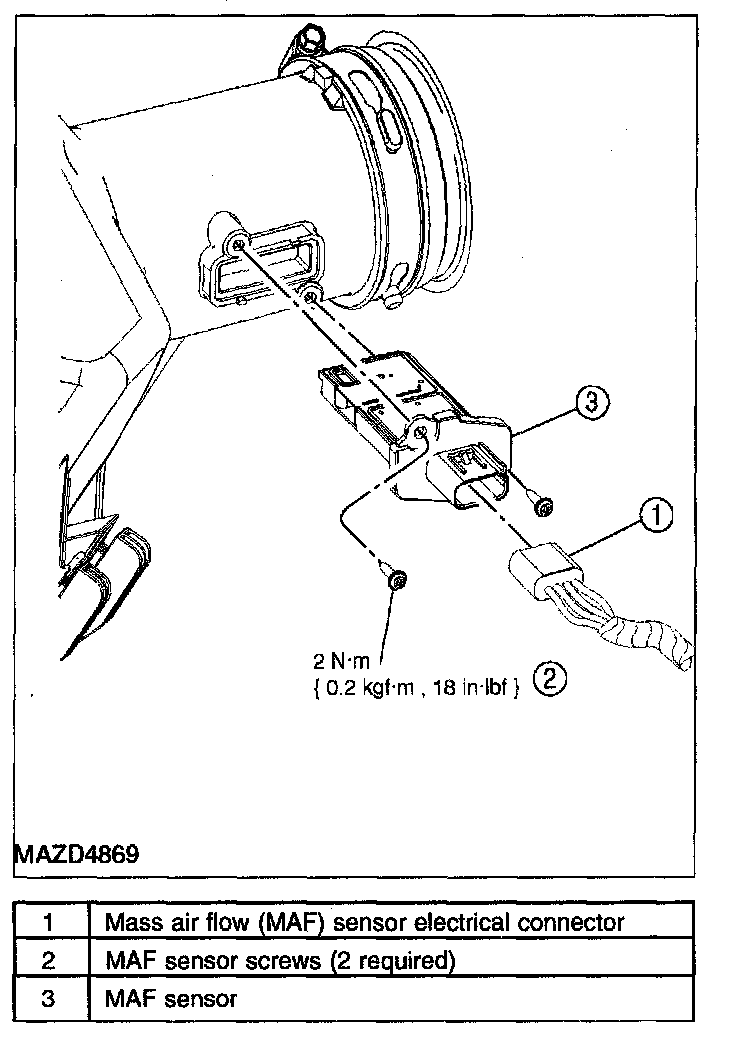

MASS AIR FLOW (MAF) SENSOR - 3.0L (4V) REMOVAL/INSTALLATION






CAUTION: The mass air flow (MAF) sensor electronics module and body are calibrated as a unit and must be serviced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.

1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Remove the 2 screws and the MAF sensor.
- To install, tighten to 2 N.m {0.2 kgf-m, 18 in-lbf}.

3. To install, reverse the removal procedure.
