DTC Table Immobilzer System

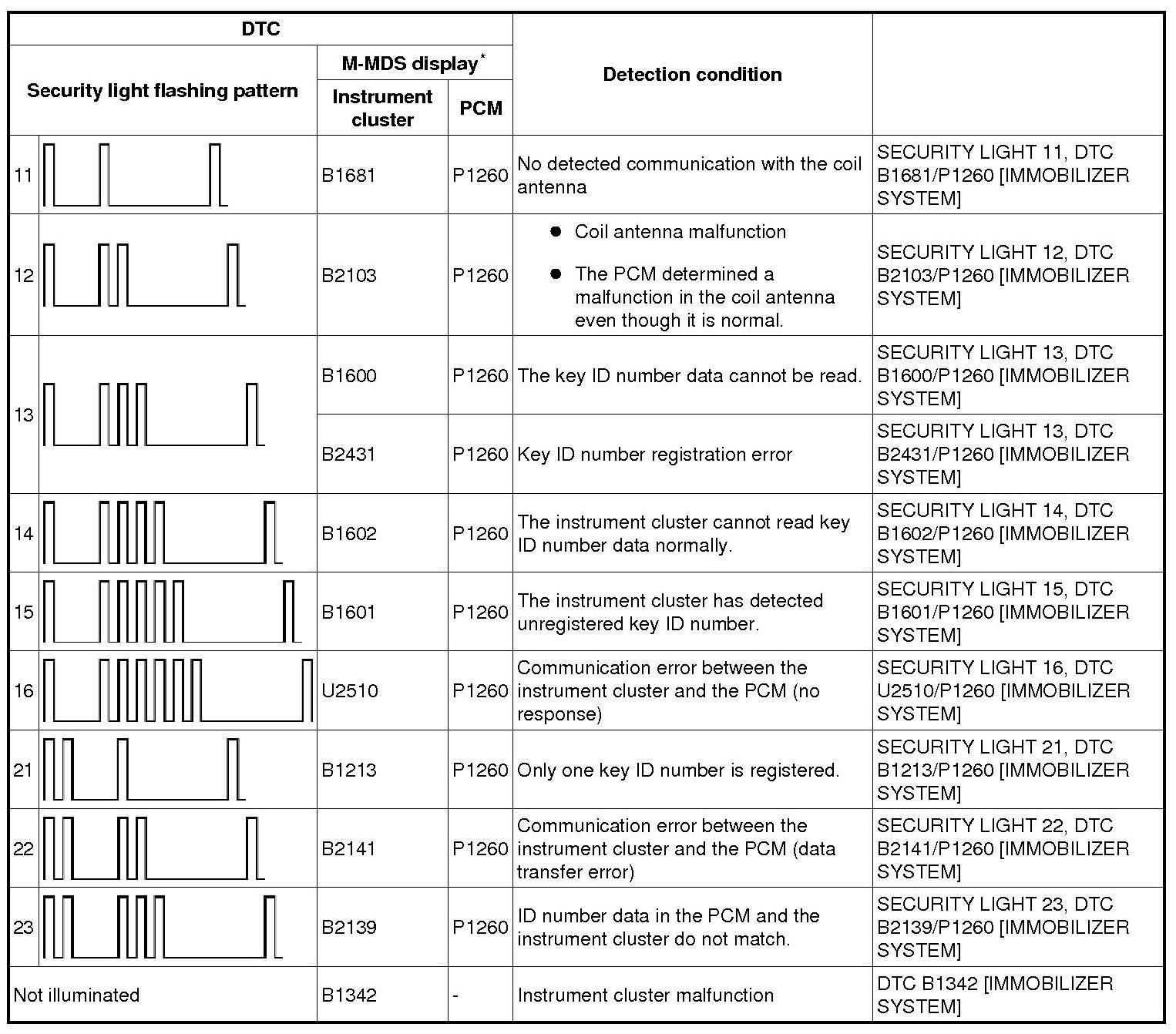

DTC TABLE [IMMOBILIZER SYSTEM]

DTC 11-DTC 23:

*
The letters at the beginning of each DTC are only displayed when using the M-MDS, and refer to the following: B= Body system, P= Powertrain system, U= Network communication system.
