Front Fender: Service and Repair




FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Windshield wiper arm and blade (See Windshield Wiper Arm And Blade Removal/Installation.)

b. Cowl grille (See Cowl Grille Removal/Installation.)

c. Front side turn lights (See Front Side Turn Light Removal/Installation.)

d. Front bumper (See Removal and Replacement.)

e. Front combination lights (See Front Combination Light Removal/Installation.)

f. Side step molding (Vehicle with the side step molding) (See .)

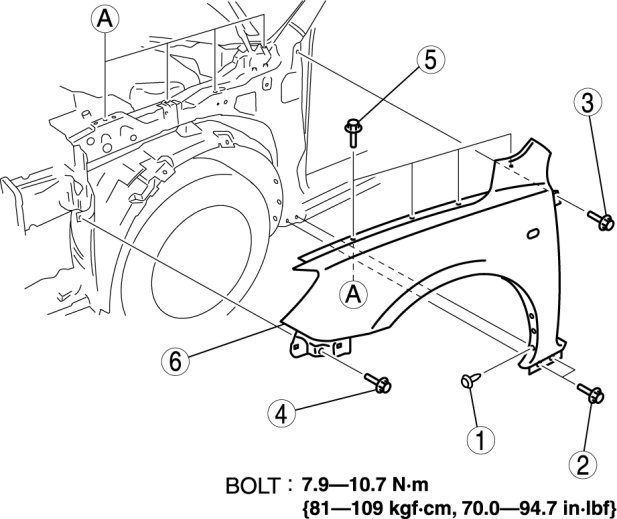

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
