Vacuum Brake Booster: Service and Repair




POWER BRAKE UNIT REMOVAL/INSTALLATION [LF, L3]

1. Remove the battery and battery tray. Removal and Replacement

2. Remove the master cylinder. Service and Repair

3. Remove the brake switch connector.

4. Remove the accelerator pedal. Service and Repair

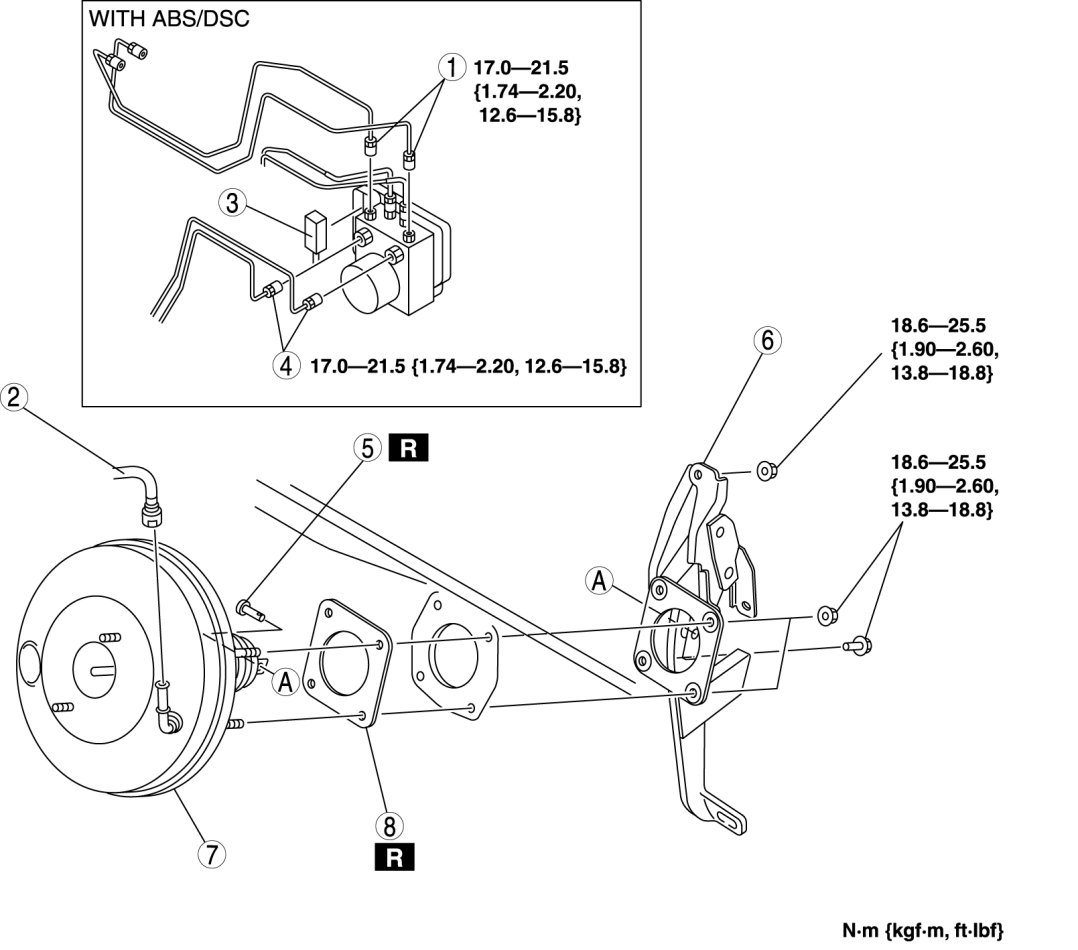

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

7. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. Service and Repair

8. After installation, inspect the brake pedal. Testing and Inspection










Brake Pedal Component Removal Note

1. Remove the brake pedal installation bolt and nuts.

2. Move the power brake unit toward the vehicle front.

3. Remove the brake pedal component.
