Cabin Ventilation Grille: Service and Repair
EXTRACTOR CHAMBER REMOVAL/INSTALLATION 1.
Remove the following parts:
a.
Trunk end trim
Trunk End Trim Removal/Installation b.
Trunk side trim
c.
Rear combination light
Service and Repair d.
Rear bumper
Removal and Replacement 2.

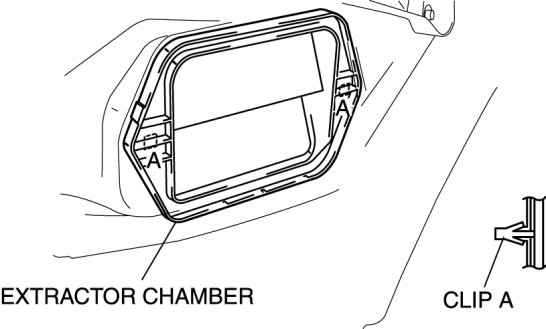

Detach clips A by squeezing them from inside the vehicle, and remove the extractor chamber from the body.
3.
Install in the reverse order of removal.
