Glove Box Lamp: Service and Repair




GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (Passenger's side) (See Front Scuff Plate Removal/Installation.)

b. Front side trim (Passenger's side) (See Front Side Trim Removal/Installation.)

c. Decoration panel (See Decoration Panel Removal/Installation.)

d. Glove compartment (See Service and Repair.)

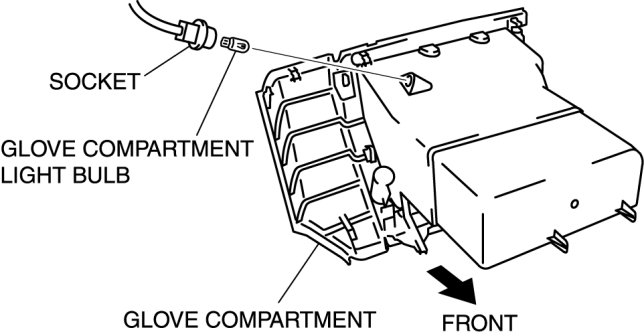

3. Remove the socket, then remove the glove compartment light bulb.






4. Install in the reverse order of removal.
