License Plate Lamp: Service and Repair

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the lens, then remove the license plate light bulb.






3. Remove the license plate light from the rear bumper.

4. Remove the trunk end trim. Trunk End Trim Removal/Installation

5. Remove the fasteners and slightly bend back the trunk side trim (RH).

6. Remove the fasteners and slightly bend back the trunk side trim (LH). (4 door)

7. Remove the service hole cover (LH). (5 door)

8. Remove the rear combination light. Service and Repair

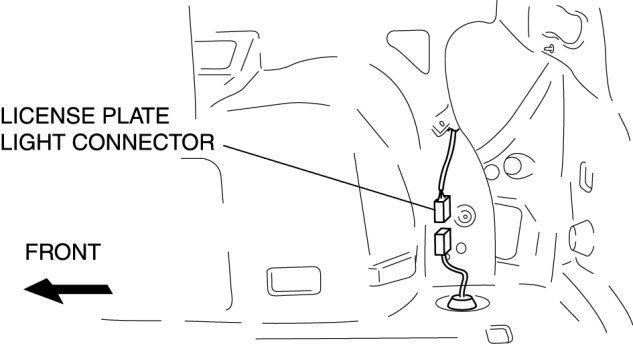

9. Disconnect the license plate light connector.






10. Remove the rear bumper. Removal and Replacement

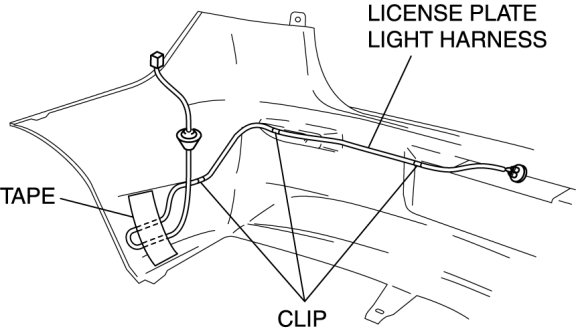

11. Detach the clips from the rear bumper.






12. Remove the license plate light harness and tape.

13. Install in the reverse order of removal.
