Windshield Washer Hose Removal/Installation




WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

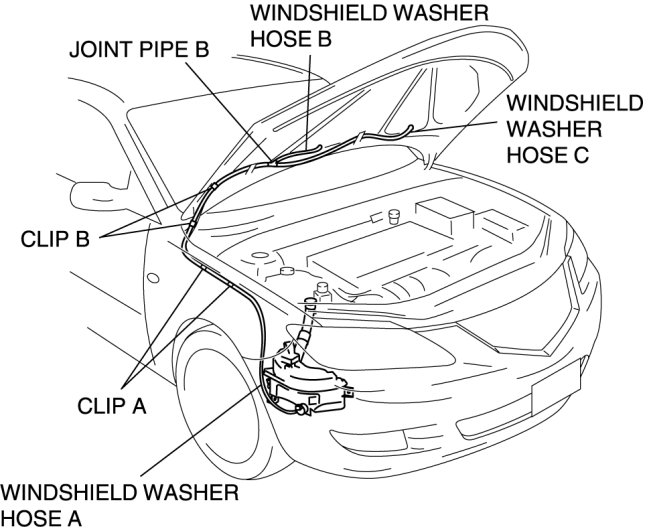

Except Mazdaspeed3

1. Remove the hood insulator. (See Service and Repair)

2. Slightly bend back the mudguard.

3. Disconnect joint pipe A.






4. Remove windshield washer hose A from clips A.

5. Remove clips B.

6. Disconnect windshield washer hose B from the washer nozzle.

7. Disconnect windshield washer hose C from the washer nozzle.

8. Disconnect joint pipe B, then remove windshield washer hose A, B and C.

9. Install in the reverse order removal.

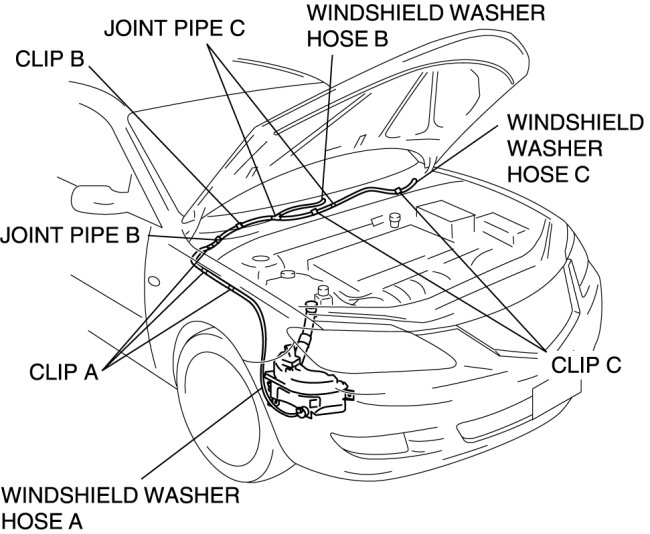

Mazdaspeed3

1. Remove the windshield wiper arm and blade Windshield Wiper Arm And Blade Removal/Installation

2. Remove the cowl grille Cowl Grille Removal/Installation

3. Disconnect windshield washer hose A from the washer tank.






4. Remove the windshield washer hose A from clips A.

5. Remove the joint pipe B.

6. Remove the clip B.

7. Remove the joint pipes C.

8. Remove the clips C.

9. Disconnect windshield washer hose B from the washer nozzle.

10. Disconnect windshield washer hose C from the washer nozzle.

11. Disconnect joint pipe B, then remove windshield washer hose A, B and C.

12. Install in the reverse order of removal.
