Energy-Absorbing Form Removal/Installation




ENERGY-ABSORBING FORM REMOVAL/INSTALLATION

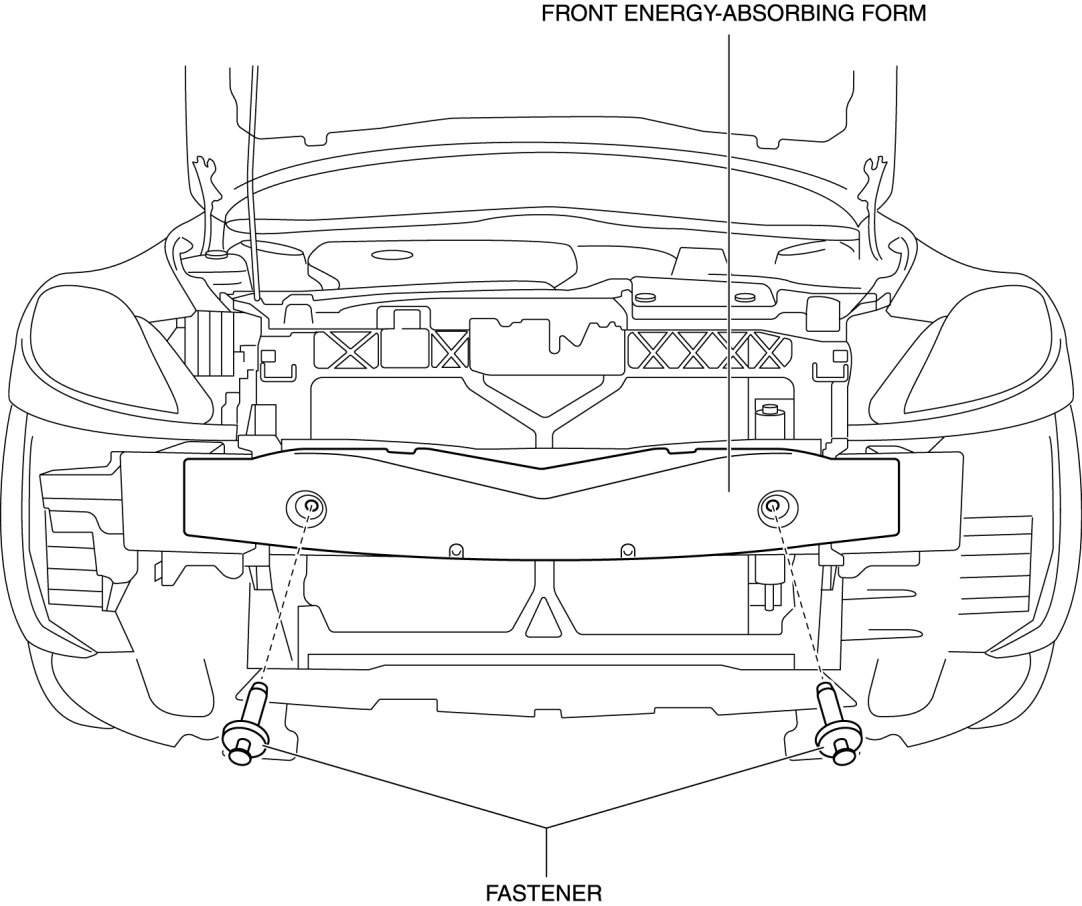

Front

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See Front Bumper Removal/Installation)

3. Remove the fastener.






4. Remove the front energy-absorbing form.

5. Install in the reverse order of removal.

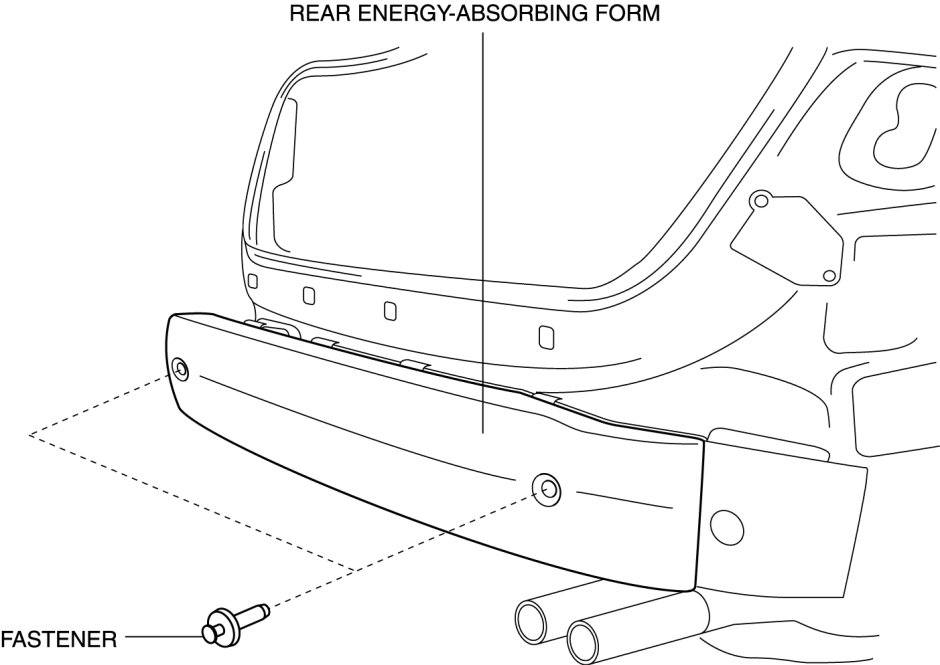

Rear

1. Remove the rear splash shield. Splash Shield Removal/Installation

2. Remove the rear combination light. Service and Repair

3. Remove the rear bumper. Rear Bumper Removal/Installation

4. Remove the fastener.






5. Remove the rear energy-absorbing form.

6. Install in the reverse order of removal.
