Water Pump: Service and Repair

WATER PUMP REMOVAL/INSTALLATION [L5]

WARNING:
- Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
- Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise 2.5 turns. Step back while the pressure escapes.
- When you are sure all the pressure is gone, turn the cap using the cloth, and remove it.

CAUTION:
- Parts for engines manufactured in Mexico and Hiroshima cannot be used interchangeably as the engine will not operate correctly resulting in a serious malfunction. To prevent this, when replacing parts refer to the 'VEHICLE IDENTIFICATION NUMBER (VIN) CODE' table below and verify the engine's place of manufacture before performing the servicing. (See Vehicle Identification Number (VIN) Code)

1. Disconnect the negative battery cable.

2. Drain the engine coolant. Service and Repair

3. Remove the plug hole plate. Service and Repair

4. Loosen the water pump pulley bolts before removing the drive belt.

5. Remove the drive belt. Service and Repair

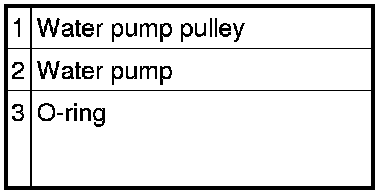

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

8. Refill the engine coolant. Service and Repair

9. Inspect for engine coolant leakage. Engine Coolant Leakage Inspection










O-ring Installation Note

1. Apply engine coolant to a new O-ring.

2. Install the O-ring.
