Component Tests and General Diagnostics




BLIND SPOT MONITORING (BSM) CONTROL MODULE INSPECTION

1. Remove the trunk end trim. Trunk End Trim Removal/Installation

2. Remove the rear seat cushion. Rear Seat Cushion Removal/Installation

3. Remove the rear side seat back. Rear Side Seat Back Removal/Installation

4. Remove the trunk side trim.

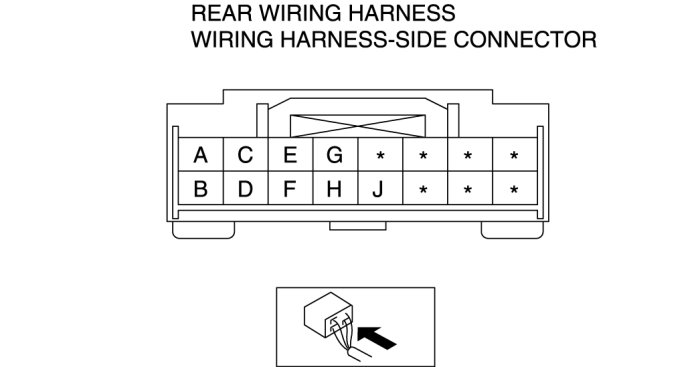

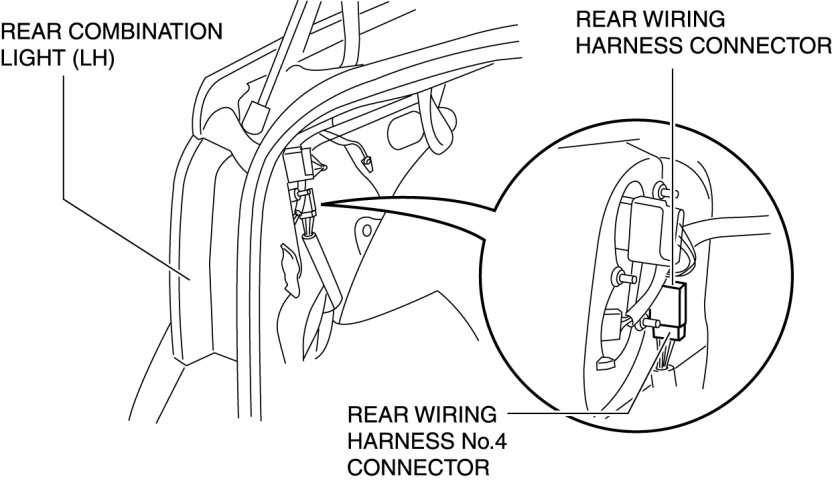

5. Measure the BSM control module terminal voltage using the rear wiring harness connector in the position shown in the figure.






NOTE:
- The BSM control module connector cannot be connected to a tester due to its water-resistance processing, therefore the rear wiring harness connector is used for measuring the terminal voltage.

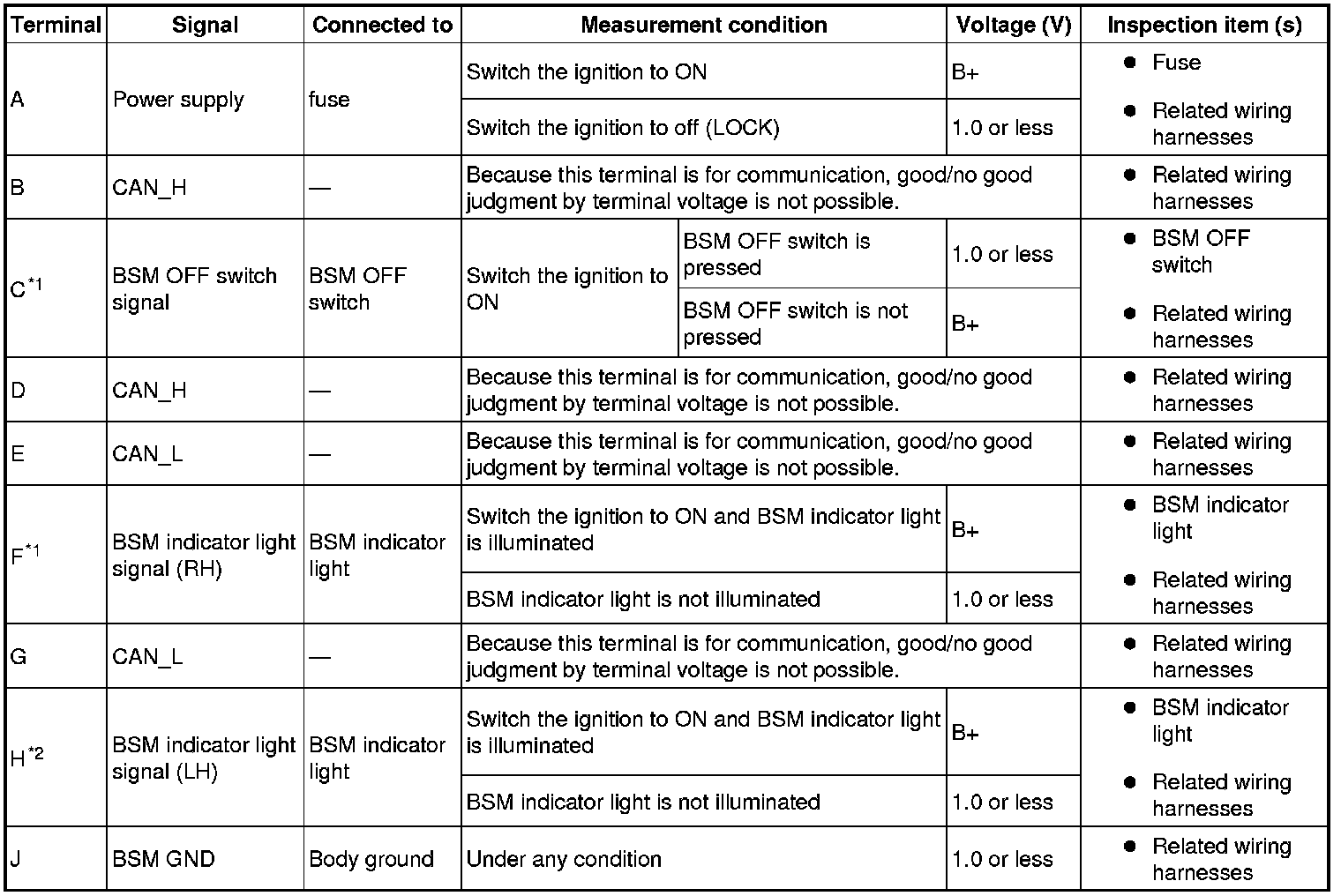

Terminal Voltage Table (Reference)






Terminal Voltage Table (Reference):





*1
BSM control module (RH) only
*2
BSM control module (LH) only

NOTE:
- Terminal voltage of both the left and right BSM control modules is equivalent
