Clockspring Assembly / Spiral Cable: Testing and Inspection




CLOCK SPRING INSPECTION

1. Disconnect the negative battery cable.

2. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

3. Remove the steering wheel. Steering Wheel And Column Removal/Installation [Without Advanced Keyless Entry And Push Button Start System] Steering Wheel And Column Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

4. Remove the column cover.

5. Remove the clock spring. Service and Repair

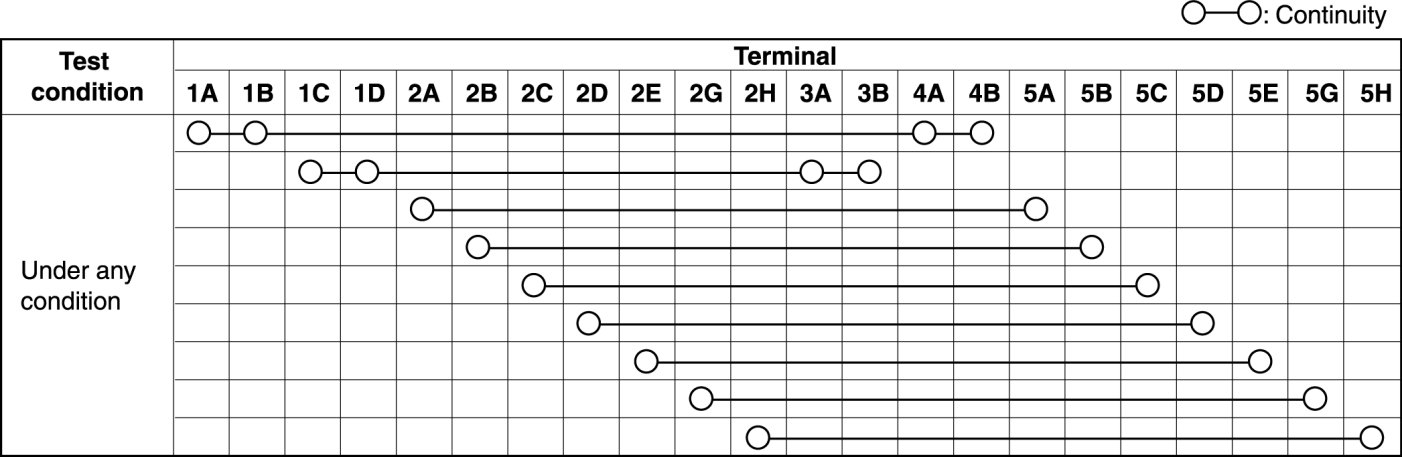

6. Verify that the continuity is as indicated in the table.

- If not as indicated in the table, replace the clock spring.

NOTE:

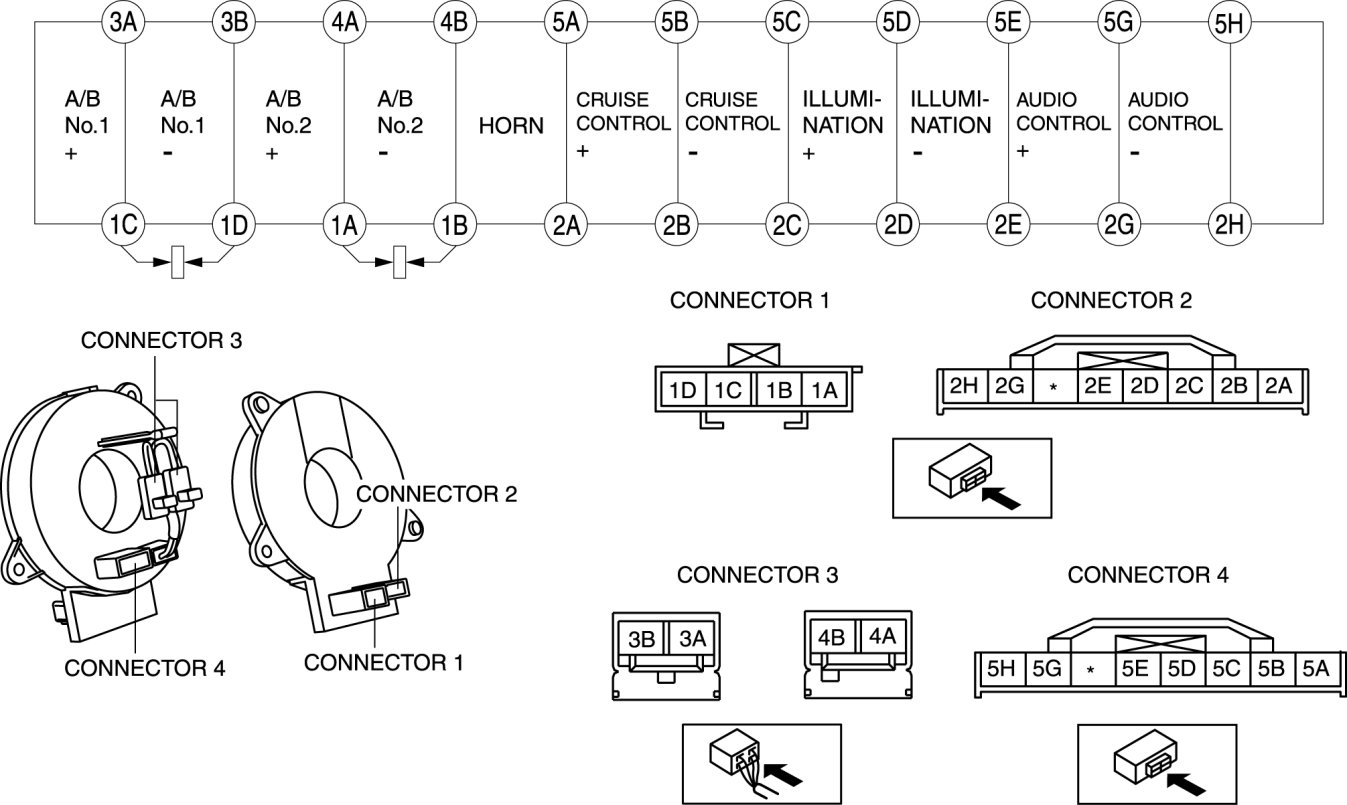

- When the vehicle-side connector for the clock spring is disconnected, terminals 1A, 1B, 1C and 1D are shorted to prevent unexpected operation (deployment) of the air bag module.
