Front Stabilizer Removal/Installation

FRONT STABILIZER REMOVAL/INSTALLATION

1. Drain the power steering fluid.

2. Remove the steering shaft cover. Steering Wheel And Column Removal/Installation [Without Advanced Keyless Entry And Push Button Start System] Steering Wheel And Column Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

3. Disconnect the steering shaft from the steering gear and linkage. Steering Wheel And Column Removal/Installation [Without Advanced Keyless Entry And Push Button Start System] Steering Wheel And Column Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

4. Remove the front mudguard. Service and Repair

5. Remove the aerodynamic under cover No.2. (L5) Aerodynamic Under Cover No.2 Removal/Installation

6. Remove the front pipe.(MZI-3.7) Service and Repair

7. Remove the transverse member. Transverse Member Removal/Installation

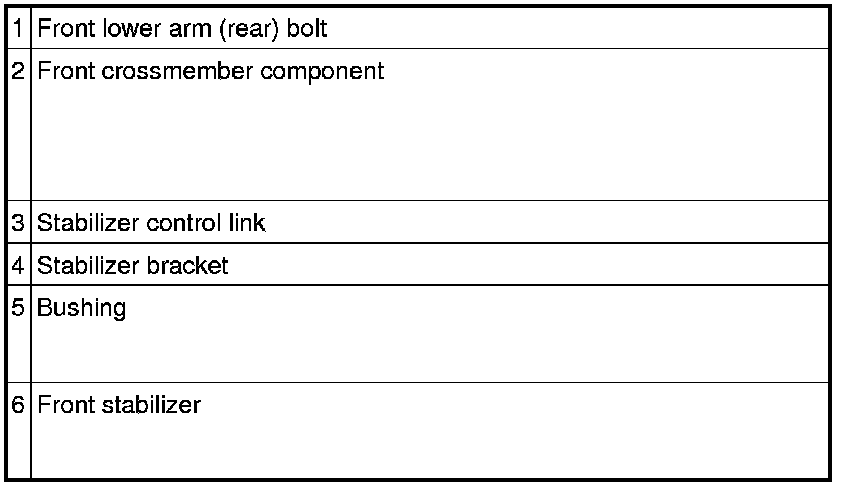

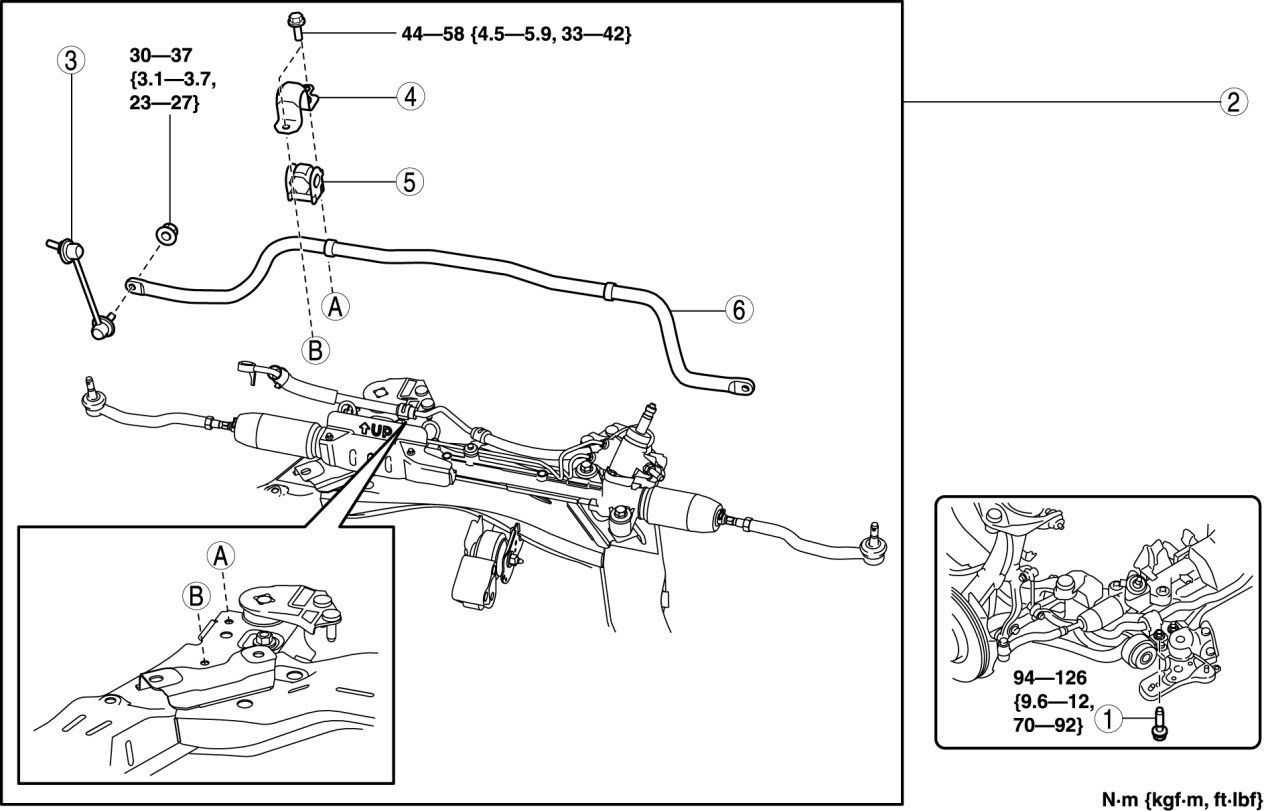

8. Remove in the order indicated in the table.

9. Install in the reverse order of removal.

10. Add the power steering fluid. Service and Repair

11. Inspect the front wheel alignment. Front Wheel Alignment

Front Stabilizer Installation Note

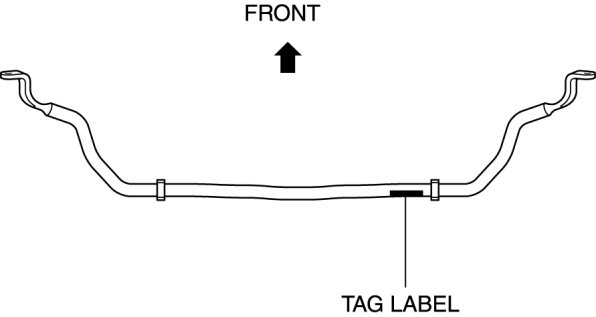

1. Install the front stabilizer so that the identification mark faces toward the right side of the vehicle.

Bushing Installation Note

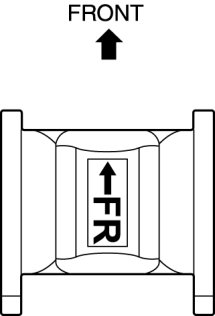

1. Install the bushing so that the arrow faces toward the front of the vehicle.
