AUTOMATIC TRANSAXLE SHIFT MECHANISM INSPECTION

Selector Lever Inspection

1. Switch the ignition to ON.

2. Shift the selector lever to each position and inspect the selector lever.

- If there is any malfunction, adjust the selector cable. Adjustments

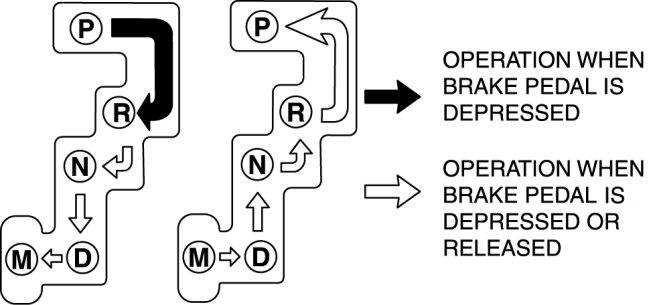

a. Verify that the selector lever can be operated as shown in the figure.






b. Verify that the selector lever can be operated smoothly and moderately.

Shift-Lock System Inspection

1. Shift the selector lever to the P position.

2. Switch the ignition to ON.

3. Inspect the shift-lock system.

- If there is any malfunction, inspect the shift-lock solenoid. Shift-Lock Solenoid Inspection

a. Verify that the selector lever cannot be shifted from P to R position when the brake pedal is released.

b. Verify that the selector lever can be shifted from P to R position when the brake pedal is depressed.

Key Interlock System Inspection

1. Switch the ignition to ON.

2. Inspect the key interlock system.

- If there is any malfunction, inspect the interlock solenoid. Key Interlock Solenoid Inspection

a. Verify that the ignition cannot be switched to off when the selector lever is not in the P position.

b. Verify that the ignition can be switched to off when the selector lever is in the P position.
